Yamaha TF1 16CH Digital Mixer

Compact, portable, and even rack mountable, the TF1 offers impressive capability and versatility for smaller systems.

Design Meets Intuition

Yamaha has always made it a mission to stay in touch with the needs of sound engineers world wide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user’s intuition even freer rein. TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engin eers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning pro fessional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications.

TouchFlow Operation™ – Smooth, Natural Control Flow Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic™ interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.

• 17 motor faders (16 channels + 1 master)
• 40 input mixing channels (32 mono + 2 stereo + 2 return)
• 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
• 8 DCA groups with Roll-out

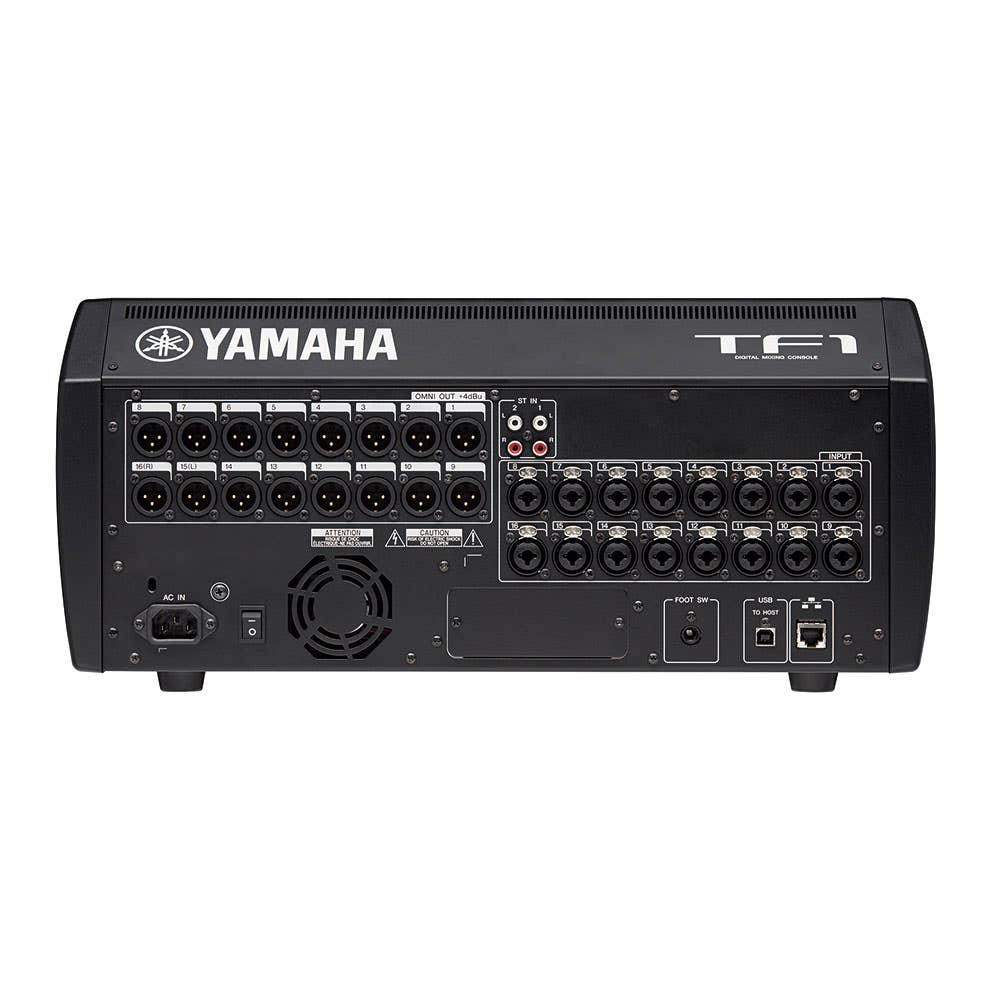

• 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
• 16 analog XLR outputs
• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
• 1 expansion slot for NY64-D audio interface card




Outline

General specifications

Analog input characteristics

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

Analog output characteristics

*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.

Digital input/output specifications

Control I/O specifications
