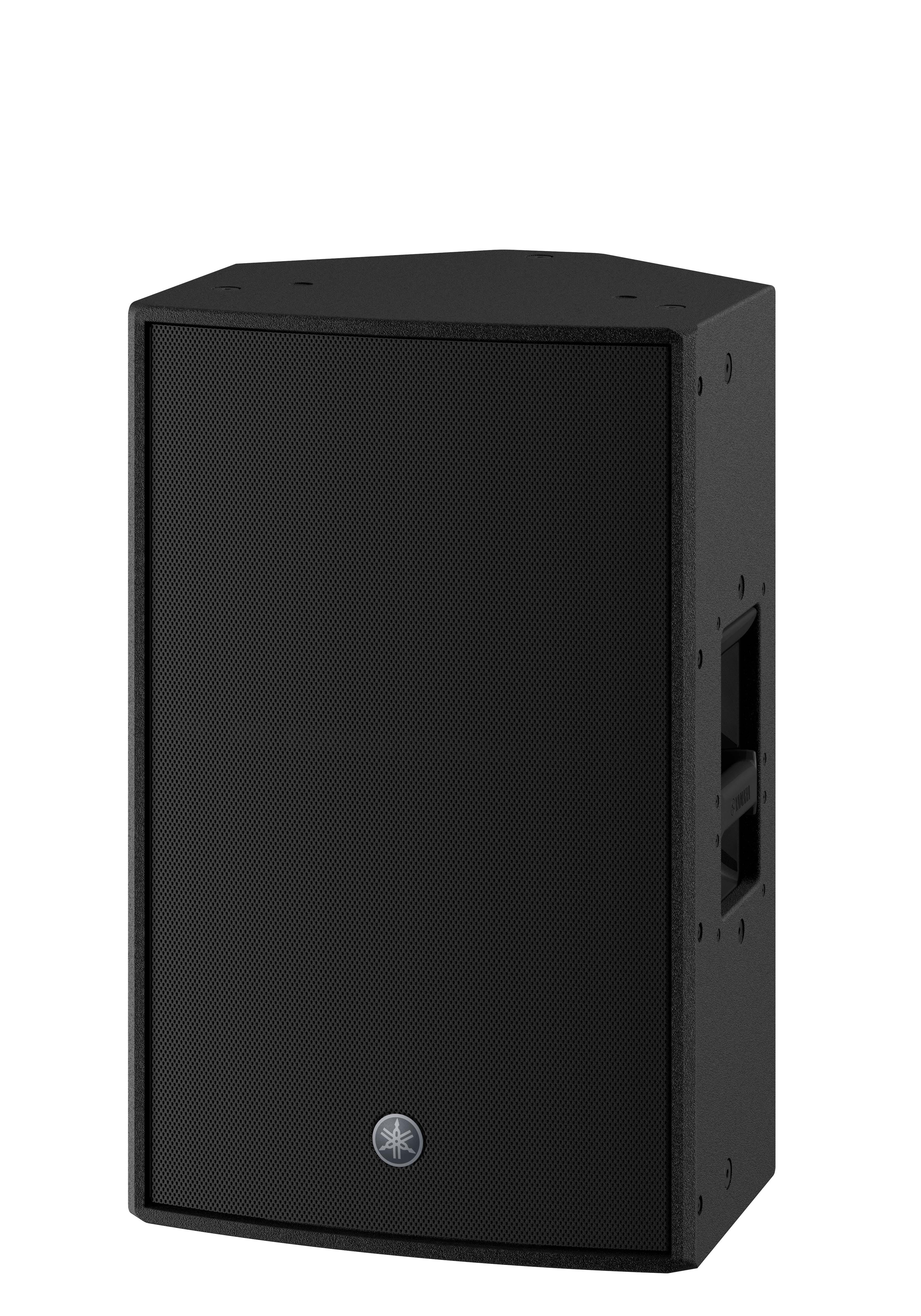

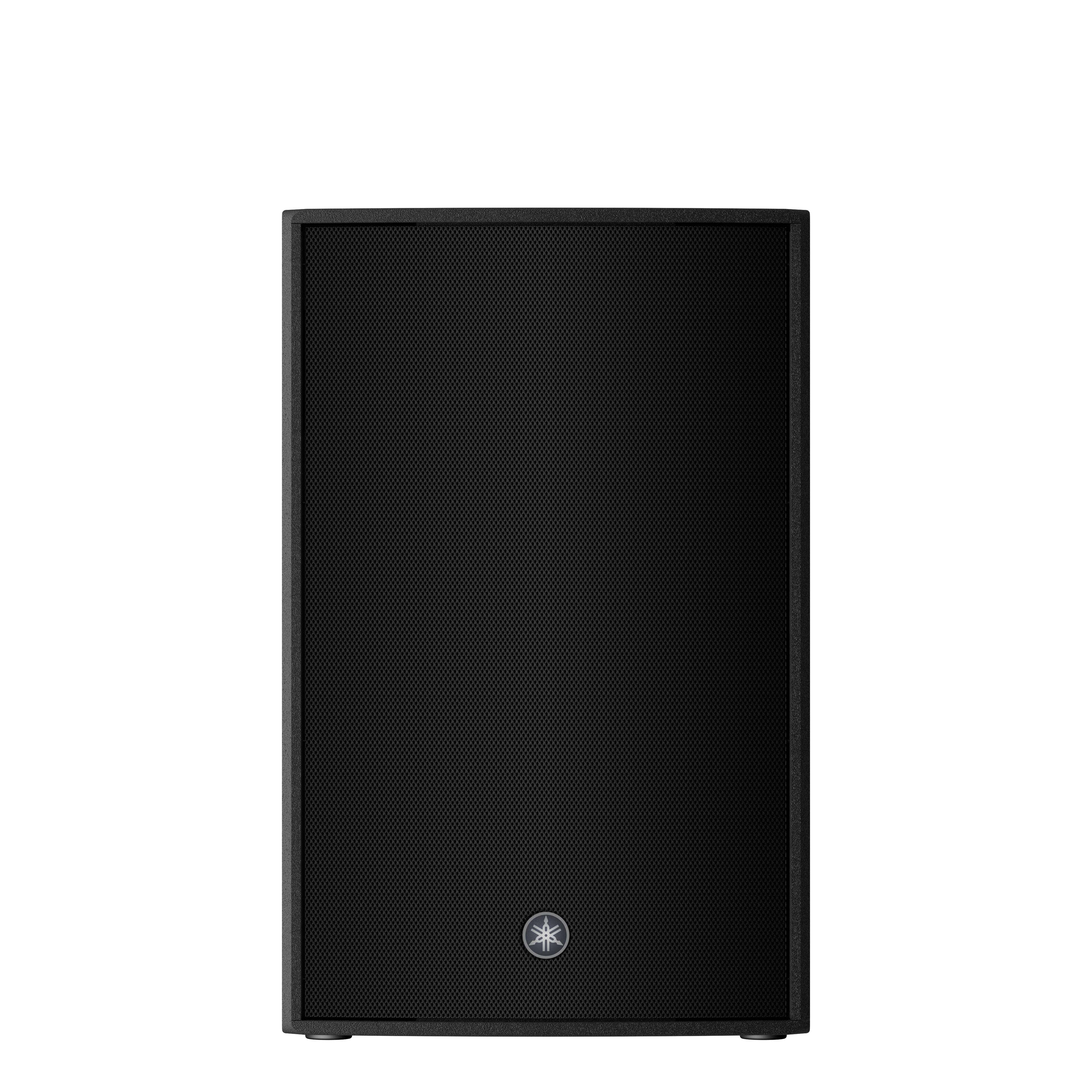

Yamaha DZR12 12" Powered Loudspeaker

DZR-SERIES POWERED LOUDSPEAKERS

Best-in-class SPL performance, sophisticated DSP processing, unrivalled low-frequency sound reproduction - the new DZR delivers on all fronts, realising a truly professional sound with a level of power that belies its compact, lightweight design. The durable plywood cabinets feature a LINE-X coating with extremely high damage resistance to protect against scratches and wear. High power output woofers are equipped with a best-in-class 3” voice coil magnet that delivers well-defined, solid bass with very low distortion, while the 2” tweeters use a titanium diaphragm to deliver smooth top-end frequencies via rotatable horns. On-board DSP offers advanced signal processing and protection, accessible via an easy-to-read LCD panel.

The DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

DZR12

• 2-way powered loudspeaker with a 2” HF and a 12" LF
• Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s sound engineering demands
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR12)
• Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
