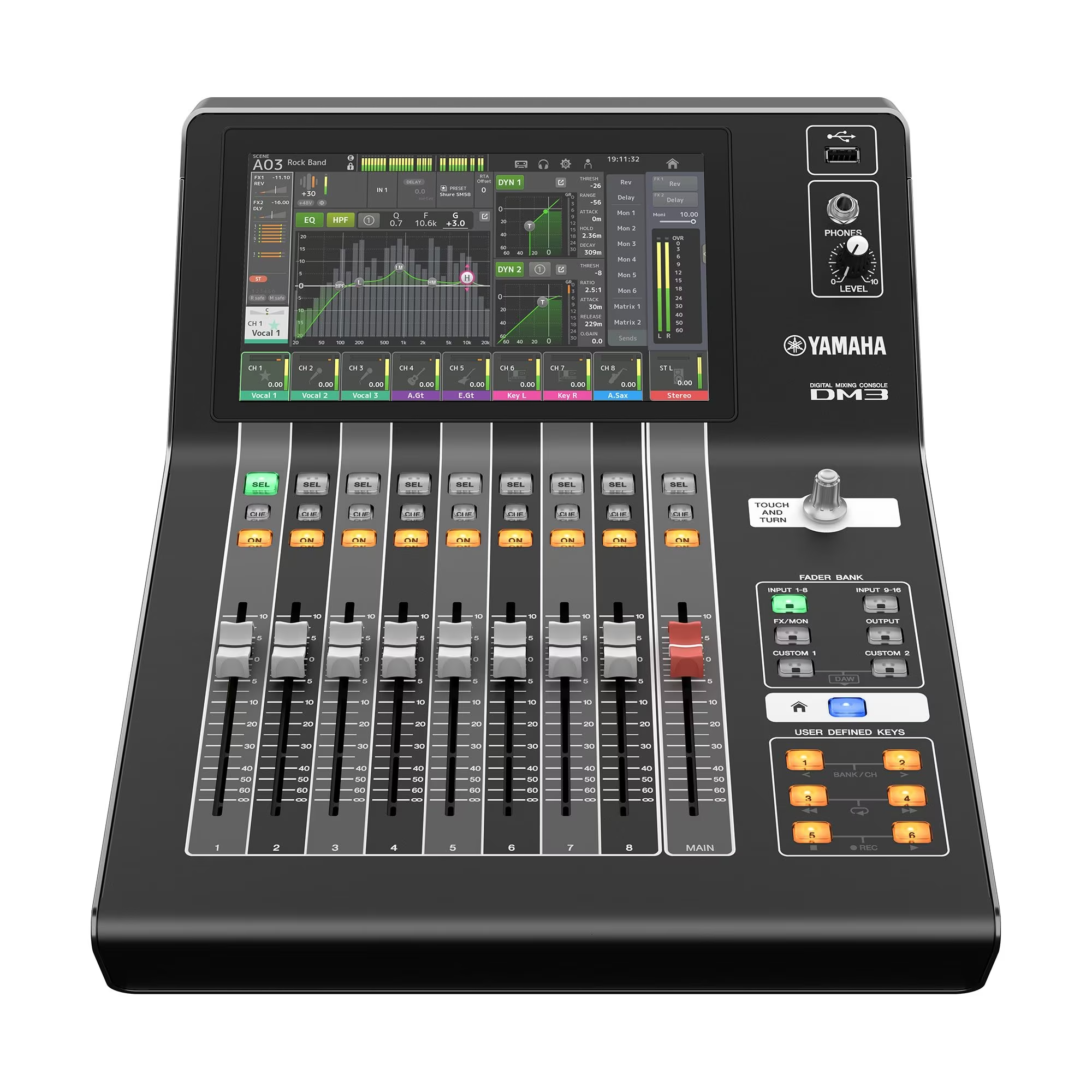

Yamaha DM3 Standard Digital Mixing Console (DM3S)

The portable DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.

• 8 + 1 fader configuration
• 9-inch multi-touch screen
• Input mixing channels: 16 mono + 1 stereo + 2 FX return
• Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)

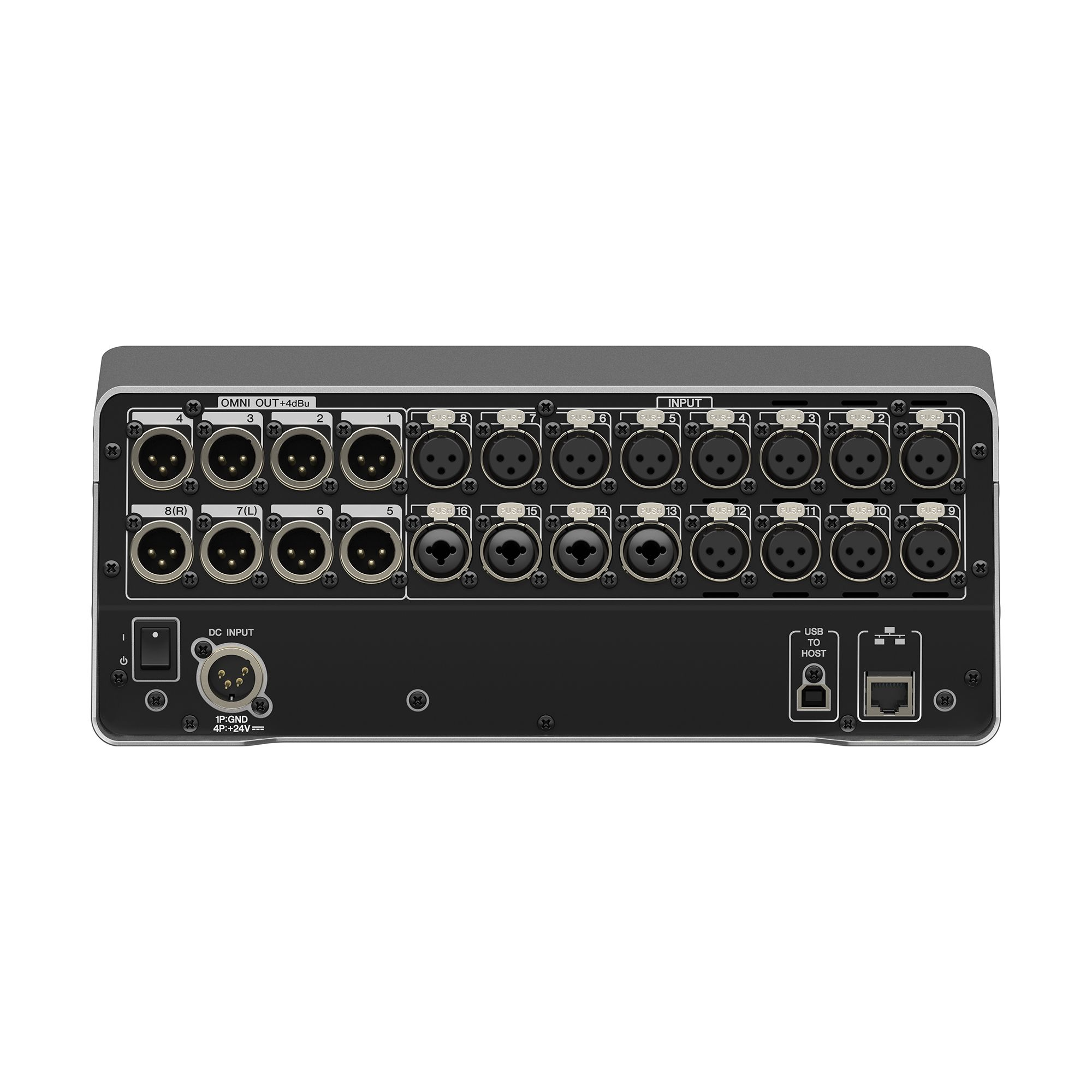

• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
• USB: 18 inputs, and 18 outputs
• 8 DCA groups with Roll-out
• 18 Effects, and GEQ on Mix 1-6 and Stereo channels
• Sampling rate: 48kHz/96kHz
• Dimensions (W x H x D): 320 mm × 455 mm × 140 mm
• Net weight: 6.5 kg

Raising the bar for compact digital mixers

In 1987 Yamaha released the first ever digital mixer, the DMP7, ushering in a new era of consoles that boasted greater functionality in a more compact design than their analog counterparts. Decades later the DM3 Series is setting a new standard for compact console performance, featuring versatile capabilities and extreme portability that make it an invaluable tool for a wide range of applications and environments.

The DM3 Series comprises two models, the DM3 Standard and the DM3—the first compact console to be fully compatible with Dante technology, allowing for faster and easier setup with multiple devices. Both consoles feature a multi-language user interface that can be configured to make operation simple and trouble-free for users with different backgrounds and varying skill levels.

Equally at home in a live performance venue or your home studio, it’s easy to imagine taking a DM3 Series console to a gig, recording and streaming the audio, and then taking it home for editing as part of your DAW setup. Alternatively, you could use it as a main mixer for a small performance one day, and as a sub-mixer for live streaming the next—the possibilities are endless.

A legacy of sonic purity

The ideal starting point for any audio engineering endeavor is transparent, uncolored sound. All Yamaha mixers are built on that philosophy, with the goal of allowing engineers to capture the on-stage sound accurately, without coloration, and then add creative touches as required.

Capable of sampling rates as high as 96 kHz despite its compact size the DM3 Series continues this legacy of sonic purity, offering you the perfect starting point for mixing, recording, live streaming, or even installed applications.

Simple. Intuitive. Powerful.

Perhaps the most significant advantage of a digital console is the ease of operation and accessibility of powerful functions and features that would otherwise require a higher level of user experience as well as more outboard gear to actualize in an analog setup. The DM3 Series exemplifies a “less is more” design philosophy, utilizing a 9” touchscreen and a single Touch & Turn knob for managing most of the console’s operations, resulting in a user experience reminiscent of a smartphone.
