Warwick Rockboard RPA 100 Power Attenuator

The Rockboard RPA100 Power Attenuator allows you to tune your amp to your favorite sound - including high-gain and power amp distortion - and then reduce the volume level on the speaker to a level acceptable for the stage or rehearsal room without changing the sound of the amp. Tube amplifiers in particular benefit enormously from such a way of working. The Rockboard RPA 100 Power Attenuator can be used to "tame" amplifiers with an output power of up to 100 watts. With a choice of 4, 8 and 16 ohm connectors, your amp will always see the correct speaker impedance, regardless of what type of speakers are connected to the attenuator. You can even use the amp without a speaker and listen to the signal through headphones. In addition, the RPA 100 Power Attenuator offers the possibility to forward the signal from the power amplifier of your amp via DI OUT or LINE OUT to mixer or audio interface applications, or via the headphones

Power Attenuator, Power Reducer
Maximum output power of the amplifier 100 watts

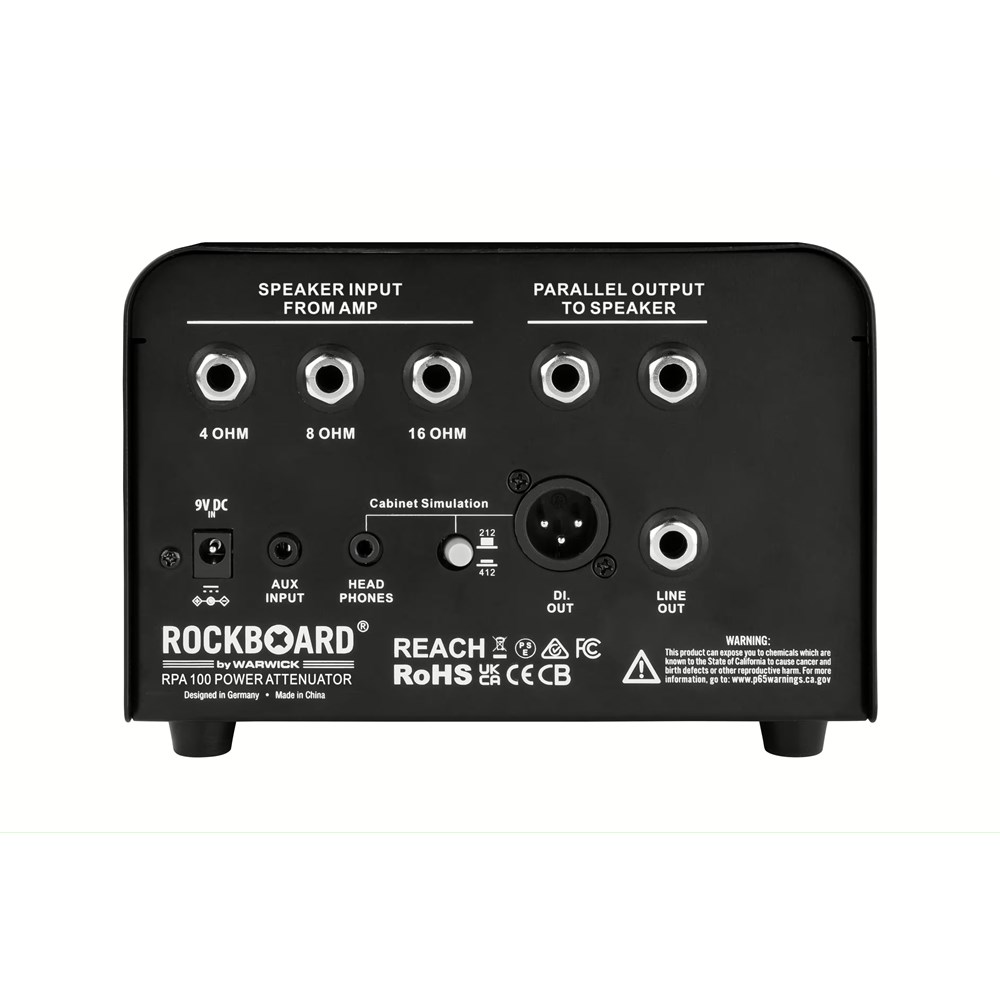

3 x separate inputs for 4, 8 or 16 ohms
1 x 3.5mm AUX input
2 x 6.3 mm speaker outputs (parallel)
1 x 6.3 mm line-level output
1 x 3.5mm headphone output
1 x XLR-DI output
1 x volume control on the speaker
1 x Control for Level at Line Level Output
1 x On/Off Switch for Speaker Simulation
1 x switcher for speaker simulation 2x12" or 4x12" (based on a "V30/SM57" combination)
1 x 9 VDC, 2.1 x 5.5 mm barrel plug, negative pole at center contact, input voltage for operation with headphones / DI / line outputs
Power supply via optional 9V DC power supply, 2.1 x 5.5 mm barrel plug, polarity (-) inside
1 x Fan
1 x LED for overload indication
Dimensions (L x W x H) 180 x 160 x 125 mm (incl. feet and regulator)
