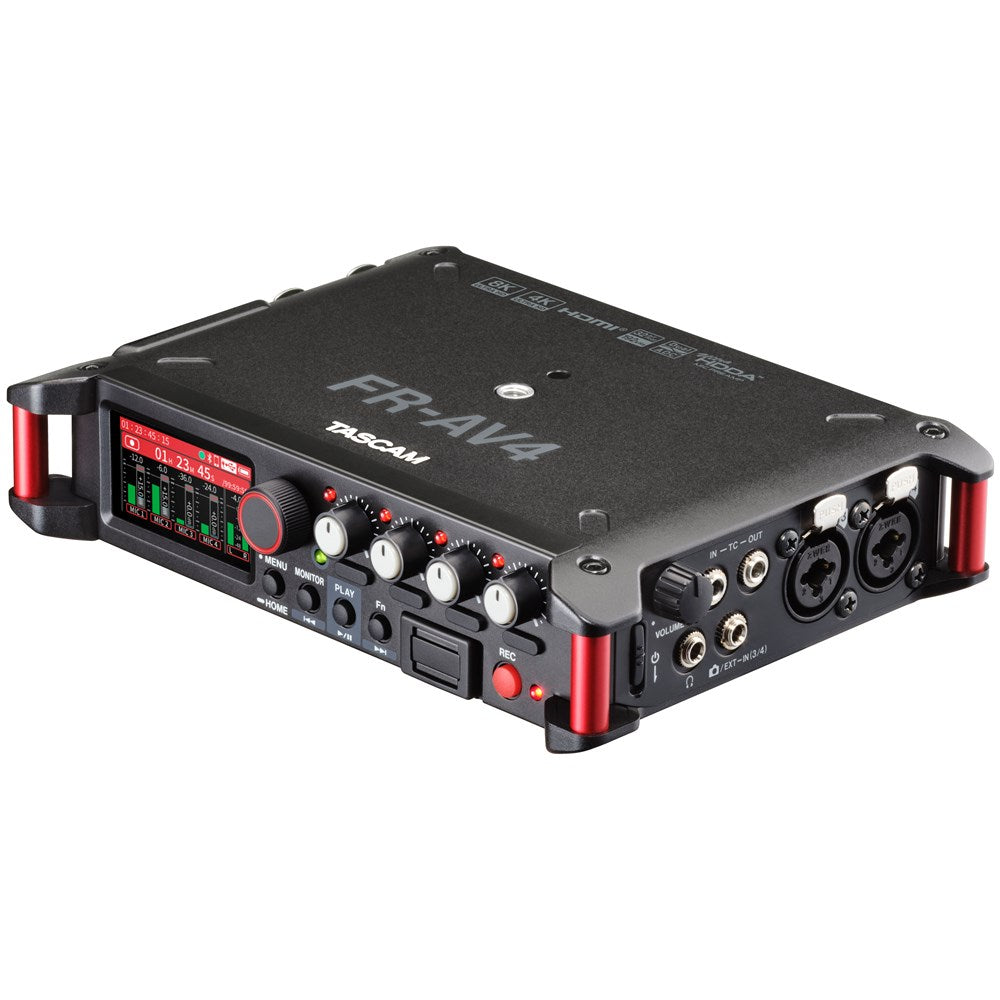

Tascam FR-AV4 Linear PCM Field Recorder

Professional-Grade Audio Fidelity in Any Environment
Dual AD converters and 32-bit float recording, capture every detail with over 133dB of dynamic range and zero clipping. Each of the four XLR/TRS combo inputs features low-noise TASCAM Ultra HDDA preamps (EIN -127dBu), delivering pristine clarity - even in the most unpredictable environments.

Industry-Leading Recording and Mixing Technology
Record a full multi-mic setup with confidence. The FR-AV4’s built-in mixer offers 4-in/2-out flexibility while simultaneously capturing all four channels - plus a stereo mix - for 6-track recording directly to SDXC media.

Stay in Sync, Wherever You Shoot
The FR-AV4’s built-in timecode generator ensures solid sync across your entire setup—no additional gear required. It offers a wide range of timecode sync options, including HDMI I/O, dedicated 3.5mm TC I/O, a 3.5mm camera TC out, and wireless sync with Atomos via Bluetooth (optional AK-BT2 adapter required). With these features, the FR-AV4 integrates seamlessly into any video workflow.

Rugged, Portable and Production Ready
Tough enough for demanding shoots, but compact enough for small mobile setups, the FR-AV4 is ideal for creators on-the-go. Its lightweight aluminum chassis is built to follow wherever your project leads you - be it in the studio, on location, or in the field.

Pro-Grade 32-Bit Float Audio Interface
The FR-AV4 doubles as a 6-in/2-out USB-C audio interface for Mac, Windows, iOS and Android devices - delivering the same massive dynamic range and no-clip recordings you get on location.

Shoot Smarter with HDMI-Based Sync
Works with Blackmagic, Canon, Fujifilm, Nikon, Panasonic, Sony, and many other cameras via HDMI, syncing audio and video with precision using a shared master clock and timecode. Record trigger functionality allows you to start and stop audio recording directly from a supporting camera - no extra steps, no worry of missed takes. With full 4K/8K video pass-through and embedded multi-channel audio support, the FR-AV4 effortlessly integrates with monitor recorders such as Blackmagic and Atomos. Need even more channels? Expand your setup with a second unit via HDMI for up to eight simultaneous inputs.

* Camera clock sync (Patent No. 6547550)、HDMI Audio Embedded (Patent No. 6586811)、HDMI Cascade (Patent No. 6485271)

Sync FR-AV4 with a Camera via HDMI
Simply connecting an FR-AV4 to a camera via HDMI enables precise video and audio synchronization. The FR-AV4 can automatically start and stop recording in response to the camera's operation.

Video and Audio Embedded via HDMI
4 channels plus a stereo mix are recorded on the FR-AV4. The 4K/8K video signal passes through the FR-AV4 and is recorded on the monitor recorder. In addition, the FR-AV4 allows the camera's audio to pass through and be recorded as part of the multi-track audio on the monitor recorder.

Cascade Connection via HDMI
Connecting multiple FR-AV4 units via HDMI enables cascade connection. This allows clock synchronization across units and makes it possible to start and stop recording from the first unit in the chain.

Wireless Audio Monitoring
With the optional AK-BT2 Bluetooth adapter, the FR-AV4 lets users wirelessly monitor source audio. Wired and wireless outputs can be used simultaneously, each with independent volume control, making it easy for multiple users to monitor headphones or speakers at the same time.

Features at a Glance

Key Features
133dB wide analog dynamic range with dual AD converter and 32-bit float recording
Ultra-low noise preamps (Ultra HDDA / EIN -127dBu) on all four XLR/TRS combo inputs ensure crystal-clear sound capture
Mix up to four inputs to two outputs using the built-in mixer
Record six tracks (four tracks + stereo mix) to an SDXC card
Built-in timecode generator, HDMI and 3.5mm stereo mini jack Timecode in/out, USB out and Atomos Bluetooth sync *
Enables precise AV sync via HDMI clock, along with cascade and rec trigger control, supporting 4K/8K video pass-through
A portable, lightweight, and slim design—ideal for portable use, mobile recording, and studio production
Wireless audio monitoring *
App control via TASCAM RECORDER CONNECT *

Additional Features
Selectable recording formats to suit your project (24-bit/ 32-bit float, 48 / 96/ 192 kHz)
6-in/2-out USB-C audio interface (24-bit / 32-bit float)
Monitor Select menu allows quick and easy routing
1.9-inch LCD touchscreen and an intuitive jog wheel for easy operation
A function key that instantly recalls your preferred function
Built-in low-cut filter, EQ, limiter, and noise gate
Input and output delay functions [0–300 msec]
Power options include four AA batteries, USB mobile battery, or optional AC adapter (PS-P520U)
High accuracy TCXO for Jam Sync and time code generation
Supports ambisonics audio recording in A-format / B-format (AmbiX, FuMa)
Free TASCAM RECORDER CONNECT app for iOS, iPadOS, and Android allows you to control up to 5 units *
Automatic file closing function to prevent the loss of recorded data if the batteries run out
3.5mm TRS CAMERA/EXT input (MONO/ST) with plug-in power (+2.5V/+5.0V)
3.5mm stereo CAMERA/TC/LINE out
3.5mm stereo headphone out
Built-in tone generator for easy level matching between devices
Camera screw mount designed for use with camera rigs
Includes a BH-4AA battery holder (additional BH-4AA available for quick and easy battery swaps)
* Requires optional Bluetooth adapter "AK-BT2"
