Tascam DR-40XP 4ch 32-bit Float Portable Recorder

The DR-40XP is a versatile 4ch multi-track portable field recorder for musicians, video creators, and field recordists. Featuring adjustable stereo microphones, ultra-low noise HDDA mic preamps, XLR/TRS inputs with phantom power, and 32-bit float / 96 kHz recording, it delivers clean, clip-free audio in any environment. Long battery life and USB-C audio interface functionality make it ideal for recording and production in any situation.

From Performance to Production, Anywhere
Capture everything from acoustic guitar, piano and vocals, strings and brass, orchestras, to DJ sets, band live shows and rehearsals, lessons, competitions and music production with professional-level sound quality. The DR-40XP features HDDA mic preamps, four-channel recording, overdub and overwrite functions, reverb effects, and a built-in tuner. Connect directly to your iPhone or laptop via USB-C and use it as an audio interface to start composing instantly in your favorite DAW.

Professional Audio That Elevates Your Video
Designed for video creators, YouTubers, and vloggers, the DR-40XP features adjustable stereo microphones with X-Y mode for interviews and vlogs, and A-B mode for capturing immersive ambience in live and on-location scenes. XLR/TRS inputs support external shotgun microphones, while improved clock accuracy, a slate tone for audio-video sync, and a 3.5 mm stereo line output help take your video production to the next level.

Built for Field Recording—Wherever Sound Takes You
Compact and portable, the DR-40XP offers up to 18 hours of battery life with built-in microphones that handle up to 125 dB SPL, capturing everything from subtle birdsong to loud aircraft and vehicle noise. With 32-bit float / 96 kHz recording, it delivers clean, distortion-free audio, while dual external inputs with +48 V phantom power support flexible, professional field recording setups.

Pristine Audio, Every Take
Equipped with TASCAM’s HDDA microphone preamps, the DR-40XP features external XLR/TRS combo inputs with an EIN of –126 dB, delivering exceptionally clear, low-noise audio performance.

Pristine Audio, Every Take
Worry-Free Recording Formats
With 32-bit float recording, your audio stays clean, detailed, and free from distortion—without the need to worry about input level settings. Multiple recording formats are supported, including 32-bit float, 24-bit, and 16-bit WAV at 96 kHz, 48 kHz, or 44.1 kHz, as well as MP3.

Adjustable Stereo Condenser Microphones
The DR-40XP is equipped with RF-resistant unidirectional stereo condenser microphones supporting A-B and X-Y stereo configurations, enabling accurate and faithful sound capture across a wide range of applications. Ideal for recording electric guitar, piano, vocals, drums, and full band performances, as well as field recordings such as ocean waves, birdsongs, vehicle sounds, and interviews.

Adjustable Stereo Condenser Microphones
External Inputs
External Inputs

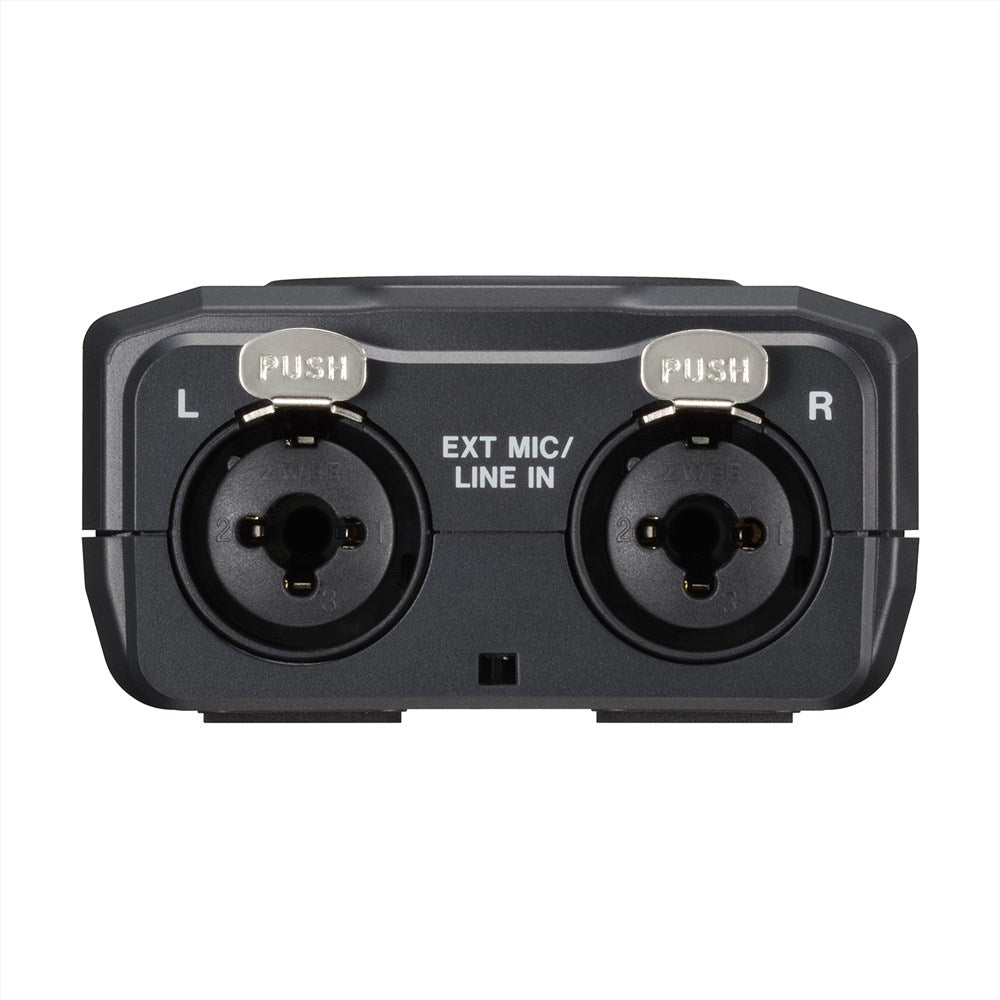

Equipped with XLR/TRS combo jacks that support +48 V phantom power for external stereo microphones, as well as stereo line-level inputs (up to +24 dBu).

Additional Features


Features at a Glance

Key Features

• 4-ch recording : field recording, musicians and videographers

• 32-bit float/24-bit/16-bit, 96kHz/48kHz/44.1kHz

• A-B or X-Y unidirectional condenser microphones, up to 125dB SPL

• Ultra-low noise mic preamps (HDDA / EIN -126dBu)

• XLR/TRS mic/line inputs with +48V phantom power

• 2-in/2-out USB-C audio interface

• Approx. 18 hours battery operation (2-ch built-in mic/alkaline)

Additional Features

microSDXC (up to 512GB) cards can be used as recording media
USB Type-C port
Power options include three AA batteries, USB mobile battery, or optional AC adapter (PS-P520U)
Support multiple menu languages (ENG / FRA / DEU / ITA / ESP / RUS / PRT / JPN / CHI / KOR)
Long recordings as MP3 files possible
Various recording functions (Auto rec, Self timer, Pre rec)
Overdubbing function
Limiter and Peak reduction
Four low-cut filter levels (40 / 80 / 120 / 220Hz)
Input delay function [0-150 msec]
Auto Tone output for use with DSLR camera
Supports MS microphone recording
Reverb effect for vocal and instrument resonance
Mark function
Track increment and file divide function
Various playback control（Playback speed、In-out loop, Jump back）
128×64 pixel graphic LCD with backlight
Tripod mounting point attaches to any standard tripod
Stereo mini line output and headphone output
Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
Playlist function
Built-in monaural speaker makes it easy to check your recordings
Chromatic tuner for tuning musical instruments before recording
Updates from the DR-40X
Support 32-bit float recording
Equipped with TASCAM HDDA mic-preamp
New microphone unit with low susceptibility to external radio noise from cell phones
Start recording with a single press of the REC button
Equipped a USB Type-C port, instead of a Micro B port
Supported up to 512GB microSDXC
