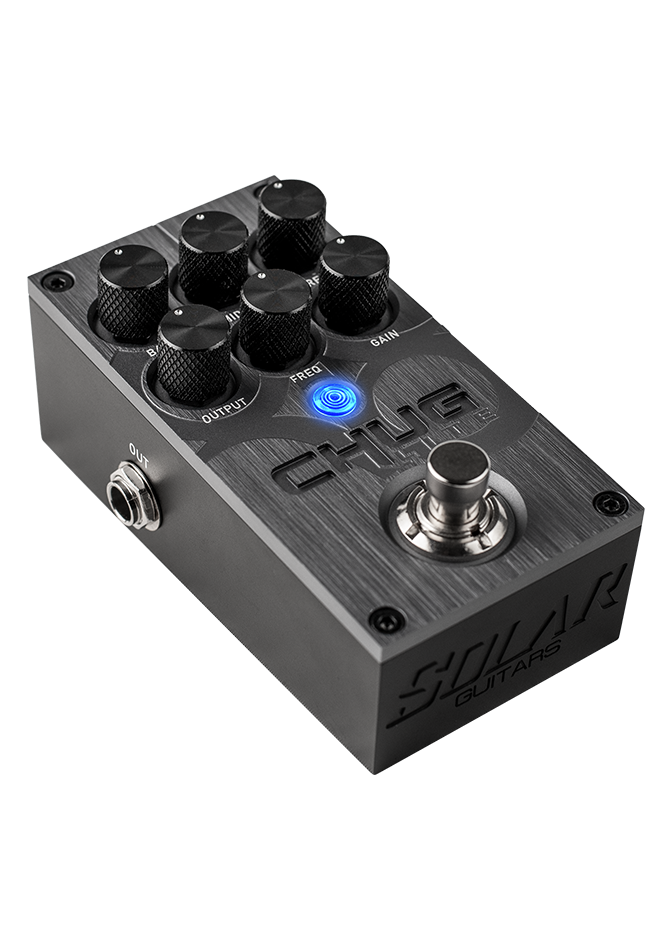

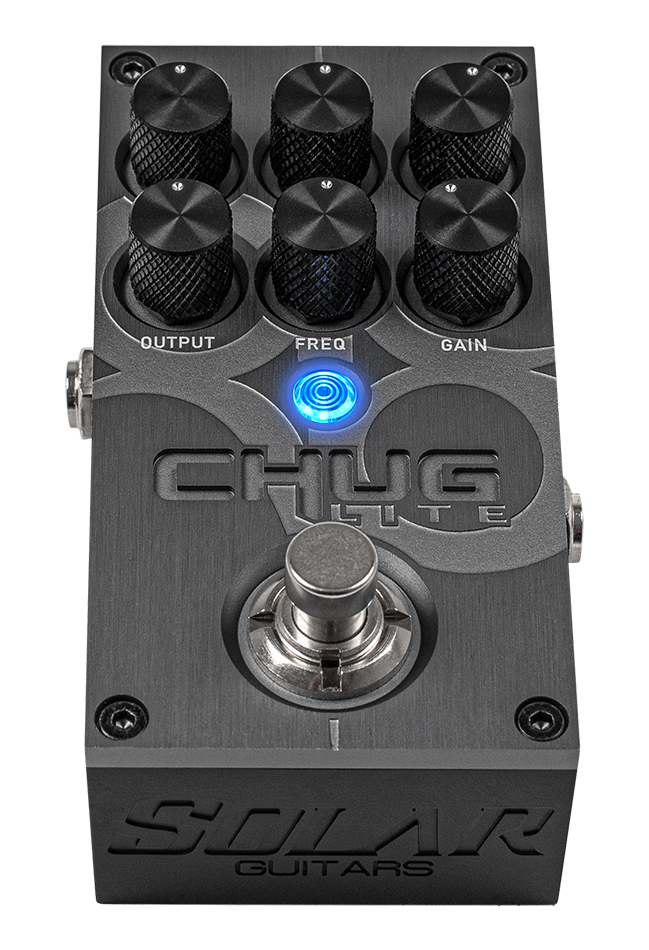

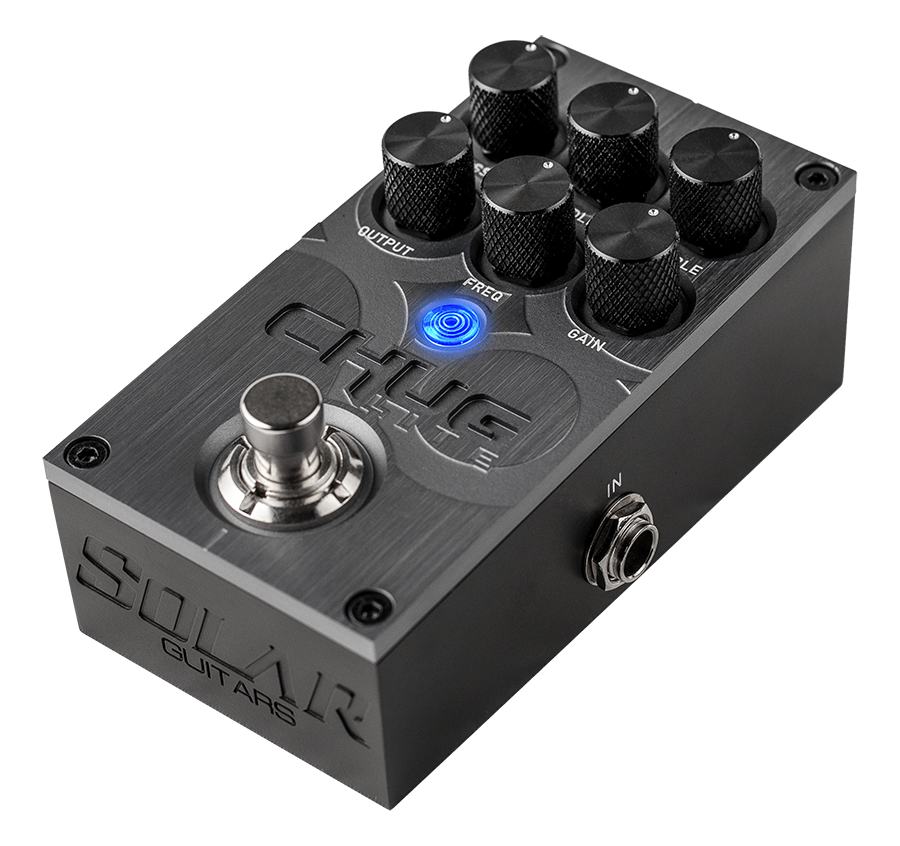

Solar CHUG Lite - High Gain Distortion Pedal

The primary difference between the CHUG Lite and the original CHUG pedal is that the circuit has been more optimally voiced to use in front of an amp as a traditional distortion pedal, whereas the Original CHUG is voiced as a preamp. Simplicity, gain and serious midrange control is the key to the feature set. Following the GAIN control (with tons of it on tap), the Midrange offers both (FREQ) Frequency selection and (MIDDLE) +/- amount to dial in your perfect midrange crunch or scoop between 160hz and 2.6k. In addition, there are Bass, Treble and output boost controls to set the level to your amp or next pedal. It is housed in a much smaller (but bigger than a ‘mini’) all metal “built like a tank” enclosure that occupies very little real estate on your pedalboard. The sound, flexibility and overall style has been supremely tailored for maximum CHUG!

Please pay attention to output level control and start at low level then turn up while setting

PEDAL TYPE
Gain/Distortion
POWER CONNECTORS
5.33mm Barrel
POWER SUPPLY
CPS9V500 (not included)
INPUT VOLTAGE
100-240 50/60hz
OUTPUT VOLTAGE
9 Volts DC
CURRENT DRAW
18mA
BATTERY
None
INPUT JACK
1/4''
OUTPUT JACK
1/4''
WATTAGE
n/a
GATE
Yes
SPEAKER
n/a
INPUT OHM
1 MΩ
OUTPUT OHM
1kΩ
OUTPUT LEVEL
5 dBu
EQ
Bass -Treb - Mid - Depth - Presence
BYPASS
Buffered Bypass
TEST REFERENCE LEVEL
0 dBu = 0.775 Vrms
ADDITIONAL FUNCTIONS
Input LF/HF Gain Filter
WEIGHT
.06 kg. (1 lb.)
DIMENSIONS
105mm x 60mm (4.13 x 2.36 inches)
