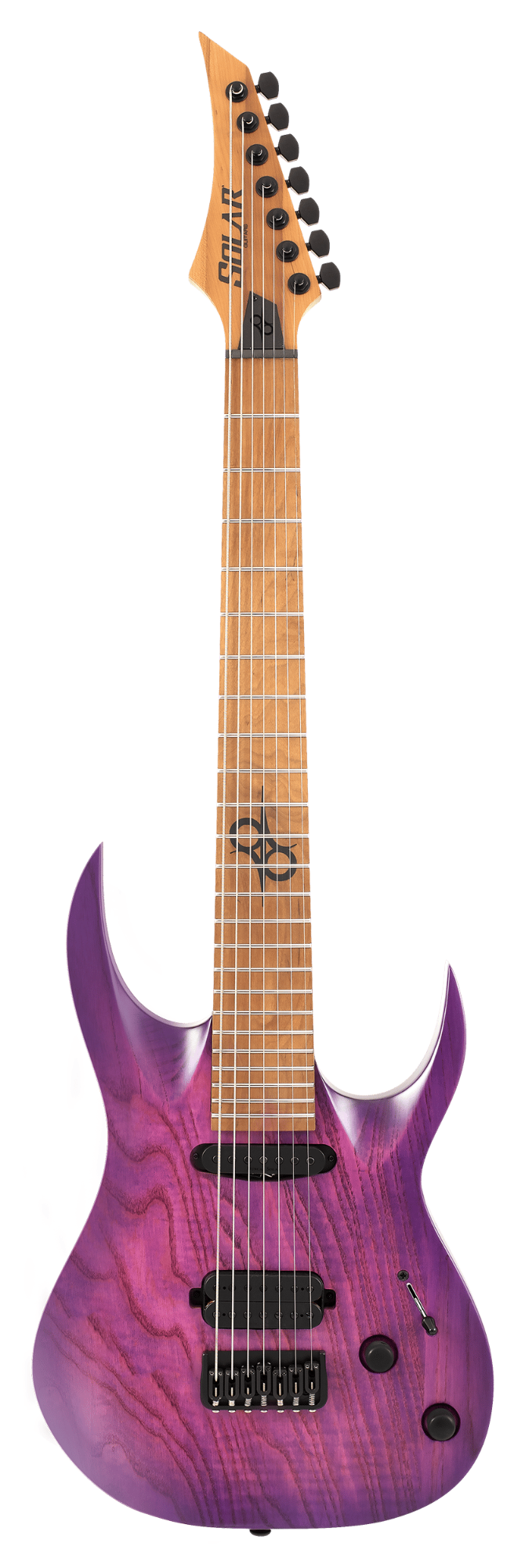

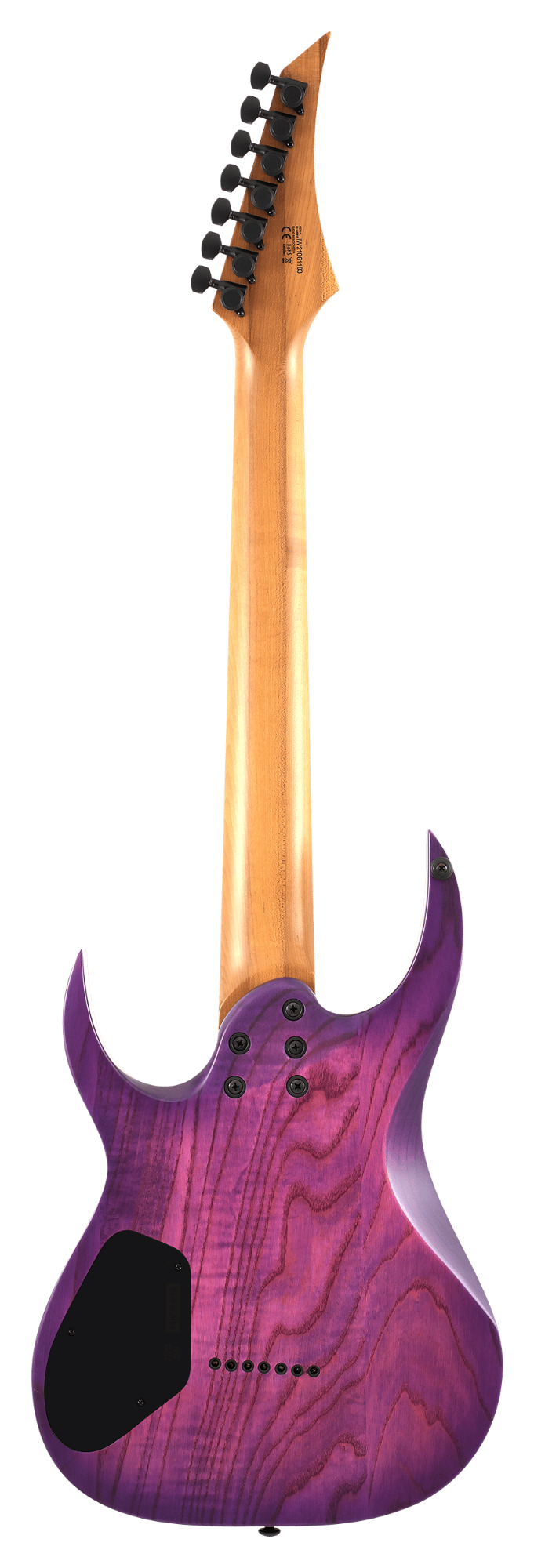

Solar AB1.7HTPB Electric Guitar - Trans Purple Burst Matte

NOTE: Roasted maple neck/fretboard on this guitar may have different degrees of colour depth, tonality and overall matching appearance. Pic is only an indication; actual receiving guitar may consist of lighter / darker fretboard and / or neck and combination.

This Type AB1.7HTPB seven-string bolt-on guitar boasts stealth looks, a distinctive cutaway scoop and a remarkable feature set, making it the ultimate, precise and professional instrument suitable for both stage and studio work. This guitar is loaded with a Hipshot USA fixed bridge and is loaded with Duncan Solar pickups that provide a full spectrum of tonal options, from organic clean to heavily overdriven, all with fluid sustain and maximum clarity. The Type AB1.7HTPB features a bolt-on neck joint design with 25.5” scale, an swamp ash body, a fast, thin, comfortable roasted maple neck, a roasted maple fingerboard with 24 super-jumbo stainless steel frets, Luminlay ‘glow in the dark’ side dots for easy stage use. Loaded with Solar 18:1 locking tuners, PPS nut, 3-way blade switch with volume and tone with push pull for series parallel pickup switching. Available in trans purple burst matte finish.

SPECS
SERIES
Solar, Solar
TYPE
AB
NUMBER OF STRINGS
7
HARDWARE COLOR
Black
SHAPE FOR LEFT HANDED
No
MACHINE HEAD TYPE
Solar Locking Tuners
STRINGS BRAND
Blacksmith
STRING GAUGES
(9-52) 7 string
TUNING
B-E 7 string
TRUSS ROD COVER TYPE
Solar Engraved Black
SCALE
25.5
NECK SHAPE
C Solar
NECK MATERIAL
Roasted Maple 3 Piece
NUT
PPS
JOINING STYLE
Bolt on
TRUSS ROD
Dual Action
WIDTH AT 1F
48 mm (7 string)
DEPTH AT 1F
20 mm
DEPTH AT 12F
22 mm
FRETBOARD MATERIAL
Roasted Maple
FRETBOARD RADIUS
R400
POSITION MARKERS TOP
None
POSITION MARKER SIDE
Luminlay SGM-23
12TH FRET INLAY
Solar Black
NUMBER OF FRETS
24
FRETTING STYLE
Standard
FRETWIRE MATERIAL
Stainless Steel
BODY THICKNESS
45mm
BODY MATERIAL TYPE
Swamp Ash
BRIDGE TYPE
Hipshot
STRAP PIN TYPE
Standard Solar Black
PICKUP FRONT TYPE
Duncan Solar Stacked Single Coil
PICKUP REAR TYPE
Duncan Solar/Bridge
PICKUP TYPE
Passive
PICKUP MOUNTING STYLE
Screwed into Wood
VOLUME POTENTIOMETER TYPE
500k Volume pot
TONE POTENTIOMETER TYPE
Push / Pull tone pot
KNOB TYPE
Black Metal Dome
SELECTOR SWITCH TYPE
3 way blade
CONTROL COVER
Gloss Black
TONE CAPACITOR
473K disk
JACK TYPE
Jack plate black matte
FINISH HEAD TOP
Natural Matte (N)
FINISH HEAD BACKSIDES
Natural Matte (N)
FINISH NECK
Natural Matte (N)
FINISH BODY TOP
Trans Purple Burst Matte (TPB)
FINISH BODY BACKSIDES
Trans Purple Burst Matte (TPB)
GIGBAG TYPE
None
TRUSS ROD TOOL
Included
INDIVIDUAL LENGTH MM
995,71
INDIVIDUAL WIDTH MM
306,24
