Radial DiNET DAN-TX2 2-Channel Dante Network Transmitter

Two Channels of Analog Audio over Dante

The DAN-TX2 is a 2-Channel analog-to-digital converter that allows you to connect any line level source to a Dante or AES67-compliant network.

• Connect any line level source to a Dante network
• XLR, 1/4″ TRS, RCA and 3.5mm input jacks
• 24bit/96kHz analog to digital conversion
• Handles signal levels up to +24dBu
• Compliant to AES67 specifications

Seamless network integration

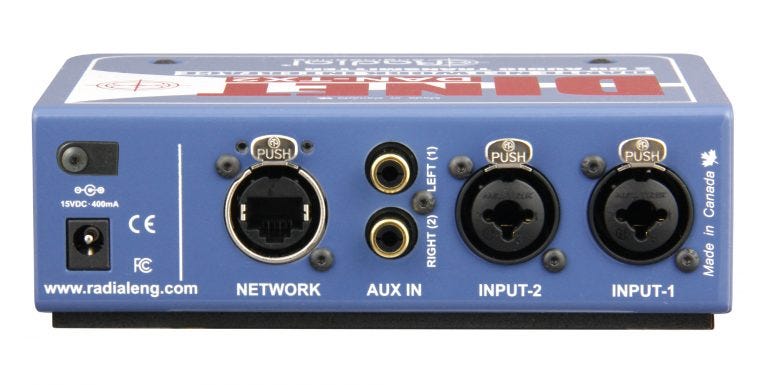

The DiNET DAN-TX2 makes it easy to transmit two channels of high quality analog audio over a Dante or AES67-compliant network. Multiple input options are provided, with Balanced XLR/TRS connectors for professional audio sources, RCA jacks for line level consumer devices, and a 3.5mm aux input for connection to laptops, smartphones, and tablets. Trim controls and pad switches are included for each channel, with a link switch to simplify control for stereo sources. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations, and redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously. The DAN-TX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.
