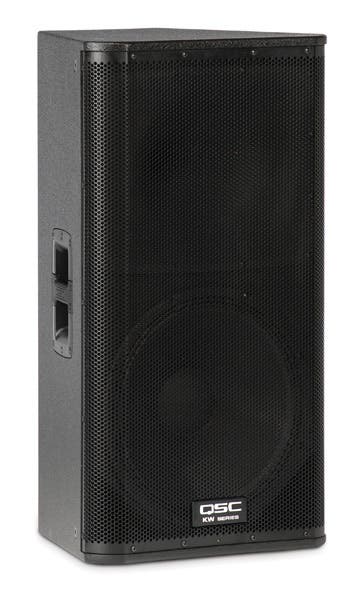

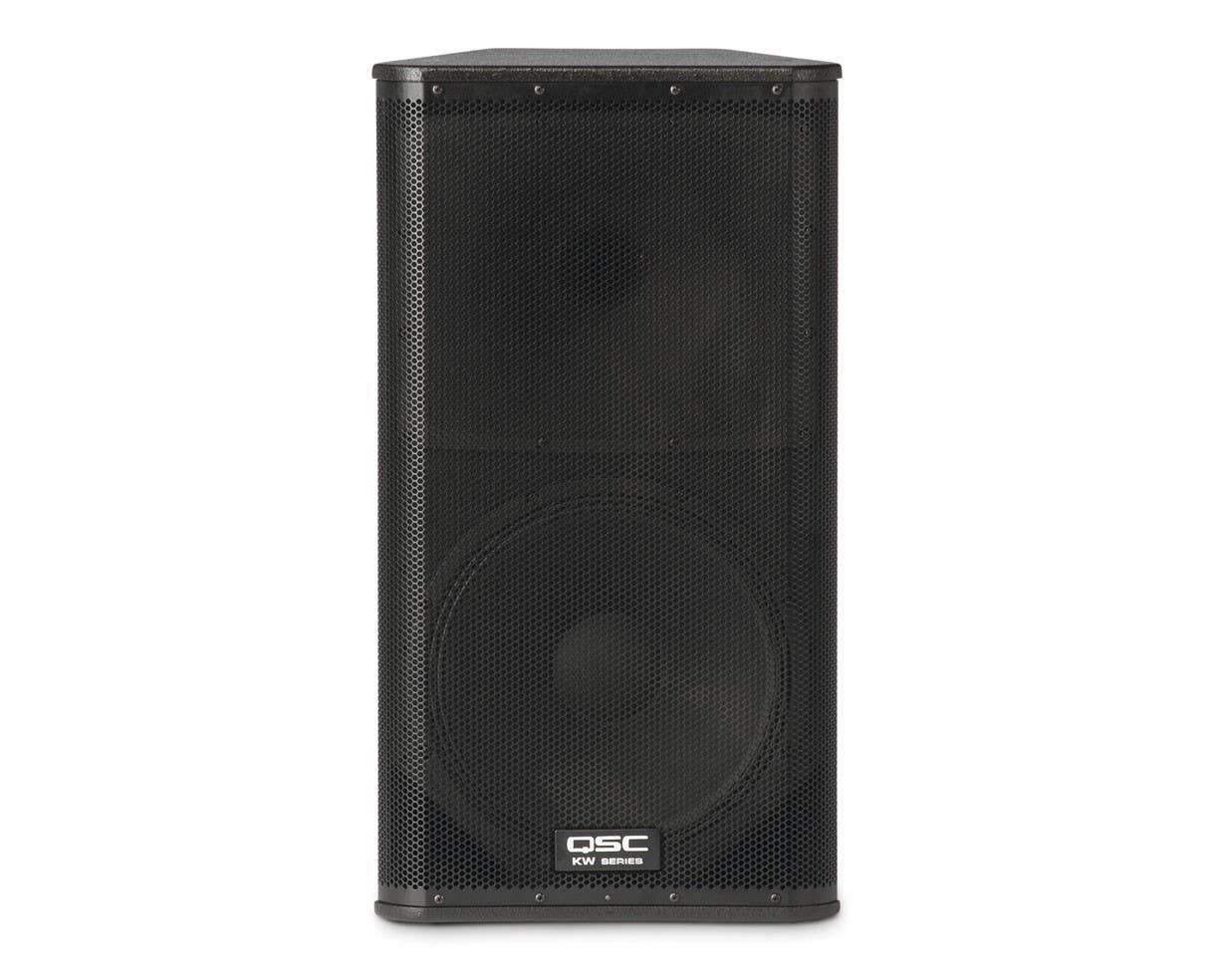

QSC KW152 Powered 15" Speaker

KW152 Features

• 15” Woofer; 1.75” diaphragm compression driver
• 60° Nominal coverage angle
• Maximum SPL 133 dB peak
• 1000 watt Class D power modules in all models (2 x 500 W continuous)
• Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
• DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
• Rugged, texture-painted birch enclosures
• Four-position Mic/Line gain (full-range models)
• Tour-grade 16 gauge steel grilles
• Comfortable ergonomic handles
• 35 mm pole sockets with Tilt-Direct™
• M10 rigging points for suspended installation

KW Series Features

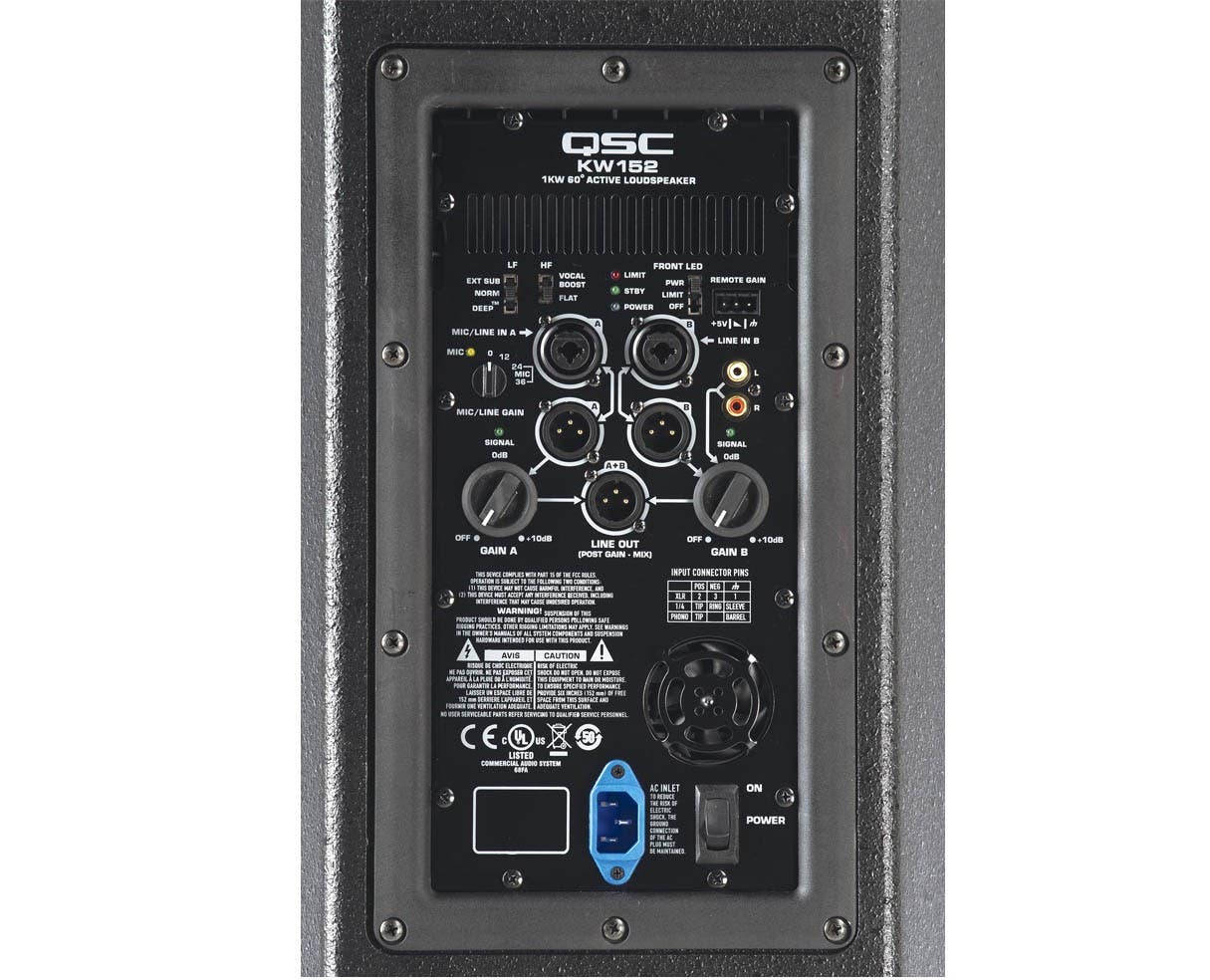

Inputs, Outputs and Mixing
Combo XLR and 1/4" TRS inputs accept both Mic and Line Level input while a set of RCA phono inputs (except KSub) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for "daisy-chaining" of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility.

DEEP™
Sophisticated digital signal processing provides greater low-frequency extension while precisely protecting the woofer from over-excursion.

DMT
Directivity Matched Transition matches the HF coverage angle to the natural coverage angle of the woofer for uniform frequency response over the entire coverage area.

Conical Wave Guide
The conical wave guide eliminates the phase distortions of typical asymmetric horns for more natural reproduction.

1000 Watts
The same state of the art, light-weight Class D amplifier module powers all the K & KW Series models.

EQ Modes
Optimize for a specific application with the simple flip of a switch.

Energy Management
Automatic standby mode conserves energy and extends the life of the loudspeaker.

LED Operation
Turn of the front panel power LED or switch it to show limiting operation.

Remote Control
Easy to use remote gain control is ideal for installed applications.

Pro Appearance
Sleek lines and a full grille for a more professional look than other molded loudspeakers.

Locking IEC Power Cable
Help prevent unexpected interruptions.

Connectivity
Mic/line and RCA inputs along with onboard mixing controls allow greater flexibility.

Tilt-Direct™ Pole Mount
A simple turn of the dial is all it takes to alter the vertical directivity by 7.5 degrees.

Suspension and Mounting
With integrated threaded inserts, KW Series is equally at home in mounted or flown applications.

Threaded Pole
The KW181 subwoofer comes with a threaded pole for a snug, safe fit.

Intrinsic Correction
An exclusive QSC process that applies extensive acoustic measurements to noticeably improve audio quality.

Class D
Higher efficiency produces less heat and more sonic performance with lower overall current draw.

Protections
QSC's Guardrail™ technology protect your loudspeakers from overexcursion. On-demand cooling fan and thermal limiting prevent overheated electronics.
