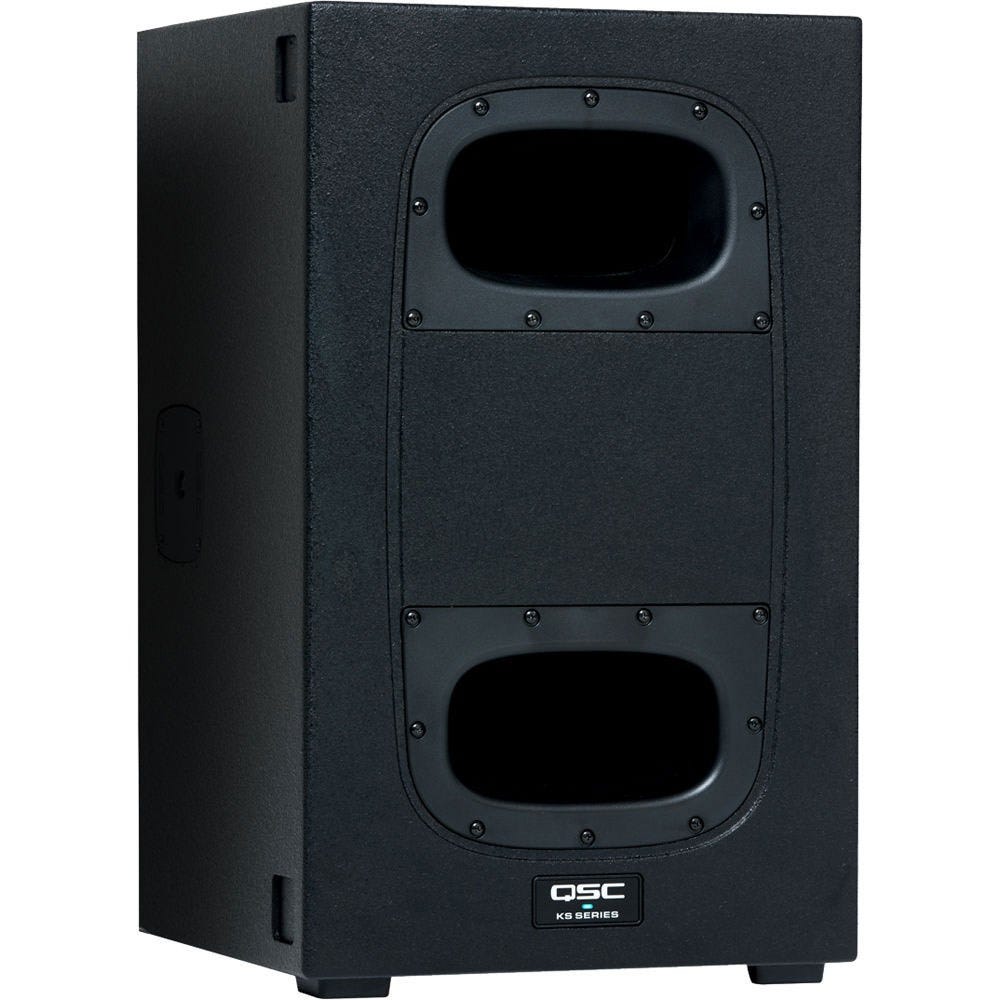

QSC KS112 KS Series 12" Compact Powered Subwoofer

Features

• High Output in an ultra-compact form factor
• 2000 Watt Class D amplifier module
• 12-inch, long-excursion driver; 6th order bandpass design
• Intrinsic Correction™ tuning and loudspeaker management
• Refined, professional appearance looks great in any application
• Rugged painted wood enclosure for long life and lasting durability
• Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
• Optional KS-LOC security cover prevents unauthorized tampering of controls
• Complete EASE & CAD information available online
• 6-Year Warranty*

SPECIFICATIONS KS112

• Configuration 6th-Order Bandpass Subwoofer
• LF Transducer 12-inch (305 mm), Cone
• Frequency Response (-6 dB) 41 Hz - 108 Hz
• Frequency Range (-10 dB) 38 Hz - 121 Hz
• Maximum Rated SPL1 128 dB @ 1 m (peak)
• Amplifier Class D
• 2000W (peak)
• Cooling Low-noise, variable speed fan

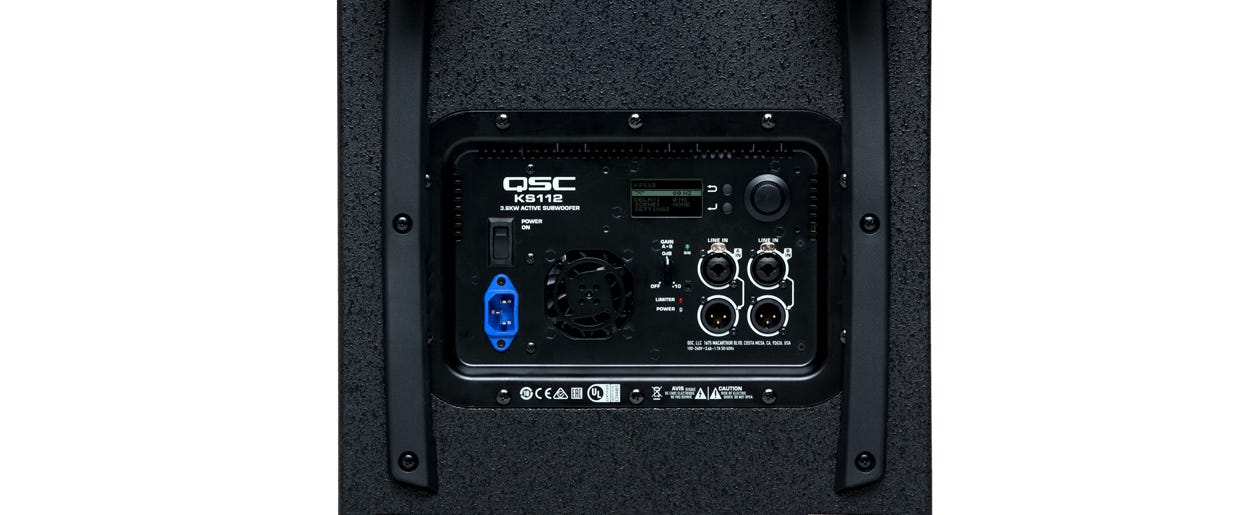

• Controls Power On/Off
• Gain Control
• Rotary encoder
• 2 x selection buttons
• Indicators 2 x Power LED (front and rear)
• Input Signal LED
• Limiter Active LED
• Connectors 2 x locking XLR/F 1/4-inch combo
• 2 x XLR/M (Loop-thru Output)
• 1 x locking IEC power connector
• AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
• Enclosure Details
• Enclosure 15 mm Birch Plywood
• Color Black (RAL 9011)
• Grille Internal woofer cover
• Dimensions (HWD) inches 24.5 x 15.5 x 24.25
• Dimensions (HWD) mm 622 x 394 x 616
• Net Weight 28.4 kg (62.6 lbs)
• Shipping Weight 34.5 kg (76 lbs)
• Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B

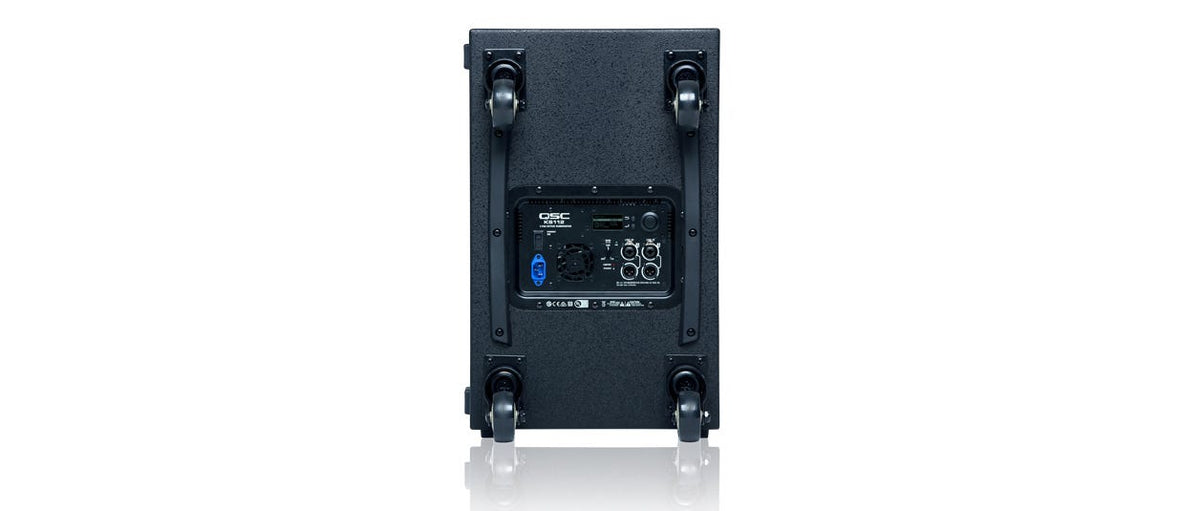

• Included Accessories 4 x Low-Noise, Heavy Duty Casters
• Optional Accessories KS112 CVR Transport Cover, KS-LOC Lock-Out Cover
• SP-16X Extension Pole, SP-36 Extension Pole

1 Peak SPL is measured on-axis at 1m, pink noise crest factor 10dB, unweighted Continuous SPL is based on theoretical calculations based upon transducer sensitivity and peak available power (for comparison purpose and in accordance with common industry practice.

*6-year warranty with product registration. Visit QSC.com for full details

All specifications are subject to change without notice.
