PreSonus HP4 Headphone Amplifier

PreSonus HP4 Headphone Amplifier

Now Hear This!

Are you and your session players and bandmates tired of straining to hear underpowered headphones? We were too. That’s why Jim Odom and his jambalaya-fueled team of engineers designed 150 mW headphone amps for the HP4 headphone-distribution system.

These headphone amps are not just loud enough for session and stage use, they’re loud enough to explode the oysters in a Po’ Boy sandwich. Yet the sound is clear and clean, with a wide dynamic range. At last, everybody will be able to hear—assuming they are capable of hearing. Be careful with that level control!

Simplicity is the HP4’s hallmark. You get left and right line inputs, left and right line outputs with level control, and the four headphone outs. You can adjust the overall headphone level, sum the stereo signals to mono, and mute the rear-panel Monitor outputs.

• Input/Output

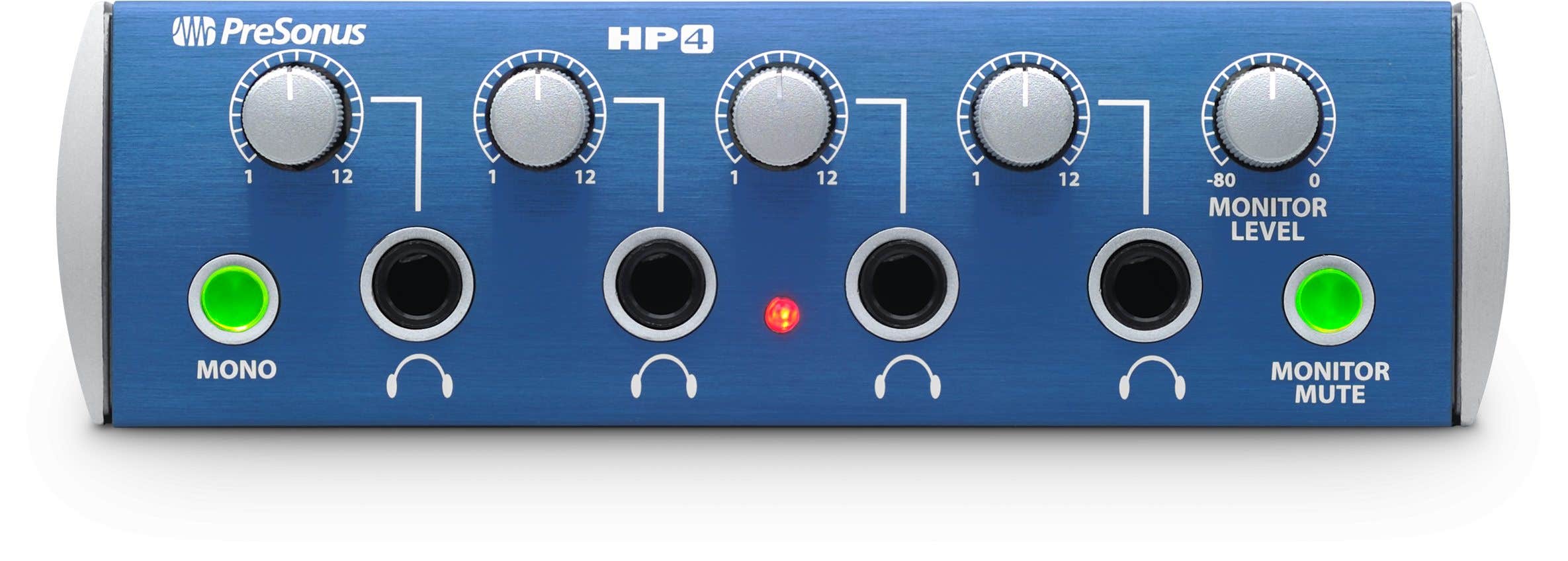

• 4 screaming-loud (150 mW per channel) stereo ¼” headphone outputs (front panel)

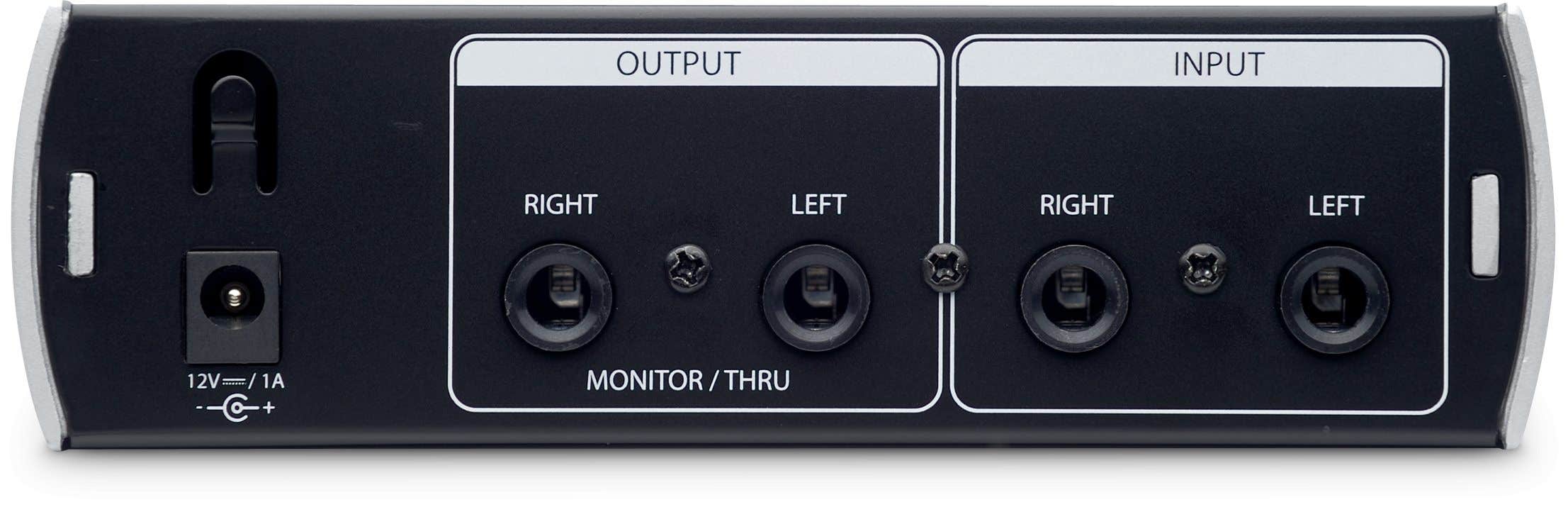

• 2 balanced ¼” line outputs (monitor outputs)
• 2 balanced ¼” line inputs
• Meters, Controls, and Features
• Headphone level control for each channel
• Mono summing switch for each channel
• Monitor level control
• Monitor mute switch
• Daisy-chain multiple units via monitor outputs
• Physical
• Compact 1/3U rack-mount chassis
• Sealed, detented, metal rotary controls
• External 16 VAC power supply
