NU-X NDO-5 Ace Of Tone Dual-Overdrive Pedal
NU-X NDO-5 Ace Of Tone Dual-Overdrive Pedal

NU-X NDO-5 Ace Of Tone Dual-Overdrive Pedal

Product code: NXNDO5
RRP $249.95
$215.00
Price Match
1 Year Warranty
Delivery
Calculate shipping
In-Store
Loading...
Online
Pre Order
Highlights

  • Tubeman offers clarity and gain with FAT mode
  • Morning Star delivers transparent, low-gain drive
  • FAT mode enhances bass for warmer tones
  • SHINE mode adds treble for crystal-clear sound
  • Routing toggle switch for sound stacking options
  • BF/TB toggle solves tone-loss in pedal chains
  • 18V toggle increases dynamic range and headroom
Payment Options

Fees apply

More info

One-time payment of $215.0

No fees

More info

6 months min.

More info
Apply Now

Accessories

Description

In the left corner, Tubeman with FAT mode. Tubeman offers way more clarity and gain than any classic Tubescreamer, and we modified the circuit with a useful secondary function by simply holding the foot switch - FAT mode. It cranks way more bass response to enhance the low-end yet makes the tone warmer!

In the right corner, Morning Star with SHINE mode. Morning Star is based on legendary Bluesbreaker circuit: very transparent, low gain drive. Like our Morning Star, it also features a simple FOOT SWITCH HOLD to engage the iconic SHINE mode. In SHINE mode, you can get way more treble sound to make your tone crystal-clear.

Specifications:

Input Impedance: 2.2MΩ
Output Impedance: 1kΩ
Power: 9V DC ONLY
Current Draw: Less than 100mA
Dimensions: 105mm (L) x 115mm (W) x 58mm (H)

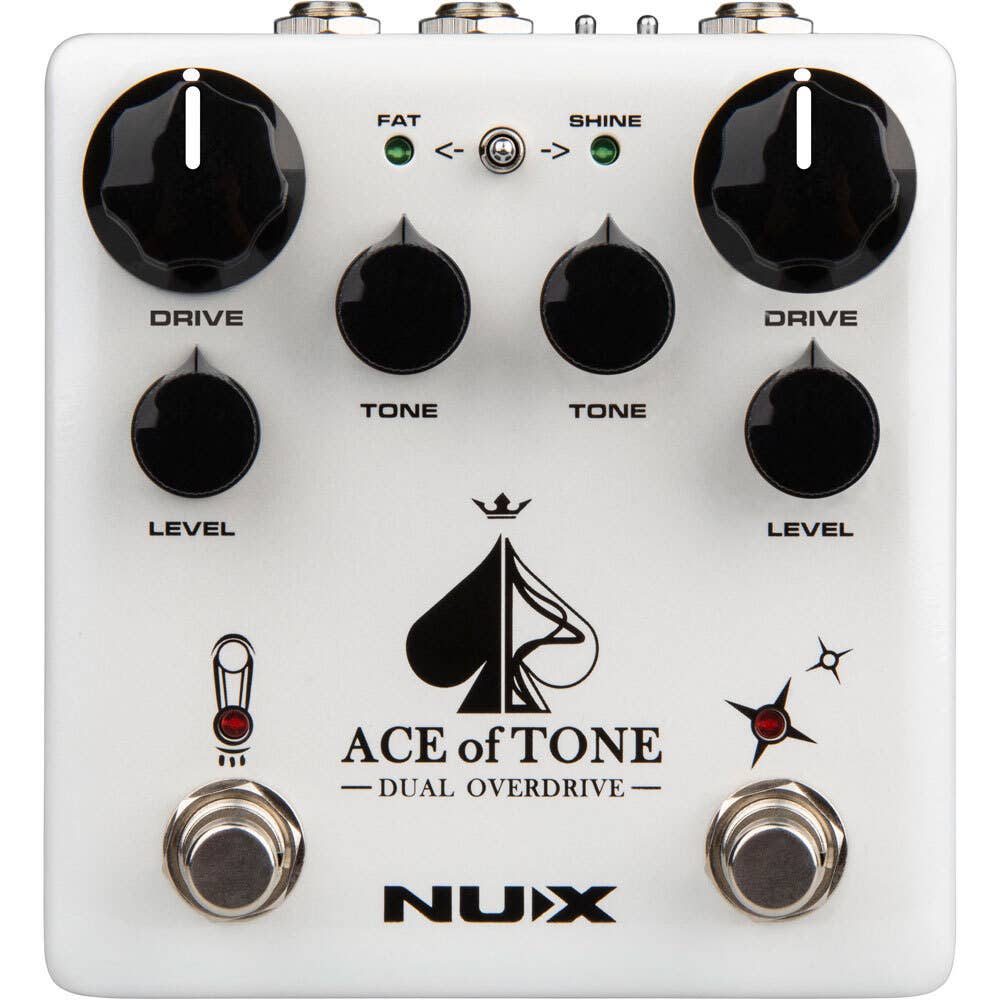

Left Side (Tubeman)

DRIVE Knob: Controls the gain of Tubeman circuit.
TONE Knob: Controls the treble frequency of Tubeman circuit.
LEVEL Knob: Controls the volume of Tubeman circuit.
Footswitch: Engage/Disengage Tubeman circuit. Hold it for 1 second, you can turn on/off FAT mode.
FAT Indicator: While you engaged FAT mode, the indicator will turn on.
Right Side (Morning Star)

DRIVE Knob: Controls the gain of Morning Star circuit.
TONE Knob: Controls the treble frequency of Morning Star circuit.
LEVEL Knob: Controls the volume of Morning Star circuit.
Footswitch: Engage/disengage Morning Star circuit. Hold it for 1 second, you can turn on/off SHINE mode.
SHINE Indicator: While you engaged SHINE mode, the indicator will turn on.
Routing Toggle Switch: You can adjust the order from Morning Star to Tubeman or Tubeman to Morning Star. It’s very useful to stack the sound.

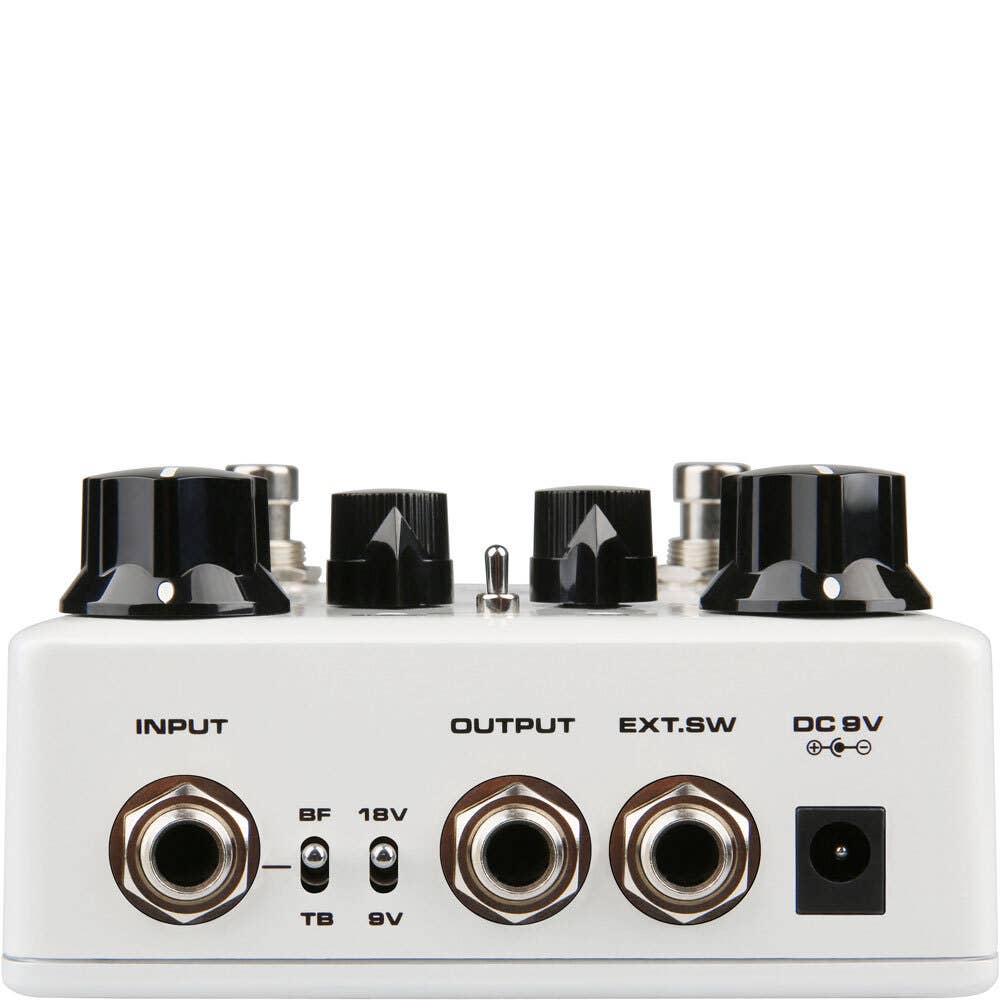

Input: Connect your guitar side to INPUT jack.
Output: Connect the OUTPUT signal to amp side.
EXT. SW: You can use external foot controller (like NUX NMP-2) to remote this pedal.
BF / TB Toggle Switch: BF means Buffer-Bypass, TB means True-Bypass. You can choose BF while you connect with several pedals in your signal chain to solve tone-loss situation.
18V/9V Toggle Switch: ACE of TONE can double the voltage internally while you toggle to 18V position, that can increase dynamic range and headroom.
DC Jack Use ONLY 9V Negative Tip power with 100mA.

Specifications

Warranty
1 Year
Analog/Digital
Analog
Mini
No
Effect model
Ace of Tone
Power
None
Power usage
9v DC, 100mA
Effect type
Overdrive
