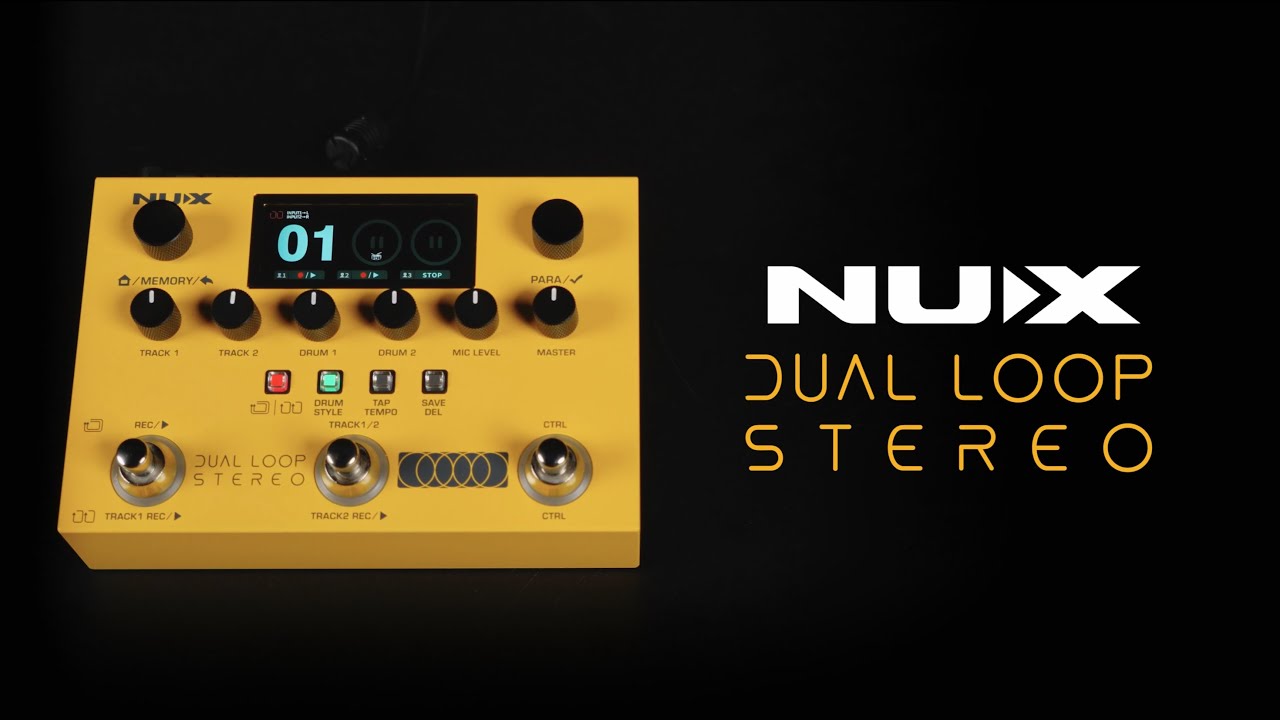

NU-X Monarch Series Dual Loop Stereo Pedal

The NUX DUAL LOOP STEREO stands as an exceptional companion for guitarists, singer-songwriters, and all musicians eager to explore the art of looping in their performances or compositions.

Equipped with dual loop tracks and two distinct drum patterns, it empowers you to seamlessly weave together two independent sections of a song with precision and creativity. Furthermore, its arsenal includes a suite of built-in effects, such as Octave, Booster, Cabinet Simulator, and Reverb.

A high-definition color LCD display ensures intuitive control, while stereo Mic/Instrument inputs and outputs, along with MIDI in/out functionality, provide unparalleled versatility. Whether you’re honing your craft during practice sessions, crafting melodies in the studio, or captivating audiences on stage, this remarkable dual-track loop pedal will ignite your imagination and transform your musical journey.

FEATURES:

Dual-Track looper & Dual drum kit
99 phrase memories
90 minutes of stereo recording time on a single track
26 hours of stereo recording time in total
42 rhythm presets with 672 rhythm variations
4 effects including Octave, Booster, Amp Simulation, Reverb (only for rhythm)
Sampling Rate: 44.1 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Customized GIF Boot-up display (960 x 376 pixels, Max size 2 M)
2.86" high-definition colored LCD display (960 x 376 pixels)
INPUT: Mono/stereo 1/4 inch inputs including XLR mic input with phantom power
OUTPUT: Mono/stereo 1/4 inch outputs, headphones
Support for expanded control via external footswitches, an expression pedal, or MIDI
Full MIDI I/O provided with space-saving mini TRS jacks
USB audio with Loop-back

SPECIFICATIONS:

Sampling Frequency: 44.1 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Recording/Playback:
- Number of Tracks: 2
- Data Format: WAV (44.1 kHz, 32-bit float, stereo)
- Approx. 1.5 hours (1 track), Approx. 26 hours (total of all memories)
- Rhythm Type: 42 groups, 672 patterns
- Effect: Octave, Booster, Amp Simulation, Reverb (for drum or mic/instrument of input 1)
- Memory: 99
Maximum Input Level:
- MIC IN: +6 dBu (with minimum mic gain)
- INPUT 1/2: +8 dBu
- AUX IN L/R: +8 dBu
- Mic Input Gain Range: 5.4 dB – 63 dB
Input Impedance:
- MIC IN: 2.4 kΩ
- INPUT 1/2: 1 MΩ
- AUX IN L/R: 1 MΩ
Output Impedance:
- OUTPUT L/R: 1 kΩ
- PHONES L/R: 3.3 Ω
- Bypass: Buffered bypass
- Display: 2.86" Coloured LCD display, 960 x 376 pixels

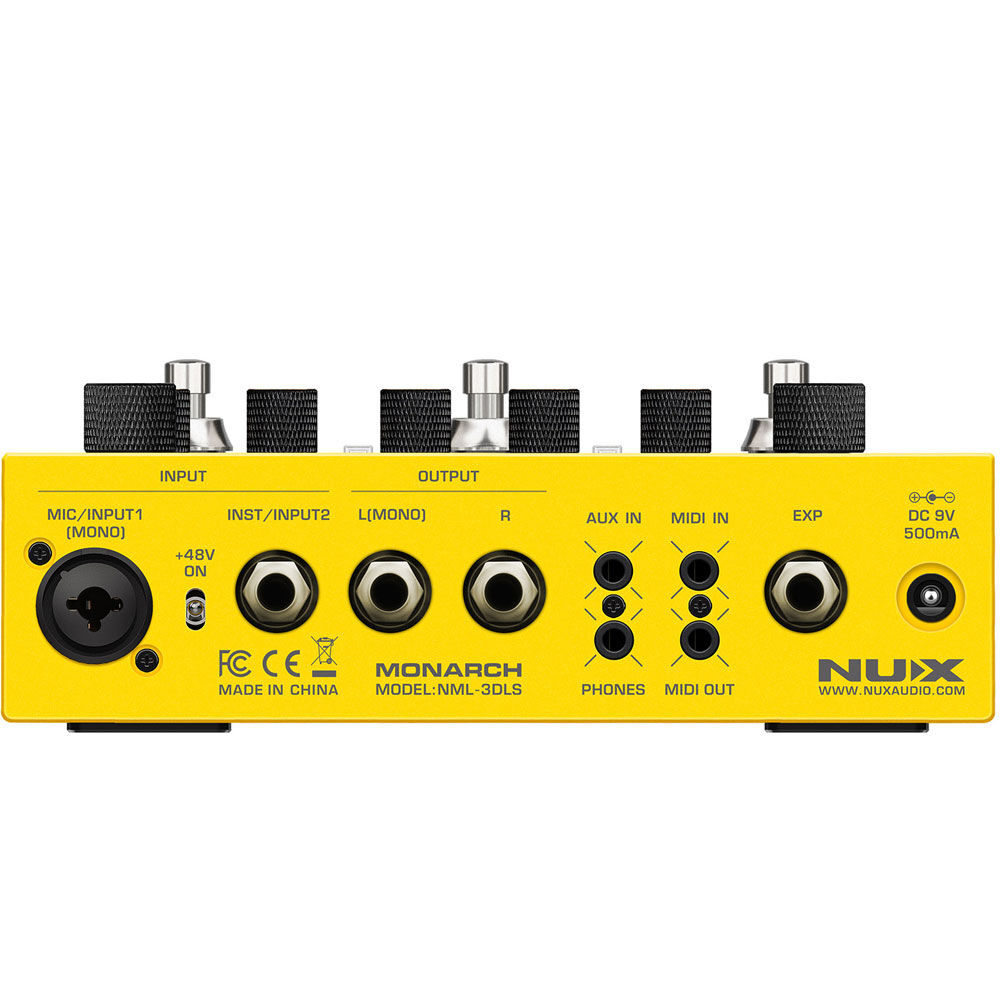

Connectors:
- MIC/INPUT 1: Combined XLR & 1/4 inch type jack (balanced, phantom power: DC 48 V)
- INST/INPUT 2: 1/4 inch phone type jack
- OUTPUT L (MONO): 1/4 inch phone type jack
- OUTPUT R: 1/4-inch phone type jack
- AUX IN: 1/8-inch stereo miniature type jack
- PHONES: 1/8-inch stereo miniature type jack
- MIDl (IN, OUT) jacks: 1/8-inch stereo miniature type jacks
- EXP jack: 1/4-inch TRS phone type
- DC IN jack
- USB port: USB-C type
Power Supply: ACD-006 (9 V 500 mA)
Current Draw: Less than 170 mA (Phantom power off) Less than 270 mA (Phantom power on)
Dimensions (L x W x H): 183 x 130 x 65.3mm
Weight: 765 g
