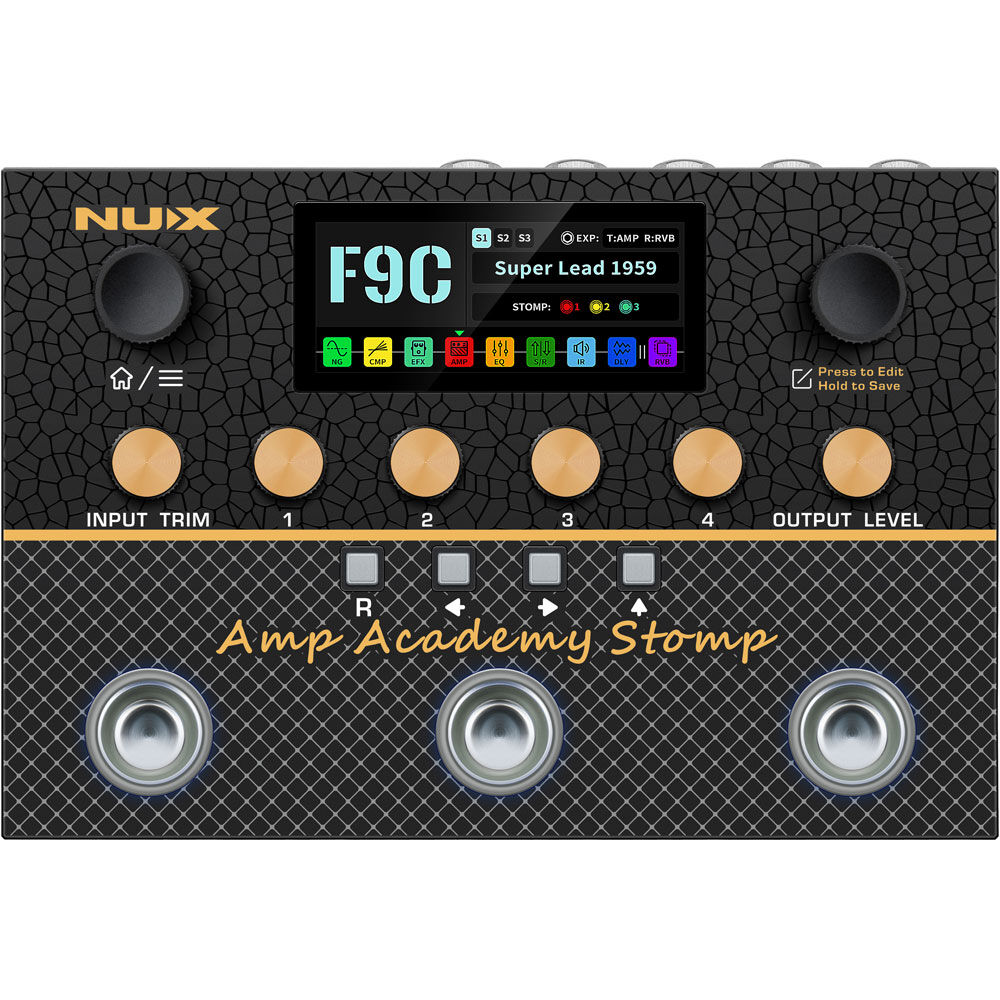

NU-X Monarch Series Amp Academy Stomp Compact Modeler (NXNMA3)

3-footswitch Modelers are an up-and-coming trend in the market. NUX heard your requests, and that’s the main reason for creating the AA Stomp... an end-to-end tone-shaping Amp Simulator, and independent L/R CYBER IR™ Engine, ushering in a milestone evolution for NUX.

FEATURES:

Stereo CYBER IR™ Engine with dual 1024 samples resolution.
Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.
World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping.)
Aluminum extrusion chassis.
NG, EFX, AMP, I.R., EQ, S/R; DLY, RVB effect blocks with free/parallel routing order.
2.86” color LCD display (960 x 376) with intuitive operations.
27 preset slots with 3 scenes, independent L/R 60 IR slots.
Pre/Post phrase loop for distance tone tweaking. (NBT-1 with APP)
Footswitch setup, Global EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL, Quick Block, Tuner in global setting.
USB audio interface, firmware update, PC edit software, NBT-1, …etc.
USB-C, stereo balanced 1/4" outs, phones out for silent practice, 1/8" MIDI I/O, EXP out with additional NMP-2 Lite.
Great Dynamic Range: 111dB
Ultra-low latency: 2ms
Monarch Editor: User-friendly interface for easy sound customization, parameter tweaking, and patch management.

SPECIFICATIONS:

Pedal Type: Amp Modeling, Multi-FX
Analog/Digital: Digital
Presets: 27 x Factory, 27 x User
Number of EFX blocks: 9 (NG, CMP, EFX, AMP, EQ, S/R, IR, DLY, RVB)
Impulse Responses: Left & Right, 60 x Factory Cyber IRs, 40 x User IRs
USB: USB-C for 24-bit / 48kHz USB AUDIO, USB MIDI (PC Editor), firmware update, NBT-1 Bluetooth Module with APP control
Bluetooth: Additional NBT-1 Bluetooth Module with APP control
Expression Control: Yes, external EXP or additional NMP-2 Lite footswitch
Bypass Switching: Buffered Bypass
Software: Amp Academy Stomp editor (PC), Amp Academy Stomp APP
INPUT/RETURN Impedance: 1M Ohms
AUX IN Impedance: 10k Ohms
OUTPUT L/R Impedance: 100 Ohms (Balanced)
SEND Impedance: 1k Ohms
PHONES OUT Impedance: 10 Ohms
INPUT to OUTPUT L/R Dynamic Range: 111dB
Sampling Rate: 48kHz / 32bit
System Latency: 2ms minimum
Power: 9V DC (Center Negative)
Current Draw: < 500mA
Dimensions (L x W x H): 183 x 30 x 65.3 mm
Weight: 0.9kg (1.98lbs)
