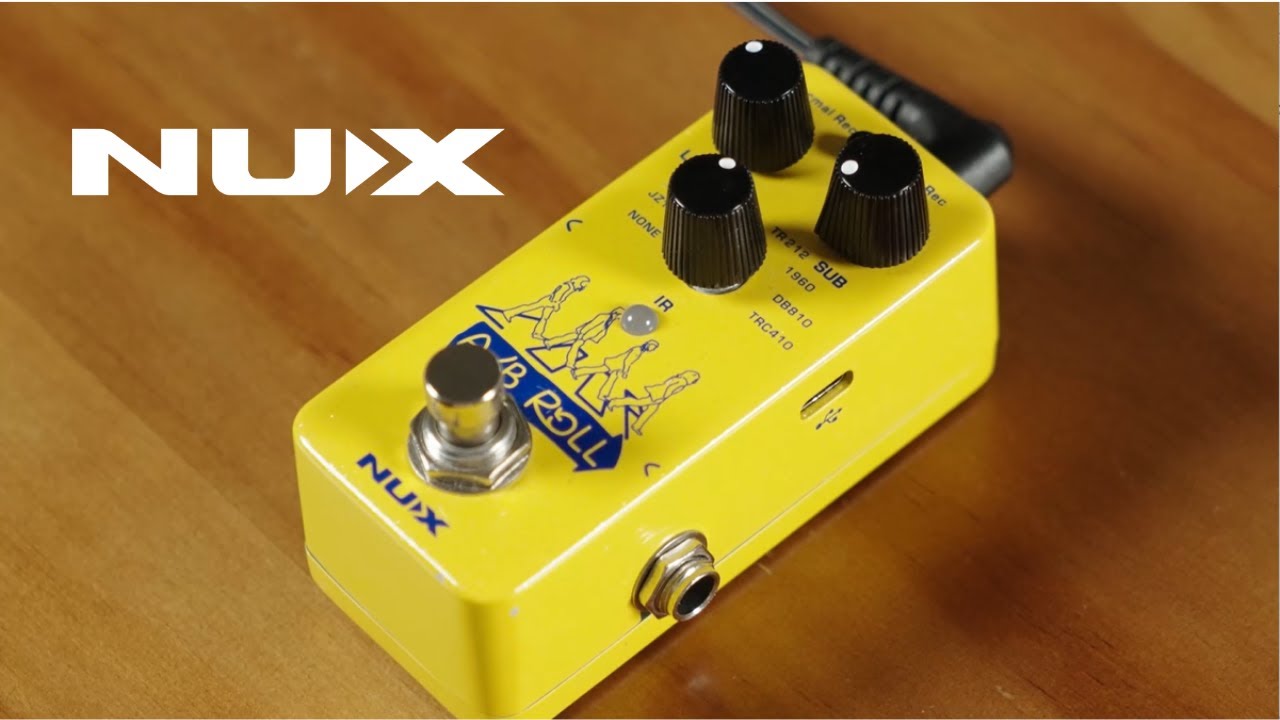

NU-X Mini Core Series A/B Roll Octave & Loop Pedal

Step onto the next level of recording overdub. The NUX A/B ROLL Octave & Loop pedal is more than just a looper, it’s a musical ode to the legendary studio that inspired its design, where some of the most iconic recordings in music history were made: Abbey Road Studios.

This versatile, compact unit combines polyphonic sub-octave and AUTO recording capabilities with IR cab simulation, bringing the magic of in-the-moment experimental sound recording and overdub, to your creative workflow. Whether you’re jamming alone in your home studio, capturing a burst of inspiration for your next project, or taking the stage as a performer, this pedal is your trusted companion on your musical journey.

Like John, Paul, George, and Ringo before you, you’ll be able to tap into the same creative spark that defined Abbey Road’s legendary approach. With its compact size and feature-rich functionality, the NUX A/B ROLL Octave & Loop pedal is the perfect companion to let you relax and roll with it !
Unlock new sonic possibilities, and take your music to the next level.

FEATURES:

Polyphonic lower octave timbre
Preset 7 IR slots
IR loader and editor
Auto recording mode
Support OTG audio stream
1/8" Phones Out
24-bit high quality audio recording
Up to 6 minutes recording, unlimited overdubs
SPECIFICATIONS:

Input lmpedance: 1MΩ
Output Impedance: 10kΩ
Phones Output Impedance: 10Ω
Dynamic Range: 103dB
DSP Processing: 48kHz / 32-bit
AD D/A Sampling Rate: 48kHz / 24-bit
Power: 9V DC (Negative tip, Optional ACD-006A adapter)
Current Draw: less than 100mA
Dimensions (L x W x H): 94 x 51 x 53mm
Weight: 175g
