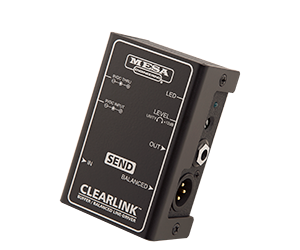

Mesa Boogie Clearlink Send Line Driver/Buffer

The CLEARLINK™ (SEND) LINE DRIVER is designed to compensate for losses in Tone due to increased capacitance in long cable runs. With a high quality buffer and +12dB of available output gain, it has the ability to drive cable runs of up to 330 Ft./100M before noticeable degradation, when added in-line on the feed from Pedal Board to Amplifier. When combined with a STOWAWAY™ INPUT BUFFER on the Instrument, the CLEARLINK SEND forms an “Effects Loop” for the Instrument-Pedal Board-Amp signal chain that will reclaim the integrity of your sound through boosted levels and buffering or impedance matching. Whether used by itself, or with the STOWAWAY as a comprehensive “Front End” solution, it will provide the needed “stable impedance source” to ensure the pieces in your rig “communicate” well. It can be used for balanced signals via two different output jacks; standard 3-pin XLR or ¼” TRS. It also supports unbalanced signals via the standard ¼” mono jack. If you’re going to send your signal on a marathon, make sure you have a clear link to communicate… because you don’t want your Tone lost in translation.

SPECIFICATIONS
Input Impedance: 1M Ohm
Output Impedance: 150 Ohm Unbalanced / 300 Ohm Balanced
Output Buffer Design: High-Speed, Low Noise Op-Amp
Nominal Operating Voltage: 9VDC
Maximum Operating Voltage: 12VDC
Typical Current Draw: 10mA @ 9VDC
DC Adapter (not included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm Barrel Plug
Weight: 0.425 lbs (193 g)
Dimensions (W x D x H): 3.86 x 2.48 x 1.71 inch (98 x 63 x 44 mm)
NOTE: Due to efforts for continual improvement, all specifications are subject to change without notice.
