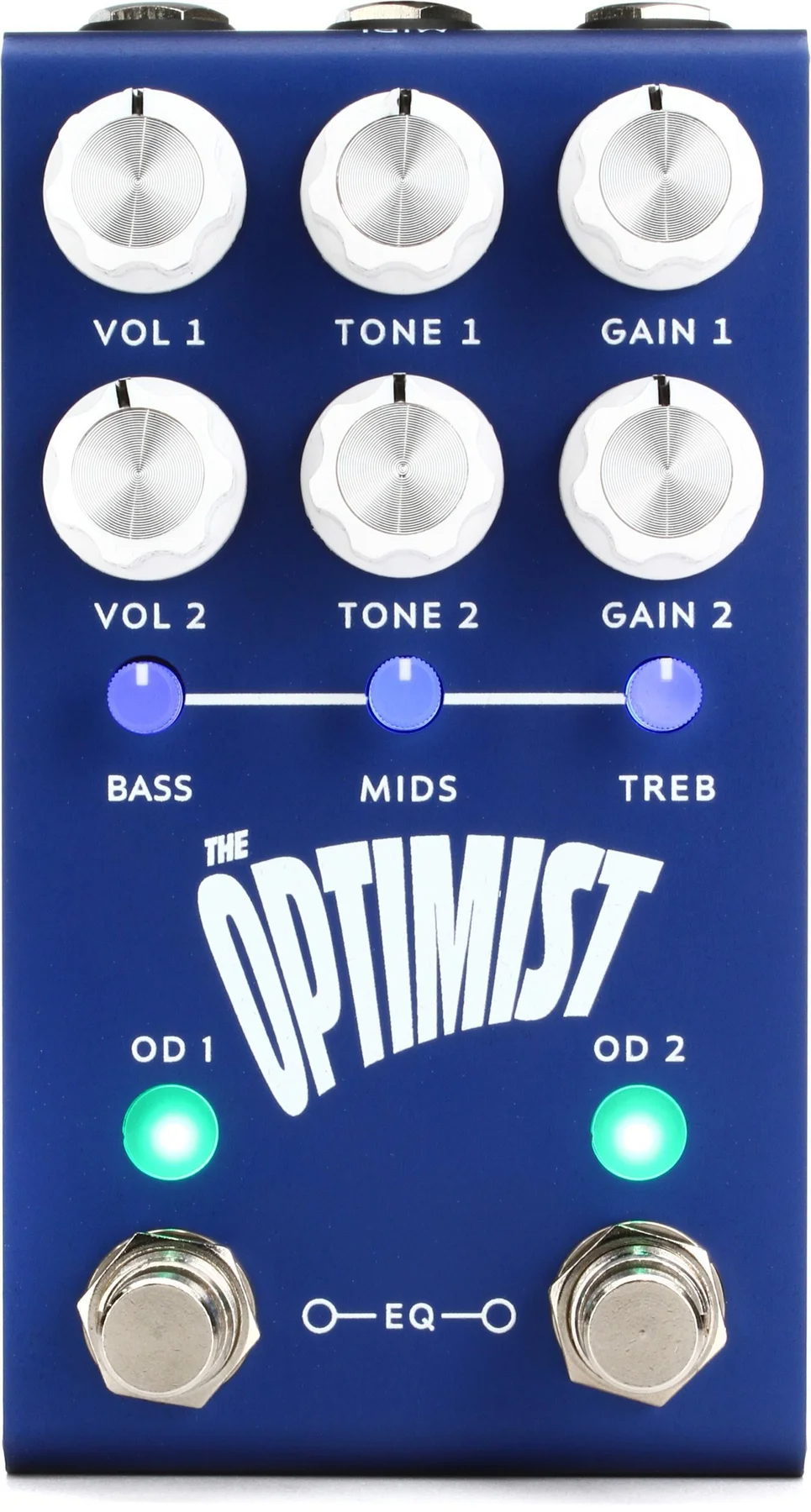

Jackson Audio THE OPTIMIST Cory Wong Signature Dual Overdrive Pedal

OD1 of the OPTIMIST is based on the most expensive, hard-to-find, mythical overdrive ever created! For all of its hype, this magical pedal is still one of the most natural-sounding overdrives ever created and has cemented its reputation in the history of guitardom.

We reproduced this circuit in perfect detail to provide the stock tone that people are looking for from this legendary pedal. We updated it with an active EQ (bypass-able) to take this classic circuit into uncharted territory!

Just like the original circuit, OD1 features impossible to find (unless you know how to use eBay) germanium diodes that have been carefully washed in unicorn tears to deliver the best tone possible! Why? Because you deserve the best. You deserve diodes that have been washed in unicorn tears.

OD 2
OD2 of the OPTIMIST stands in stark contrast to the mid-focused tone of OD1. Designed to be perfectly flat across the full range of the guitar, OD2 is perfect for rhythm work and is a perfect harmonic enhancer for OD1 when you want to boost OD1 even further!

3 BAND EQUALIZER OVERVIEW
The EQ circuit features a studio-grade EQ that gives tremendous tonal flexibility to The Optimist. Based on the legendary Baxandall EQ that is featured in countless studio EQ’s, The Optimist EQ takes this circuit and tailors it for guitarists! We spent tons of time on this EQ dialing it in so it would hit all the frequencies that guitarists need to adjust and then sweetened it by removing the ear fatiguing highs and lows that can appear at extreme settings.

To activate the EQ, press and release both the OD1 and OD2 footswitches.

The EQ is post OD's and can also be used as a standalone feature. The controls for the EQ light up to show that the EQ is activated.

EQUALIZER CIRCUIT FEATURES:
Studio-grade EQ with High Bandwidth and Flat Response at 12:00
+/- 12dB Boost/Cut per control
Center Detents on the pots that make it easier to get back to a neutral or flat response.

MIDI FEATURES
The Optimist features MIDI control over all functions! OD1, OD2 and EQ can all be controlled via MIDI for an unlimited selection of tones.
We always want to make sure that our pedals are as easy to integrate into complex rigs as they are into simple rigs and MIDI makes that happen!
CABLE INFORMATION: In order to use MIDI, you will need a cable that converts a MIDI (DIN-5) connector to a TRS cable. This is the cable that we have used with great success and can't recommend it enough.

https://www.disasterareadesigns.com/shop/p/5p-trs-pro-midi-cable

For those building their own cables, The Optimist receives MIDI information via the RING connection on a TRS (Tip, Ring, and Sleeve) connector.

Check out this link for some detailed wiring: https://www.midi.org/articles- old/trs-specification-adopted-and-released

MIDI CHANNEL
By default, the The Optimist ships with MIDI Channel 1 being the selected channel. This can be changed by pressing and holding the OD 1 footswitch while applying power. Press the OD 2 footswitch to increment the MIDI channel number.

You’ll notice that as you continue to hold the OD1 footswitch, the OD 2 LED will flash to indicate which MIDI channel you have selected. IE – 7 flashes = MIDI Channel 7. After the LED flashes, we inserted a 2-second pause so you could tell when the LED was finished flashing. The LED will continue flashing as long as you are holding down the OD 1 footswitch. Once you have selected the MIDI channel you want and have verified it by counting the flashes, simply release the OD 1 footswitch and the pedal will save this MIDI Channel to the internal EEPROM on the microprocessor and reboot.

MIDI DETAILS
Accessing the new MIDI features is done by Control Changes. Below is a list of the features that can be accessed via MIDI as well as how to access them.

CC #1 – OD 1 ON/OFF (value of 127 = ON /value of 0 = OFF)
CC #2 – OD 2 ON/OFF (value of 127 = ON /value of 0 = OFF)
CC #3 – EQ ON/OFF (value of 127 = ON /value of 0 = OFF)
