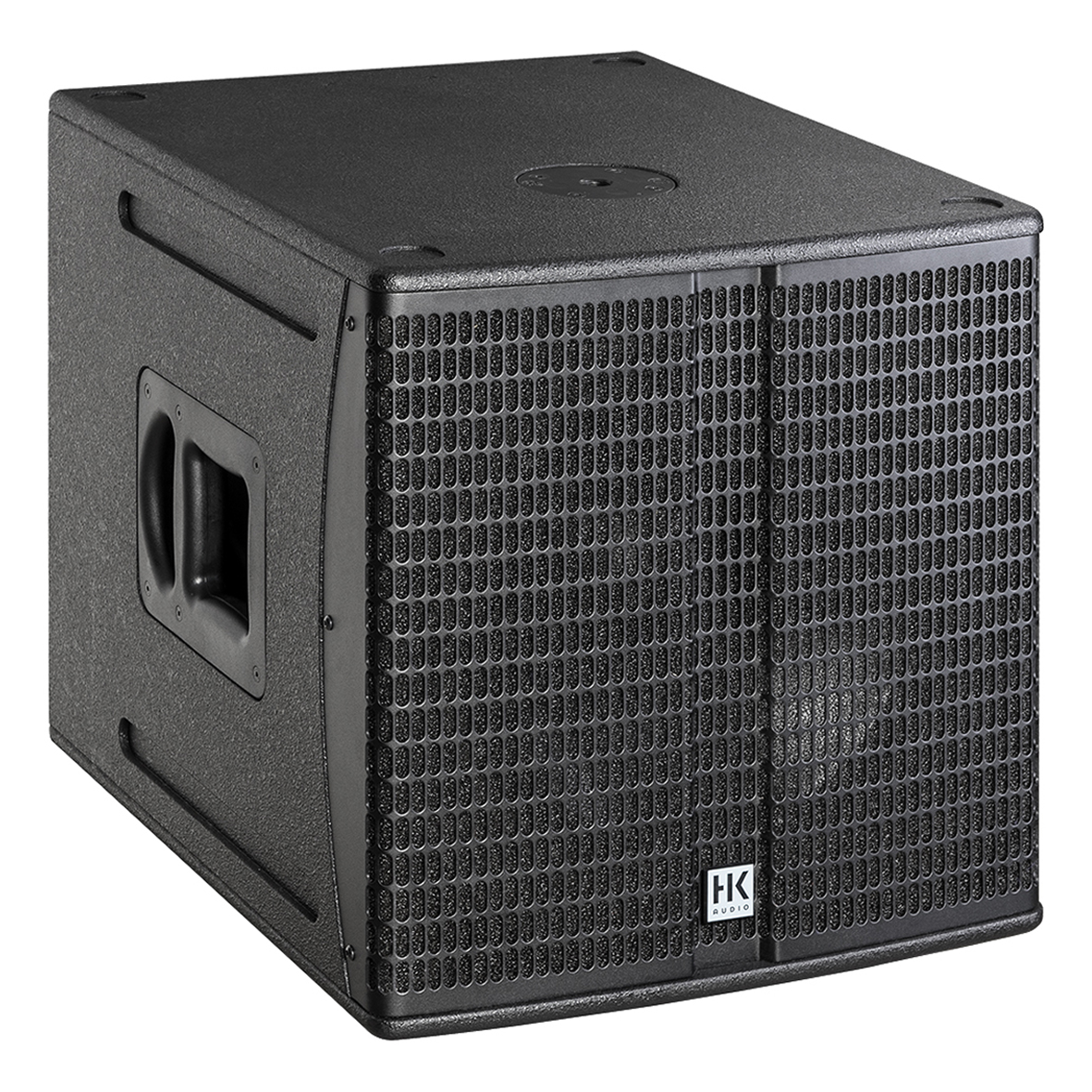

HK Audio Linear SUB 1500 A Powered 15" Subwoofer

LINEAR SUB 1500 A is a 15″ bass reflex subwoofer and a real powerhouse in a small package. A powerful punch, precise playback and an impressive low end all the way down to 45 Hz make this active sub the ideal add-on for the LINEAR 3 mid/high units when dynamic and tight bass is required. It can also be used with LINEAR 5 mid/high units or as a bass extension to the ELEMENTS EASY BASE, SMART BASE and LINE BASE systems.

Max. SPL @ 10% THD
130 dB half space (40 Hz – X-Over averaged)
Max. SPL peak @ 10 % THD
132 dB half space
Frequency response +/-3 dB
49 Hz – X-Over
Frequency response -10 dB
45 Hz – X-Over
Power amp output (peak power)
1200 W
Amp type
Class D
Active protection circuits
Undervoltage-Protection, Thermoprotection, Short-Circuit-Protection, Overcurrent-Protection, Subsonic 24 dB/oct., Peak-Limiter
LF driver
1x 15", 3" voice coil
Active crossover frequency
100 Hz / 120 Hz variable with 24 dB/oct.

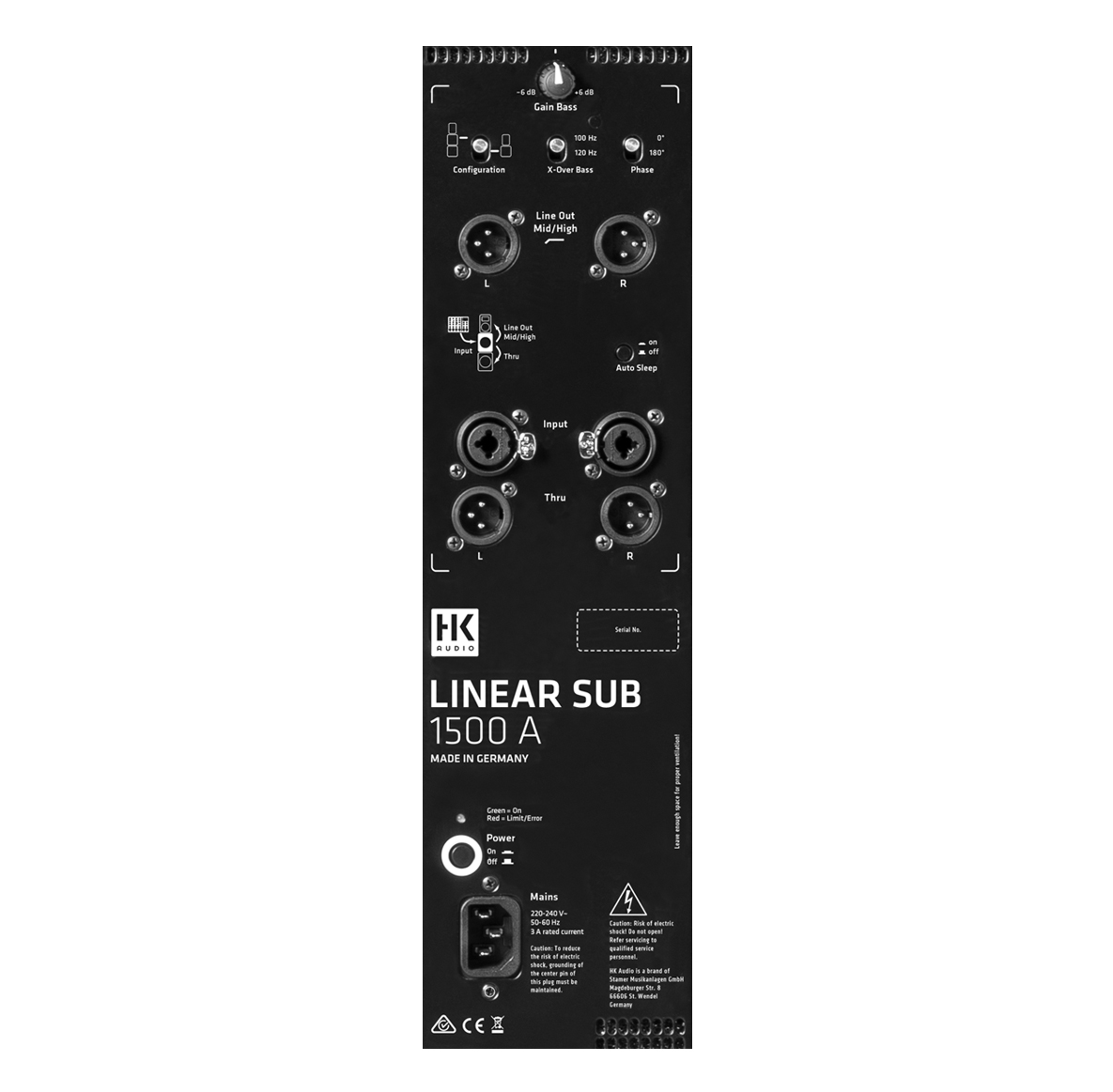

Analog inputs
2x XLR combo balanced
Analog outputs
2x XLR Thru balanced, 2x XLR Mid/High Out
Input sensitivity
+4 dBu @ Gain center-notched
Mains connector
1x IEC socket with V-Lock cord retainer
Power consuption
3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065

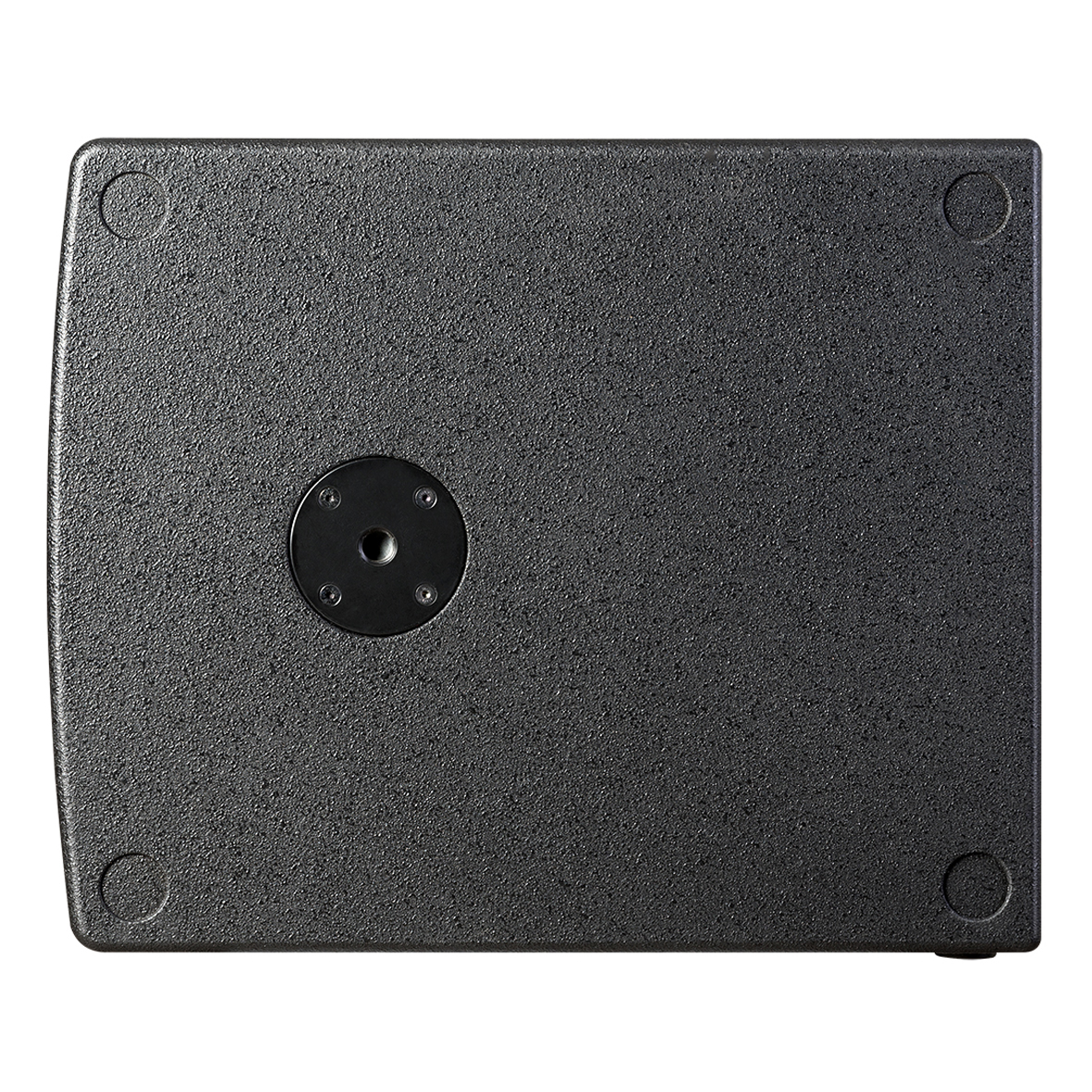

Pole mount
1x M20

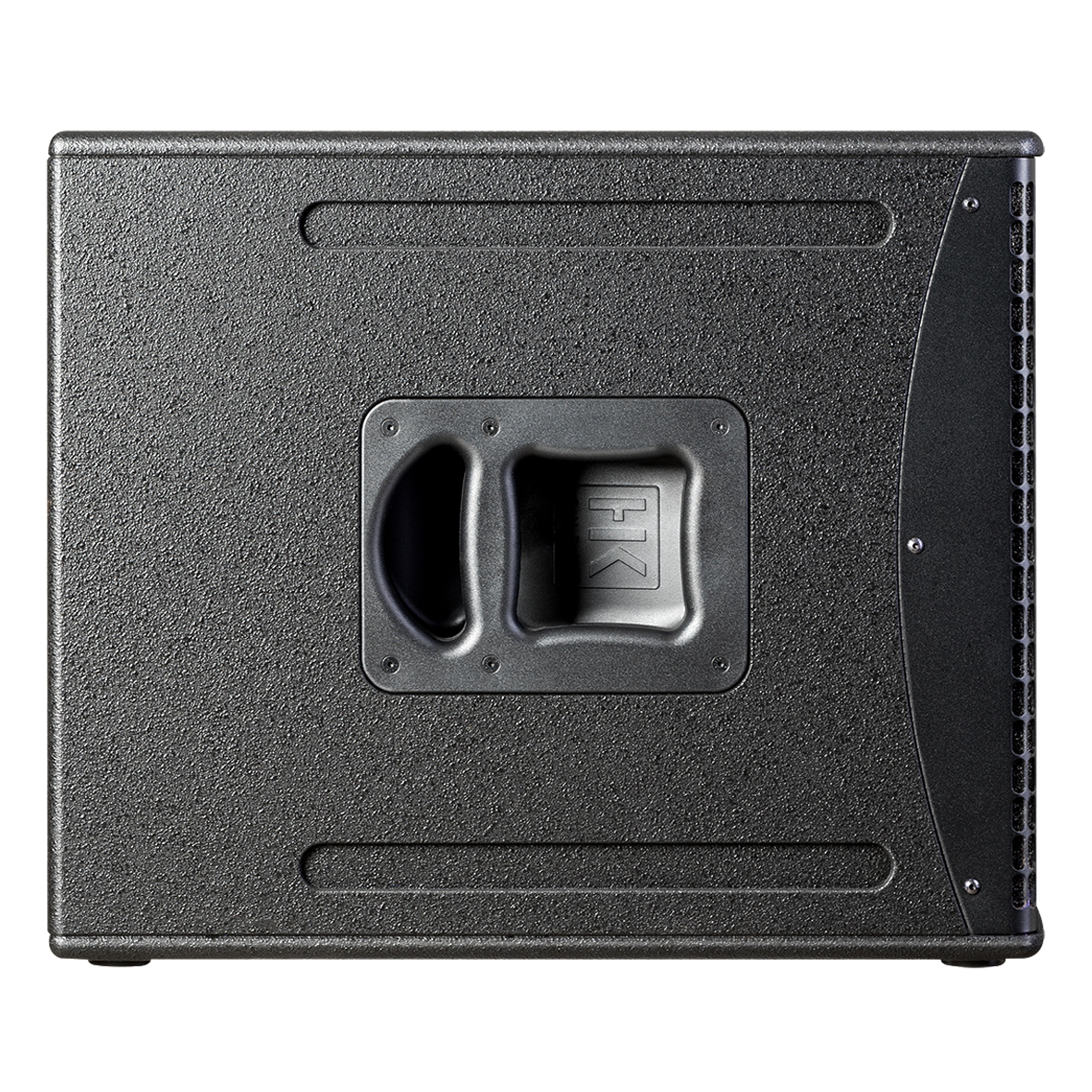

Carrying handles
2x MultiGrip
Housing
16 mm MDF
Finish
Black acrylic enamel
Front grille
2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)
48.5 x 48.5 x 59.5 cm 19-3/32 x 19-3/32 x 23-27/64"
