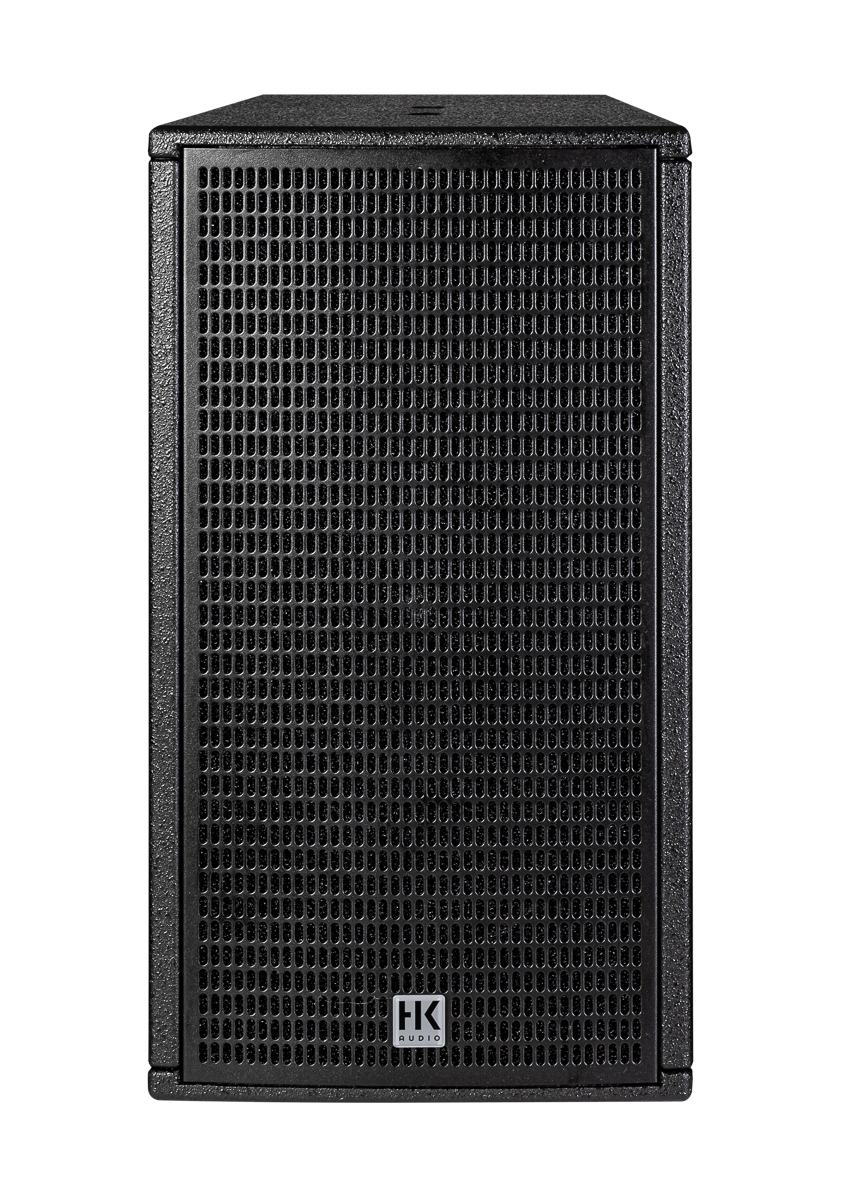

HK Audio FINEO FO 8 8" Passive Loudspeaker

The compact FINEO FO 8 is designed as a passive 2-way system and has a modern, ultra-slim and space-saving trapezoidal cabinet. With its 8" cone speaker with 1.75" voice coil, the FO 8 provides a solid foundation for speech or near-field sound reinforcement and balanced mids in combination with the S112, S118 or S218 subwoofers.

The BEM-optimized constant directivity horn with the powerful 1" compression driver, which is well-known from the CONTOUR X series, specially developed for the rough and tumble of touring, has a dispersion angle of 80° x 60° and thus delivers a large sound area without causing excessive acoustic excitation on the walls or ceilings.

The horn can be rotated, meaning that the FO 8 can be used upright, on its side or with altered horizontal and vertical dispersion. The compact speaker can therefore always be positioned optimally, even in small or architecturally complex rooms.

Compact, passive 2-way speaker
Support for Lab.Gruppen IPX and LEA Professional with DSP Presets and other DSP platforms with Filter Sheets in open table format
Rotatable, BEM-optimized constant-directivity HF of the latest generation from the CONTOUR X family
All-new passive crossovers with self-healing HF protection circuit for maximum operational reliability in fixed installations
Swivel and tilt wall bracket allows space-saving and visually appealing installation with precise alignment options at the same time
Matching U-brackets allow for flown installation on ceilings, with the brackets allowing for precise angle adjustments
Hole pattern on the back in the internationally standardised VESA format for attaching additional mounting accessories required for the particular application
An external 35 mm stand flange can be attached so that the new FINEO speakers can be fitted to existing installations with appropriate wall brackets
Extremely solid enclosures in acoustically beneficial MDF and foam-backed grille with additional steel reinforcements

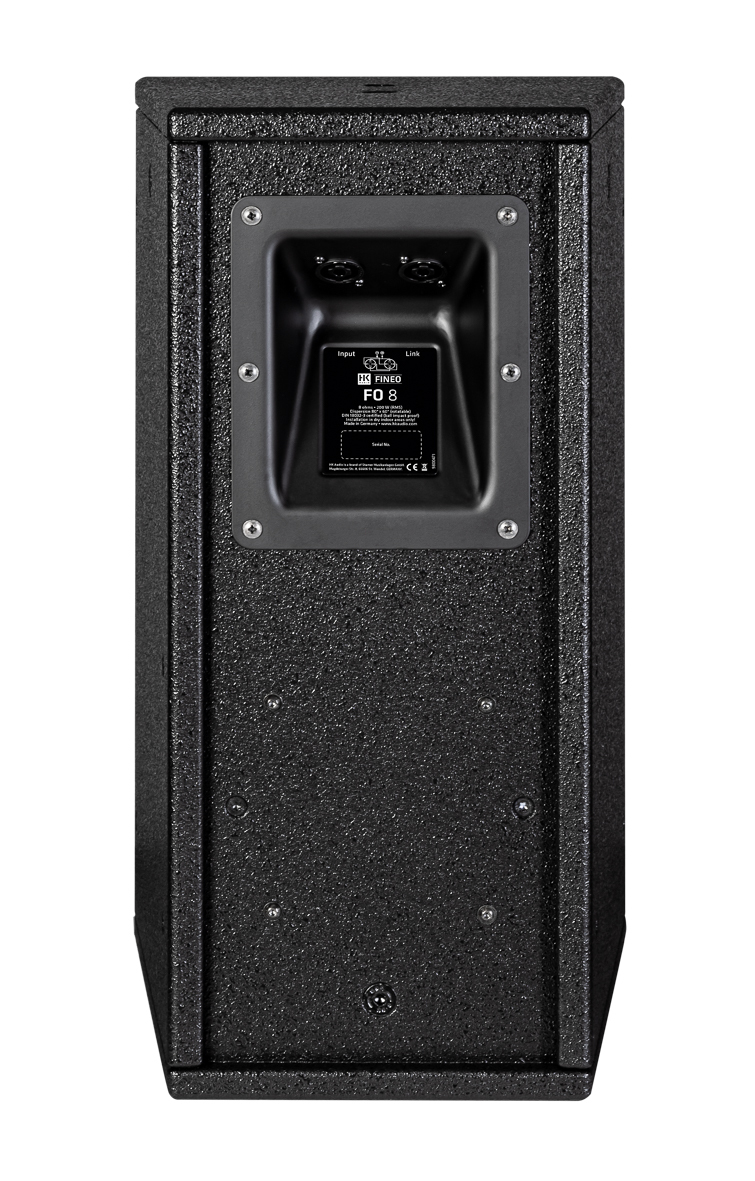

Standard design with 2 lockable Neutrik Speakon sockets
Simulation data for EASE and EASE FOCUS for predicting sound distribution and speech intelligibility as planning support for larger projects
Certified ball-impact resistant in line with DIN 18032-3
FINEO FO 8 U-bracket

FO 8 U-bracket made of high-strength powder-coated steel for fixed installation of an FO 8. Simple installation on the top and bottom of the cabinet by hanging it into hook openings. Adjustable tilt in 15° increments. Ball-impact resistance certificate in line with DIN 18032-3.

Swivel and tilt wall mount S (VESA MIS-D)

Swivel and tilt bracket for mounting a speaker on a wall. Continuous horizontal rotation and vertical tilt in 10° increments from 0° to 30°. Mounted using the VESA hole pattern (MIS-D) on the back of the speaker.

SF-35

External 35 mm flange for use on a standard 35 mm speaker stand. Simple screw connection to the underside of the speaker. Easy-to-use locking screw to lock the speaker to the stand without tools.

BWH-1

Wall bracket with adjustable 30 cm arm and backstop for mounting a speaker on a wall. This allows for flexible speaker placement on the wall bracket. The arm can be rotated up to 120° and tilted 45°.

AP-8

Attachment points with unscrewing protection for mounting on a ceiling or crossbeam. Simple attachment to the M8 mounting threads. Available in sets of 3 or 4 AP-8s as well as individually.
