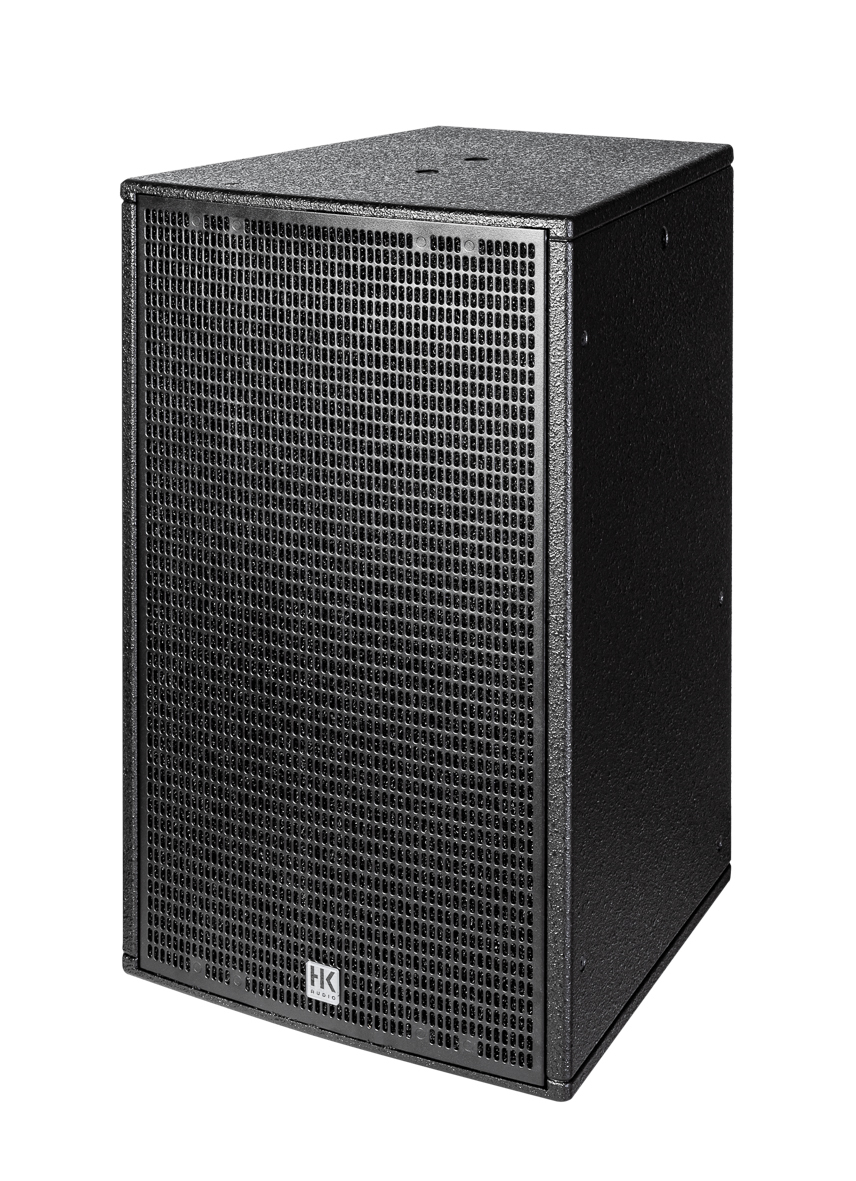

HK Audio FINEO FO 12 12" Passive Loudspeaker

FINEO FO 12

In this newly fine-tuned speaker system, the proven standard format with a 12"" low-frequency woofer and a high-resolution 1"" high-frequency driver, provides the ideal compromise between achievable sound pressure and low colouration in the reproduction of all types of music and speech.

The BEM-optimized constant directivity horn with the powerful 1"" compression driver comes from the CONTOUR X series, which was developed for the rough and tumble of touring. With a dispersion angle of 80° x 60° and the ability to rotate 90°, it always delivers the optimum dispersion pattern whether it is used horizontally or vertically.

In combination with subwoofers such as the S118 or S218, the result is a very powerful system that can reproduce modern music styles at a high level without any restrictions. The FO 12 can also be used for larger venues, provided that further-away areas of the room are boosted with delay speakers (e.g. with the FO 5, which can be installed unobtrusively).

• Compact, passive 2-way speaker
• Support for Lab.Gruppen IPX and LEA Professional with DSP Presets and other DSP platforms with Filter Sheets in open table format
• Rotatable, BEM-optimized constant-directivity HF of the latest generation from the CONTOUR X family
• All-new passive crossovers with self-healing HF protection circuit for maximum operational reliability in fixed installations
• Swivel and tilt wall bracket allows space-saving and visually appealing installation with precise alignment options at the same time
• Matching U-brackets allow for flown installation on ceilings, with the brackets allowing for precise angle adjustments
• Hole pattern on the back in the internationally standardised VESA format for attaching additional mounting accessories required for the particular application
• An external 35 mm stand flange can be attached so that the new FINEO speakers can be fitted to existing installations with appropriate wall brackets
• Extremely solid enclosures in acoustically beneficial MDF and foam-backed grille with additional steel reinforcements

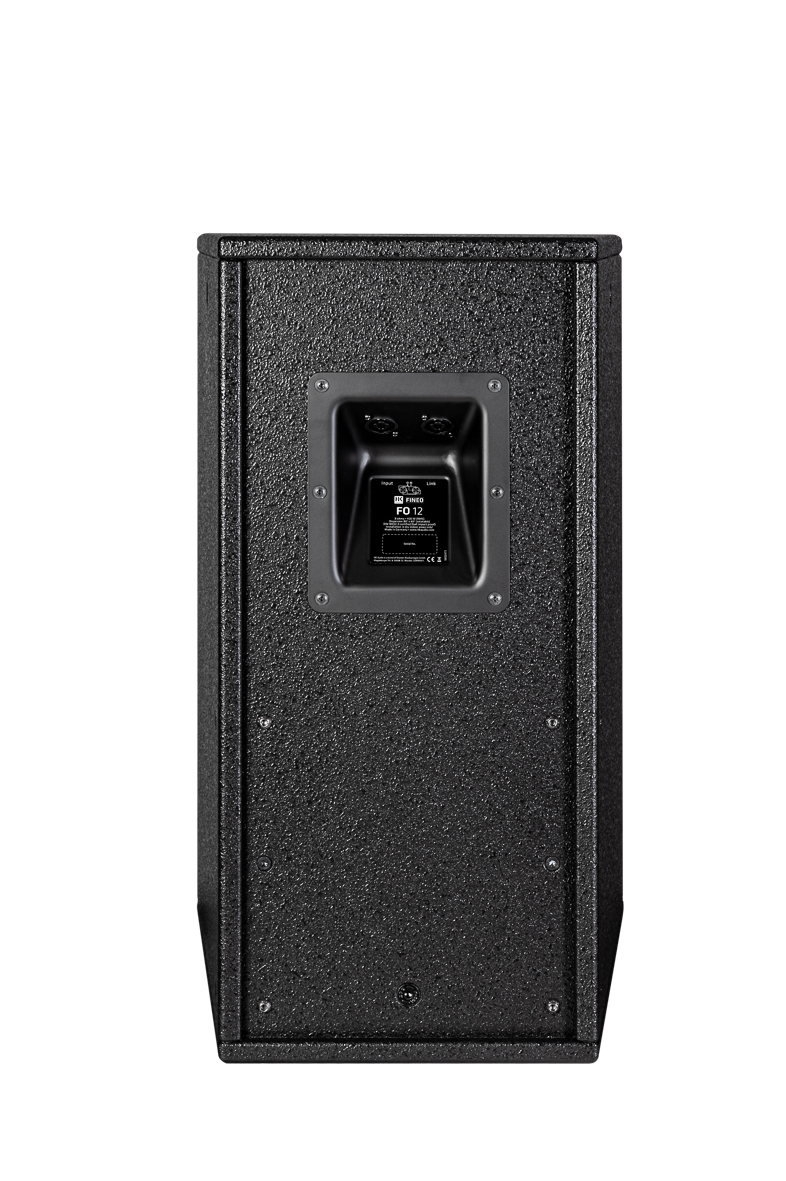

• Standard design with 2 lockable Neutrik Speakon sockets
• Strongly constructed internal steel braces and mountings for the rigging and fixing points as standard, guaranteeing a secure fixed installation in compliance with strict German and European standards
• Simulation data for EASE and EASE FOCUS for predicting sound distribution and speech intelligibility as planning support for larger projects
• Certified ball-impact resistant in line with DIN 18032-3

FINEO FO 12 U-bracket

FO 12 U-bracket made of high-strength powder-coated steel for fixed installation of an FO 12. Simple installation on the top and bottom of the cabinet by hanging it into hook openings. Adjustable tilt in 10° increments. Ball-impact resistance certificate in line with DIN 18032-3.

Swivel and tilt wall mount L (VESA MIS-E)

Swivel and tilt bracket for mounting a speaker on a wall. Continuous horizontal rotation and vertical tilt in 10° increments from 0° to 30°. Mounted using the VESA hole pattern (MIS-E) on the back of the speaker.

SF-35

External 35 mm sleeve for use on a standard 35 mm speaker stand. Simple screw connection to the underside of the speaker. Easy-to-use locking screw to lock the speaker to the stand without tools.

BWH-1

Wall bracket with adjustable 30 cm arm and backstop for mounting a speaker on a wall. This allows for flexible speaker placement on the wall bracket. The arm can be rotated up to 120° and tilted 45°.

AP-8

Attachment points with unscrewing protection for mounting on a ceiling or crossbeam. Simple attachment to the M8 mounting threads. Available in sets of 3 or 4 AP-8s as well as individually.
