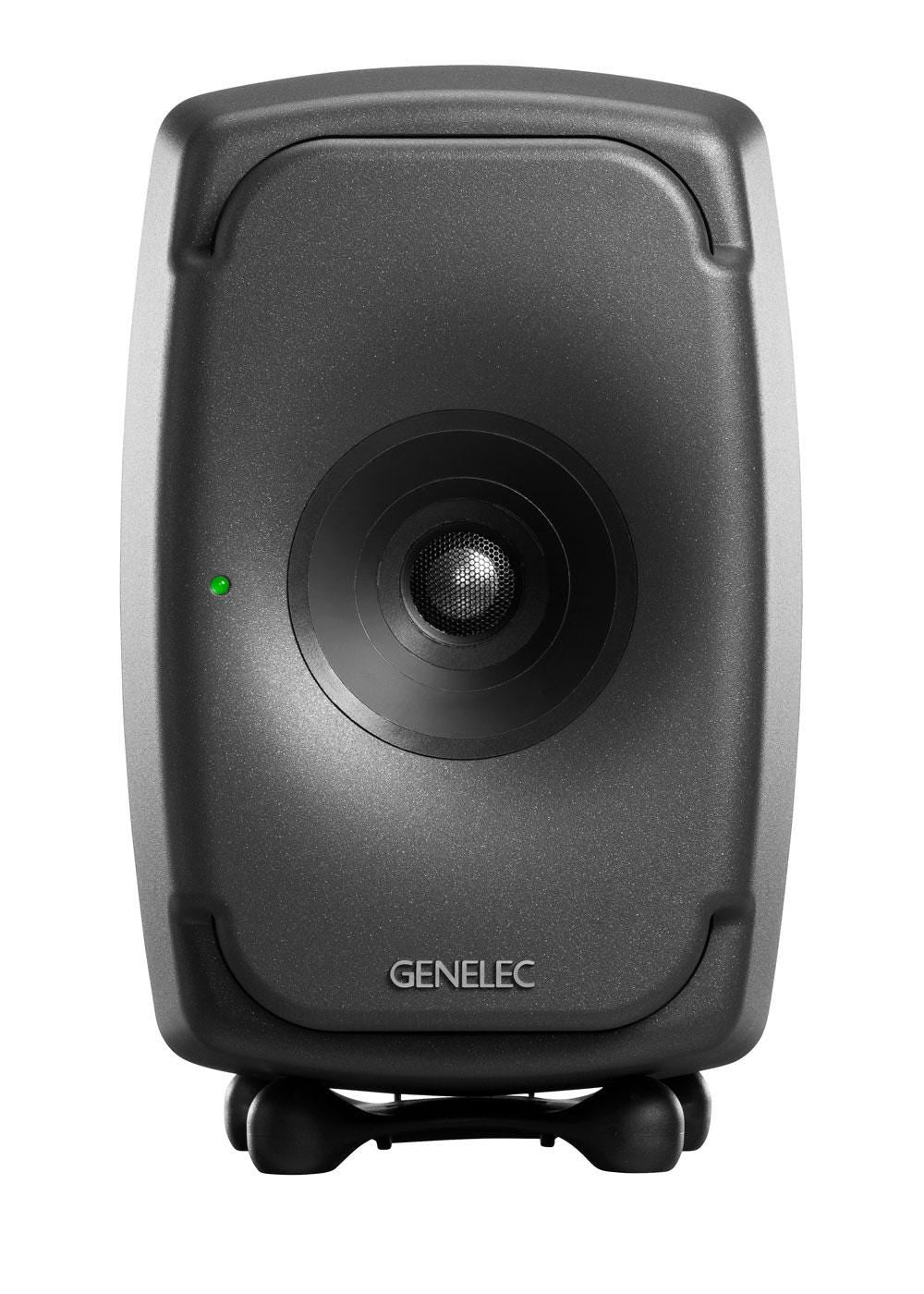

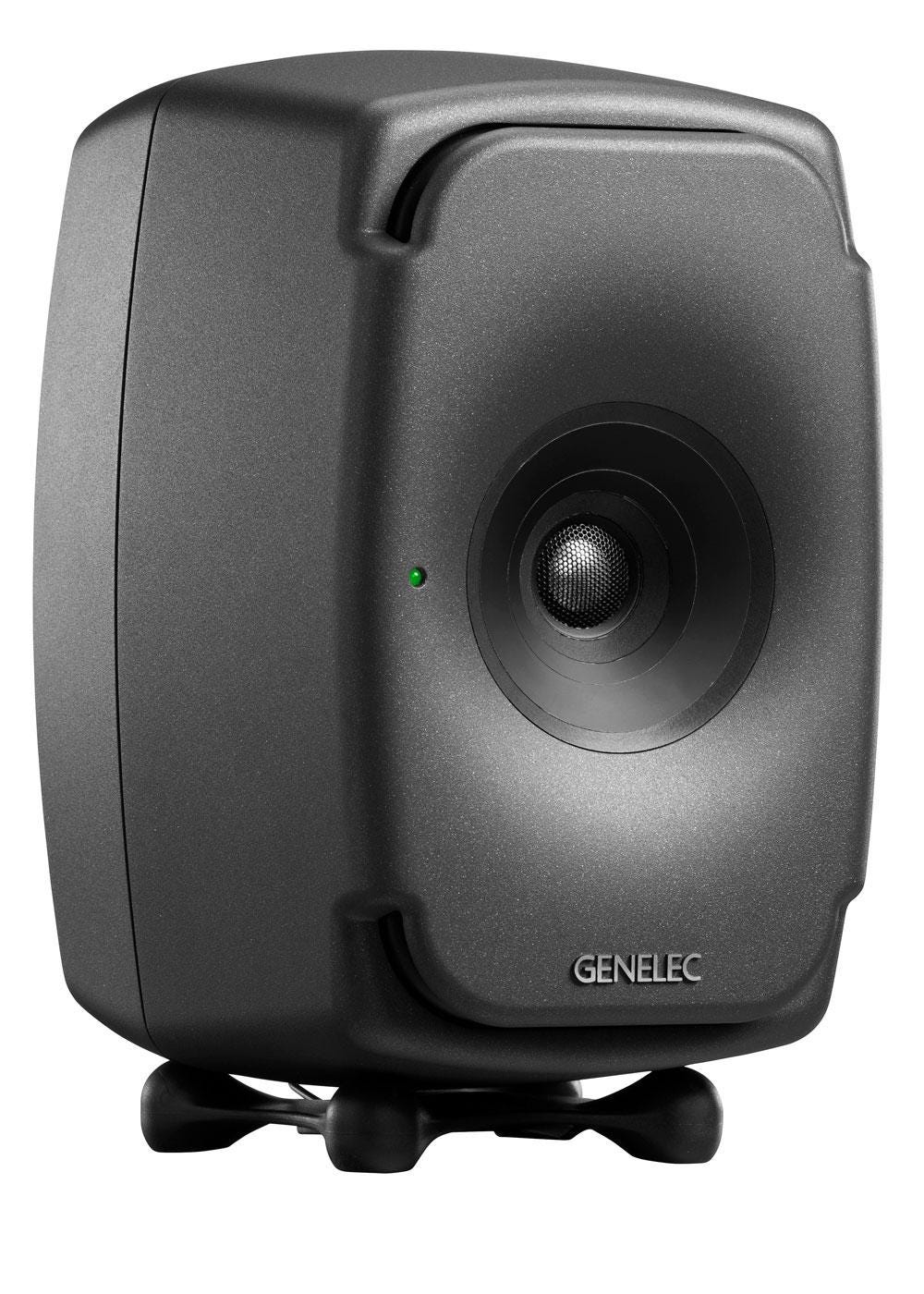

Genelec 8331A SAM 3-Way Active Monitor (Single)

Incredible three-way point source the size of a compact two-way. When space and precision is of the essence, nothing even comes close.

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones - 8331, 8341 and 8351 - are in an elite league of their own. All being ultimate point source monitors, they combine a number of unique Genelec innovations with sustainable manufacturing, but without a single compromise on sound.

The Ones not only promote faster and more consistent production decision making, but also longer listening time than traditional loudspeakers, because unnatural imaging, a main contributor to listener fatigue, is minimized. Dispersion is controlled over an unusually wide frequency range thanks to the large integrated waveguide (DCW™) with the hidden dual woofers; and orientation may be either horizontal or vertical. Their looks are striking too, either way you turn them.

The final touch when positioning mics, mixing or mastering is the most demanding. For such critical tasks, even when performed in small rooms or in ultra near field applications, 8331 offers an outstanding solution where none existed before. With the latest SAM technology included, 8331 always makes the best of the room and monitor placement. Use the Genelec GLM application and its auto-calibration function, based on experience from thousands of studios around the world, to compensate for detrimental room influence and delay, regardless if you work in mono, stereo or immersive formats.

Key Technologies

• Smart Active Monitor (SAM™) Systems

• Minimum Diffraction Coaxial (MDC™) Driver Technology

• Acoustically Concealed Woofers (ACW™) Technology

• Directivity Control Waveguide (DCW™) Technology

• Minimum Diffraction Enclosure (MDE™) Technology

• Reflex Port Design

• Protection Circuitry

• Intelligent Signal Sensing (ISS™) Technology

• Optimized Amplifiers

• Active Crossovers

• Iso-Pod™ Stand

• Versatile Mountings

Technical specifications

• SPL104 dB

• Frequency response45 Hz - 37 kHz (-6 dB)

• Accuracy of frequency response± 1.5 dB (58 Hz - 20 kHz)

• Driver dimension2x Oval Woofers 5 1/8 x 2 5/8 inch + Coaxial Midrange/Tweeter MDC™ 3 ½ / 3/4 inch + DCW™

• Amplifier powerWoofer 72 W + Midrange 36 W + Tweeter 36 W

• DimensionsH 305 x W 189 x D 212 mm H 12 x W 7 1/2 x D 8 3/8 inch, with Iso-Pod™

• Weight6.7 kg / 15lb

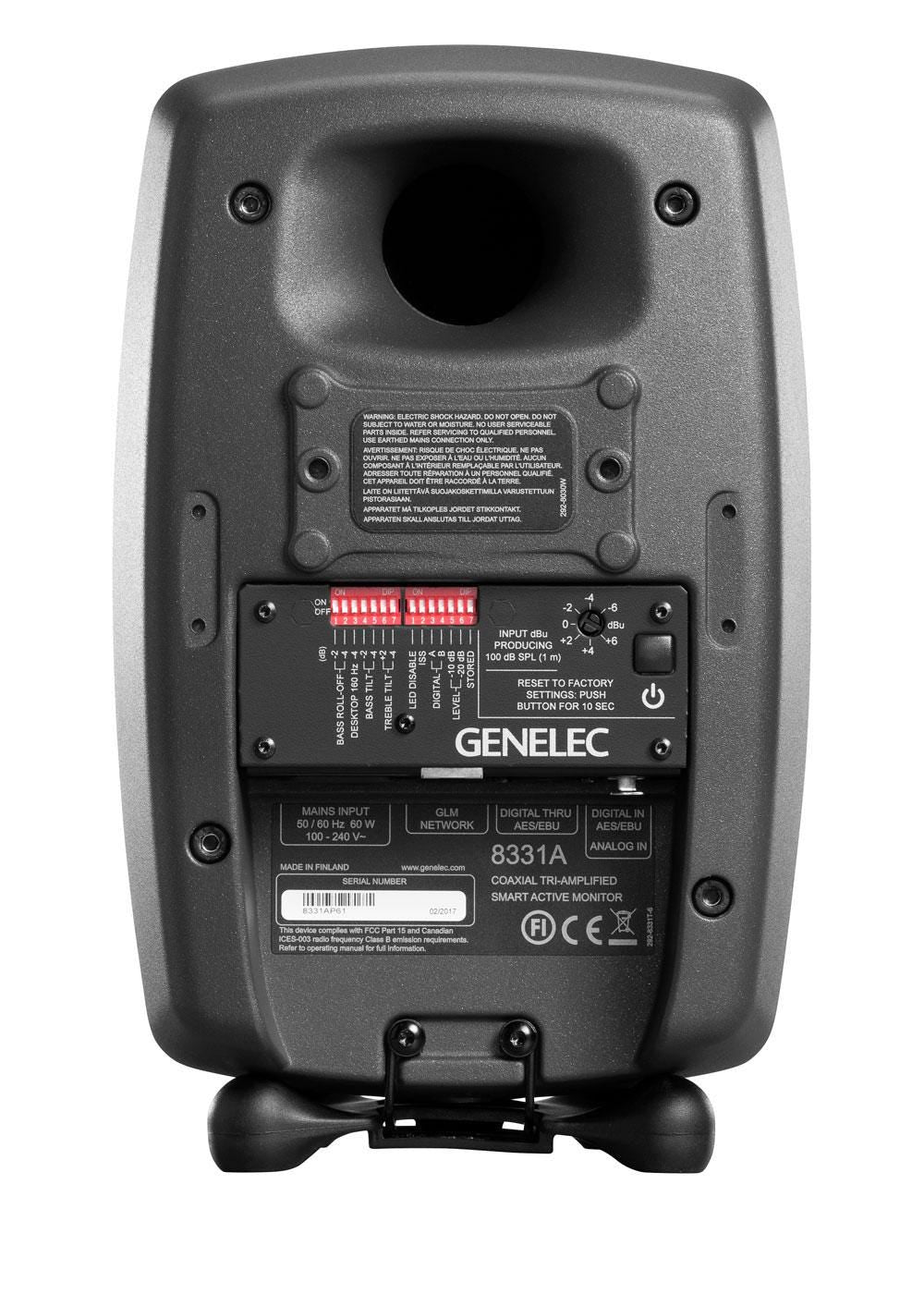

• Connections1 x XLR analog/digital AES/EBU input, 1 x XLR digital AES/EBU output, 2 x RJ45 control network
