Friedman TOURPRO 1520 PLATINUM Pedalboard w/Power Supply and Buffer Bay

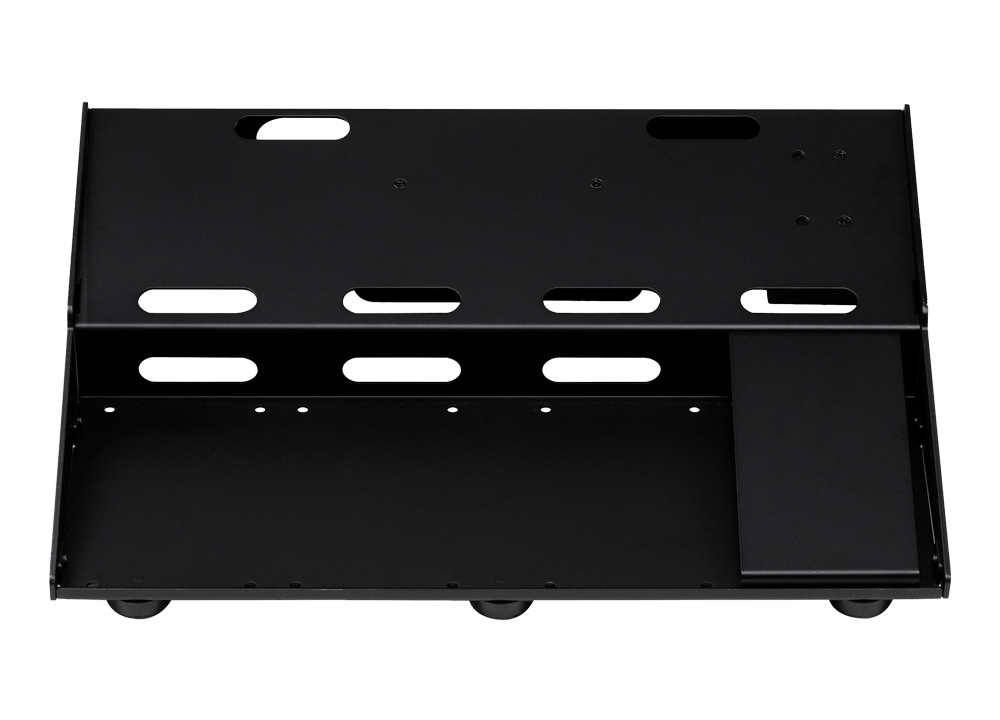

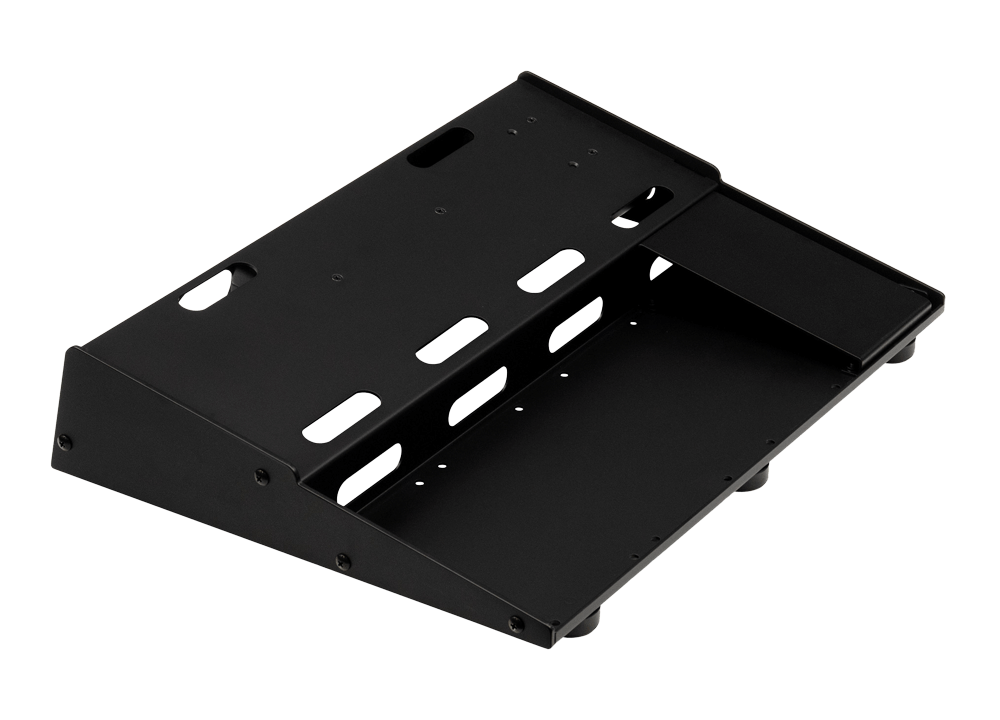

While most pedal boards have either a flat or a slanted surface, the TOUR PRO boards are designed with two tiers, a bottom section that is flat and a top section that is angled (with all the holes needed for easy cable routing). This two-tier design allows a guitar player to have access to all pedals on the board, without ballerina style, toe-extending dance moves. And, to address the need for Wah and/or Volume pedals, the TOUR PRO 1520 includes a detachable riser, which can be mounted in various locations on the bottom tier (yes – we thought of left footed guitar players too).

Platinum package includes Friedman power grid 10 (isolated high current 9v pedal power supply) & Friedman buffer bay 6 (buffer and patch bay).

Powergrid 10 Key Features

1) Universal power from 100-240Vac meaning you can plug it in anywhere in the world. You will never have to flip switches or worry about a step up or step down transformer.

2) ZERO field hum, which plagues many other power supplies with traditional toroidal transformers.

3) The Power Grid 10 will power virtually any pedal (350mA each per 9V output)

4) 10 isolated outputs and all the cables needed to power your pedals.

5) And for those boards that have no room to mount the power supply underneath, the Power Grid 10 was designed as a riser – yes, with the Power Grid 10 you can mount your pedals right on top of the housing, including your favorite Fuzz pedals, which are known to cause unnecessary proximity hum and infiltrate your other pedals.

Cables included

2 x 2.1mm BLACK connector to 2.5mm BLUE connector – polarity reversed – 20″ long – right angle connector on both sides,10 x 2.1mm BLACK connector to 2.1mm BLACK connector – regular polarity – 20″ long – right angle connector on both sides.

1 x 2.1mm BLACK connector to 1/8″ phono BLACK connector – 20″ long – right angle connector on 2.1mm connector.

1 x 18 V cable – 2.1mm BLACK connector with additional 2.1mm slave connector on one side to 2.1mm BLACK connector – regular polarity – 20″ long – right angle connector on both sides.

Buffer Bay 6

The Friedman Buffer Bay is a simple solution that incorporates Dave’s wealth of experience and knowledge providing players an innovative tool which can be easily implemented to ANY pedal board or easily mount into any Friedman branded pedal board.

The Buffer Bay 6 includes 5 identical 1/4″ TRS (tip, ring, sleeve) in and out connections and a Buffered TS (tip, sleeve) connection (can be turned ON/OFF via switch). It also provides a 7 pin MIDI thru connection. The Buffer Bay 6 can be used for a wide variety of connection schemes. Once the Buffer Bay is configured on your board, simply plug your guitar and amp in and you no longer have to fight with your first and last pedals.

Using an extra patch cable you can easily go from using an amp with an effects loop to using one without.

Specifications
Ultra-transparent, natural and musical sounding buffer
5 identical 1/4″ TRS (tip, ring, sleeve) in and out connections
Buffered TS (tip, sleeve) connection (can be turned ON/OFF via switch)
7 pin MIDI thru connection
