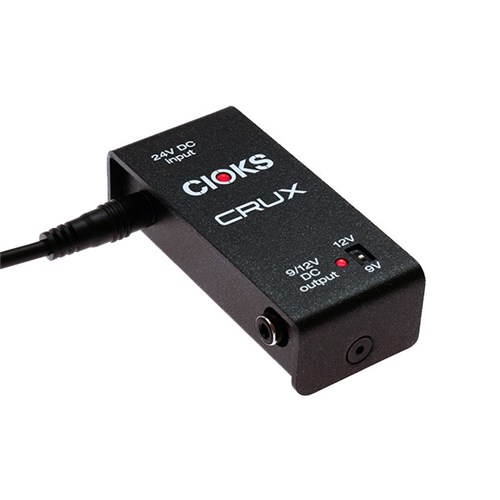

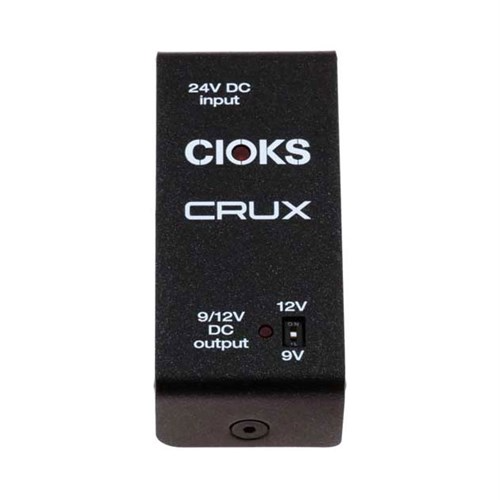

Cioks CRUX Isolated 9/12V Hi Current Output Add-on for DC7

CIOKS CRUX is the ultimate add-on to CIOKS DC7 if you are using a Neural DSP Quad Cortex, a Line 6 HX-series pedal or another power-hungry 9V or 12V multi-effects pedal.

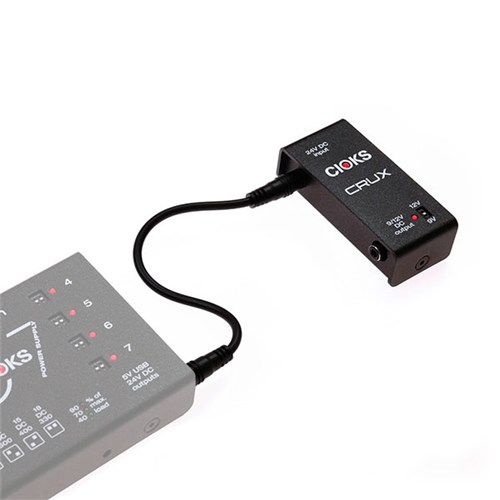

Simply connect the CRUX to the 24V outlet on DC7, set the correct voltage on CRUX, connect the appropriate CIOKS Flex cable from CRUX to your multi-effect pedal and you are good to go.

Using CRUX frees up the outlets on DC7 that would otherwise be needed to run these devices (for instance four for a Neural DSP Quad Cortex and two outlets for a Line HX Stomp), allowing you to run more pedals along with your multi-effects device. CRUX therefore provides a simpler, more reliable setup and gives you more options for connecting additional pedals.

SPECIFICATION
Future Power Generation high current addon for DC7
Profile of only 2.5 cm
Powers a Neural DSP Quad Cortex with DC7 saving you 4 outlets on the DC7
Overload and short circuit protected outlet
Overvoltage protected outlet protecting your equipment

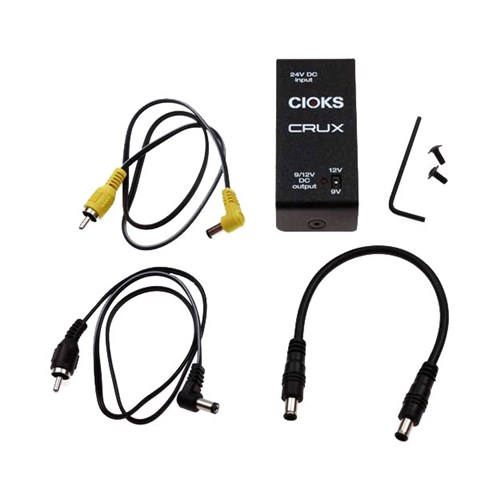

24V DC Link cable included
Mounting hardware for Pedaltrain and Templeaudio boards and hex-key included
Compatible with CIOKS miniGRIP for drill-free mounting on Pedaltrain boards (sold separately)
2 Flex cables included:1 x Flex 1050 – black with 5.5/2.1 mm centre negative DC plug, 50 cm
1 x Flex 3050 – yellow with 5.5/2.5 mm centre positive DC plug, 50 cm
Designed in Denmark, assembled in Europe
