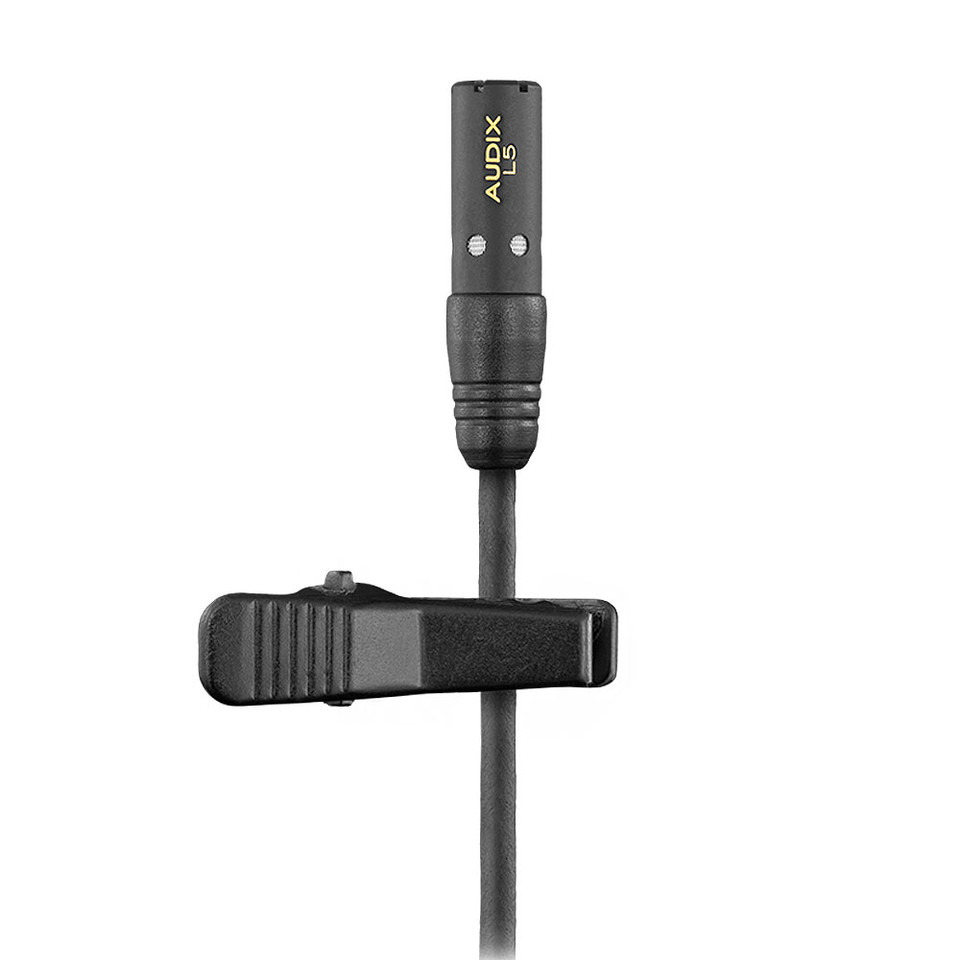

Audix ADX-L5O Micro Lavalier Condenser Microphone Omni

L5 OmniDIRECTIONAL
The L5 is a micro-sized (5 mm) Cardioid condenser microphone also available with an Omnidirectional polar pattern. The L5, which features modular, interchangeable capsules, is intended for use with the Audix wireless systems as well as hard-wired vocal and instrument applications.

Designed to provide the highest quality sound in the smallest possible package, the L5 miniature condenser is ideal for broadcast and live sound applications including speech, interview, presentation, theatrical production, and instruments (guitar, violin). The L5 has clarity, a low profile, ease of operation, and the ability to accurately capture and reproduce vocals from 4?- 8? or acoustic instruments from 1?- 2?.

With a smooth and accurate frequency range of 20 Hz – 20 kHz for L5O and 40 Hz – 20 kHz for the L5, these microphones are lightweight and discreet.

Manufactured to high standards and tight tolerances, the L5 Miniaturized condenser microphone features a modular threaded capsule, a machined brass body with a matte Black finish and high quality shielded microphone cable.

APS911 phantom power adapter required. Not included.

What's in the box?
1x L5 Vocal Microphone
1x MCL5 Tie clip
1x WSL5 External foam windscreen
1x P1 carrying pouch

Transducer Type
Pre-Polarized Condenser
Frequency Response
40 Hz – 20 kHz
Polar Pattern
Omni
Output Impedance
200 ohms
Sensitivity
6 mV (C) / Pa @ 1k 8 mV (O) / Pa @ 1k
Equivalent Noise Level
< 31 / 30 dB (A-Weighted)
Signal to Noise Ratio
> 63 / 64 dB
Dynamic Range
99 dB / 130 dB
Maximum SPL
> 130 / > 134 dB
Power Requirements
9-48 V Phantom Power
Cable / Connector
Shielded 3’ (L5) terminating to a miniature 3 pin XLRf connector
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish
Machined Brass / Black Finish
Weight
13 g
Length
23 mm
