Audix ADX-ADX20IP Minature Condenser for Brass & Woodwind

This microphone is primarily used for miking most reed and brass instruments. The ADX20iP has a uniformly controlled Cardioid polar pattern, which provides excellent isolation and feedback control on stage with natural sound reproduction at very close distances.

The ADX20iP condenser instrument microphone is lightweight, compact, and simple to use. Included with the ADX20iP is a gooseneck clip with spring tension for easy mounting to the bell of an instrument.

Designed, machined, assembled, and tested by Audix in the USA.

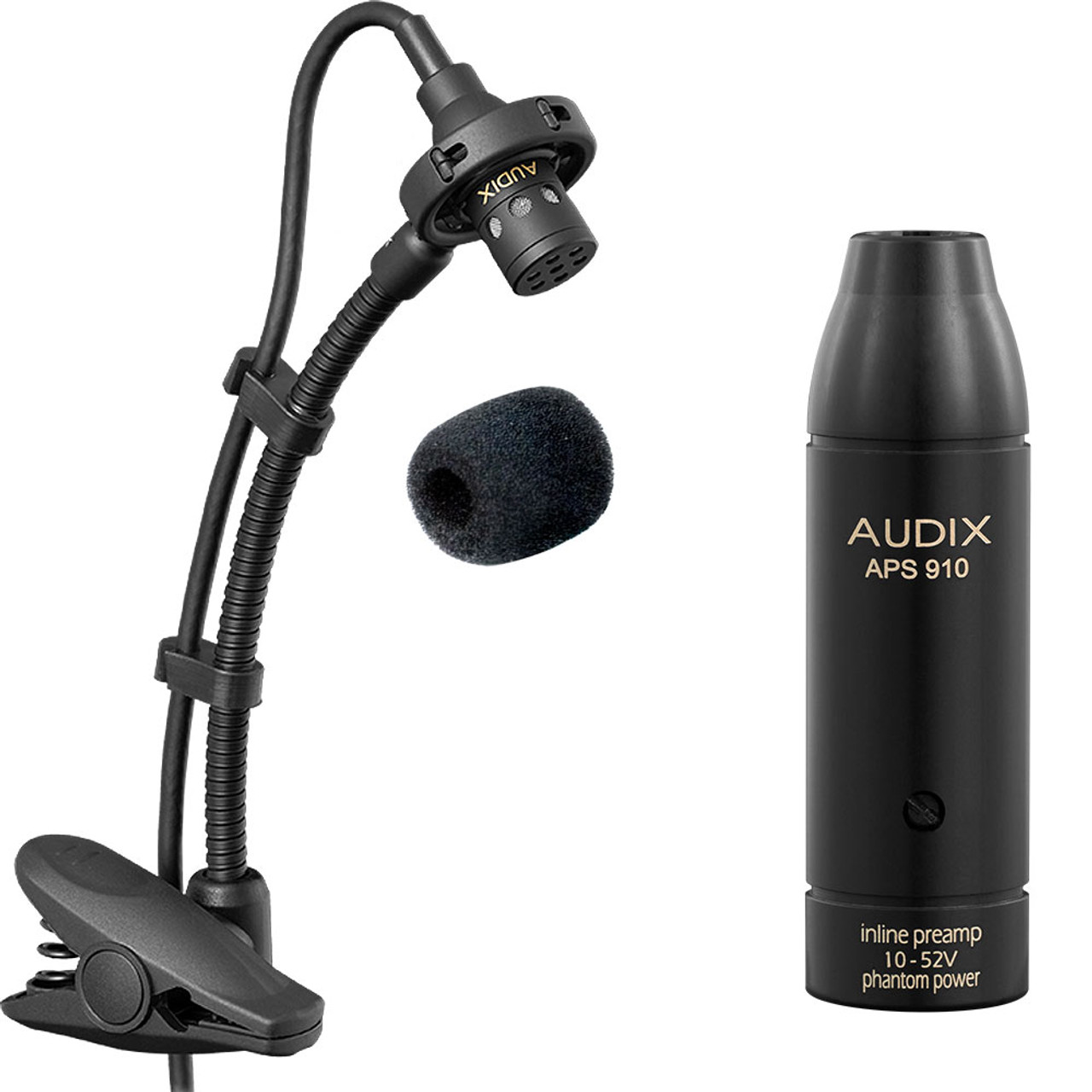

What's in the box?
1x ADX20i Instrument Microphone
1x MC20i Microphone Clip
1x WS10 External Windscreen
1x P1 Carrying Pouch
1x APS910 Phantom Power Adapter

Transducer Type
Pre-Polarized Condenser
Frequency Response
40 Hz – 20 kHz
Polar Pattern
Cardioid
Output Impedance
250 ohms
Sensitivity
Cardioid – 6 mV / Pa @ 1k Hypercardioid – 5.6 mV / Pa @1k
Equivalent Noise Level
Signal to Noise Ratio
>65 dB
Maximum SPL
≥135 dB
Power Requirements
9-52 V phantom
Connector
Shielded 6’ terminating to a miniature 3 pin XLRf
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish
Machined Brass Capsule / Black Finish
Weight
48 g
Length
29 mm
