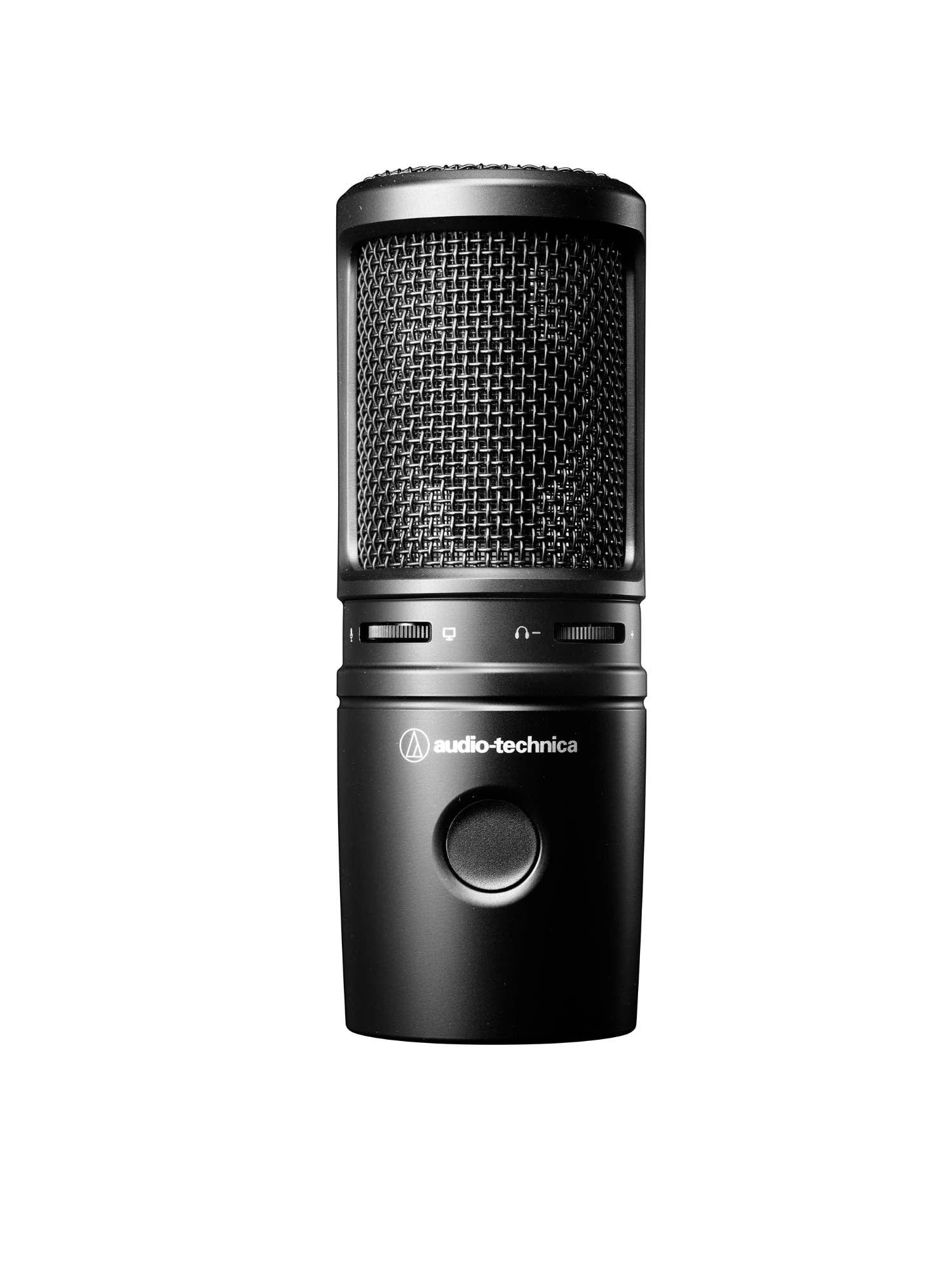

Audio Technica AT2020USB-X Cardioid Condenser USB Microphone

The AT2020USB-X is specially designed to meet the needs of podcasters, streamers, and other creators, offering the critically acclaimed, award-winning sound of the original AT2020 with the convenience of plug-and-play USB-C operation.

The microphone’s directional pickup (cardioid) keeps the focus on your voice or other chosen sound source, while its high-resolution A/D converter (up to 24-bit/96 kHz sampling rate) ensures extremely clear, natural sound reproduction. The AT2020USB-X features a built-in headphone jack with volume control to let you directly monitor the microphone signal with no delay. It also offers a mix control to let you blend the microphone’s audio with audio from the computer, and has a silent touch-sensitive mute button to quickly and easily mute audio at the microphone.

The microphone comes with a custom desk stand, 3/8"-16 to 5/8"-27 threaded adapter, USB-A - USB-C Cable and adaptor to convert the USB-A connector to a USB-C for devices that only allow a USB-C connection.

Features

Headphone output with mix control

Headphone jack with volume control allows you to monitor the microphone signal with no delay. Mix control allows you to blend your microphone signal with computer audio.

Mute button

A soft-touch capacitive mute button is conveniently located on the body of the microphone to quickly mute the microphone when required.

24-bit/96 kHz sample rate

High-resolution A/D converter with up to 24-bit/96 kHz sampling rate for extremely clear, natural sound reproduction.

USB-C output

Microphone is equipped with a USB-C output and includes a cable with USB-C and USB-A options, expanding the microphone’s compatibility and making it easier to use, now and in the future.

Two-state (blue/red) LED ring

The two-state LED indicator ring lights blue to indicate that the microphone is receiving USB power and lights red when audio is muted at the microphone.

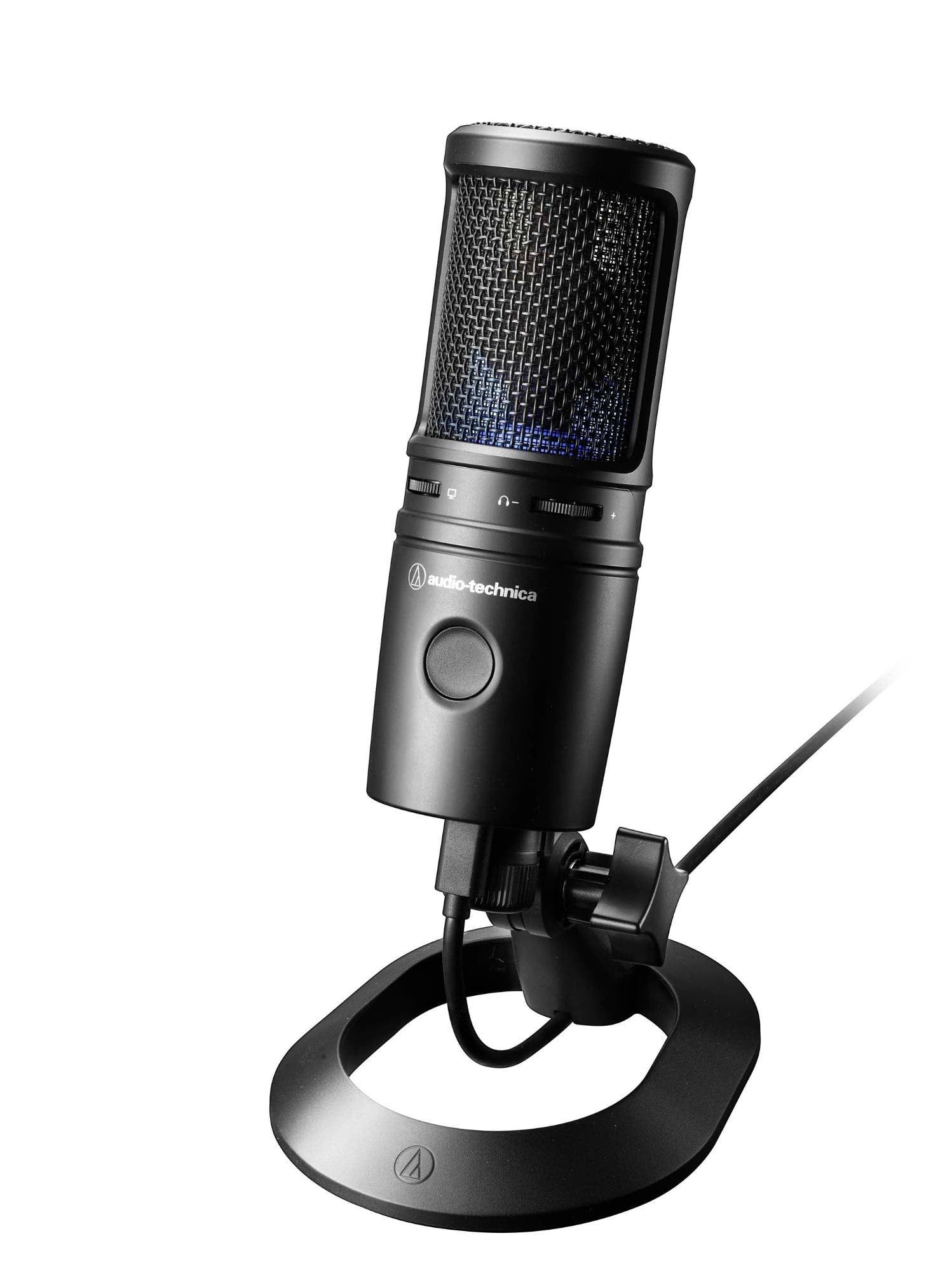

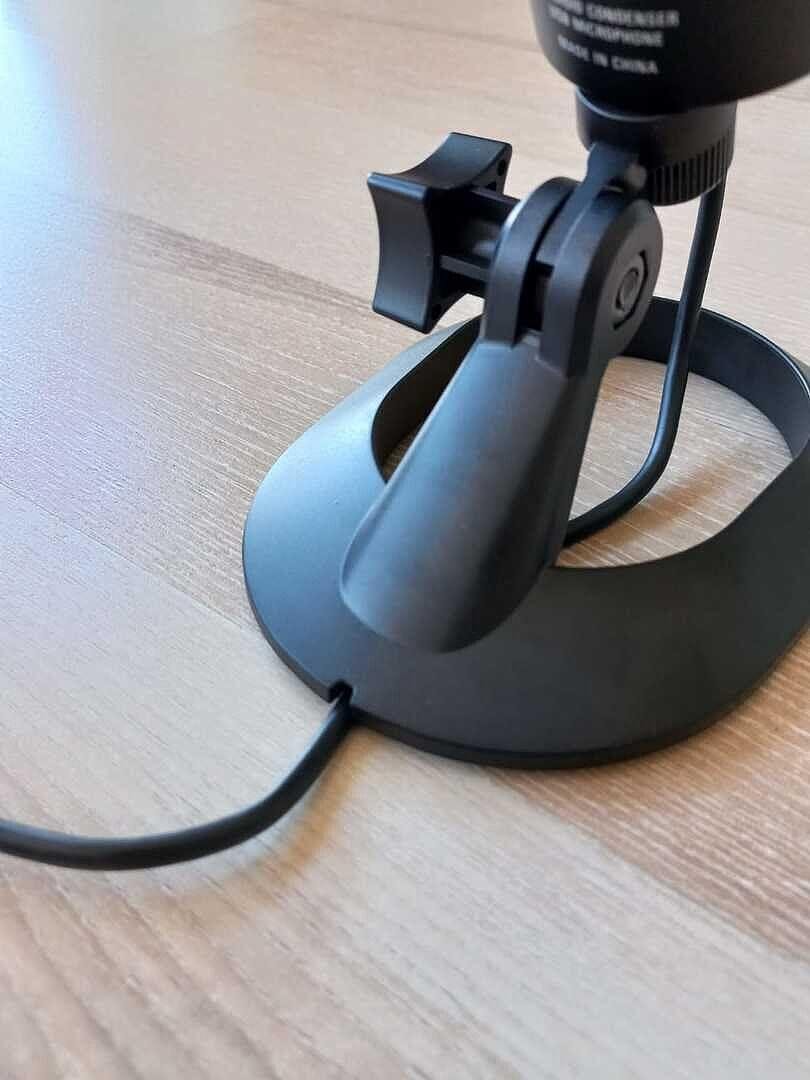

Custom desk stand

The included desk stand provides a stable and secure base.

Specifications

System Requirements USB2.0 compliant
Supported OS Windows 8.1, Windows 10, Windows 11macOS Catalina, macOS Big Sur, macOS Monterey (*Please check the AT web page for the latest information.)
Element Fixed-charge back plate, permanently polarized condenser
Polar pattern Cardioid
Frequency response 20-20,000 Hz
Power supply USB power (5 VDC)
Bit depth 16 bit/24 bit
Supported sampling rates 44.1 kHz/48 kHz/88.2kHz/96 kH
Controls Headphone level control, Mix control, Mute
Dimensions 142mm long, 52 mm maximum body diameter
Weight About 373g
Output connector USB Type-C
Headphone output 110 mW (at 1 kHz, 1% T.H.D., 32 ohms)
Headphone jack 3.5 mm stereo mini-jack
Included accessories

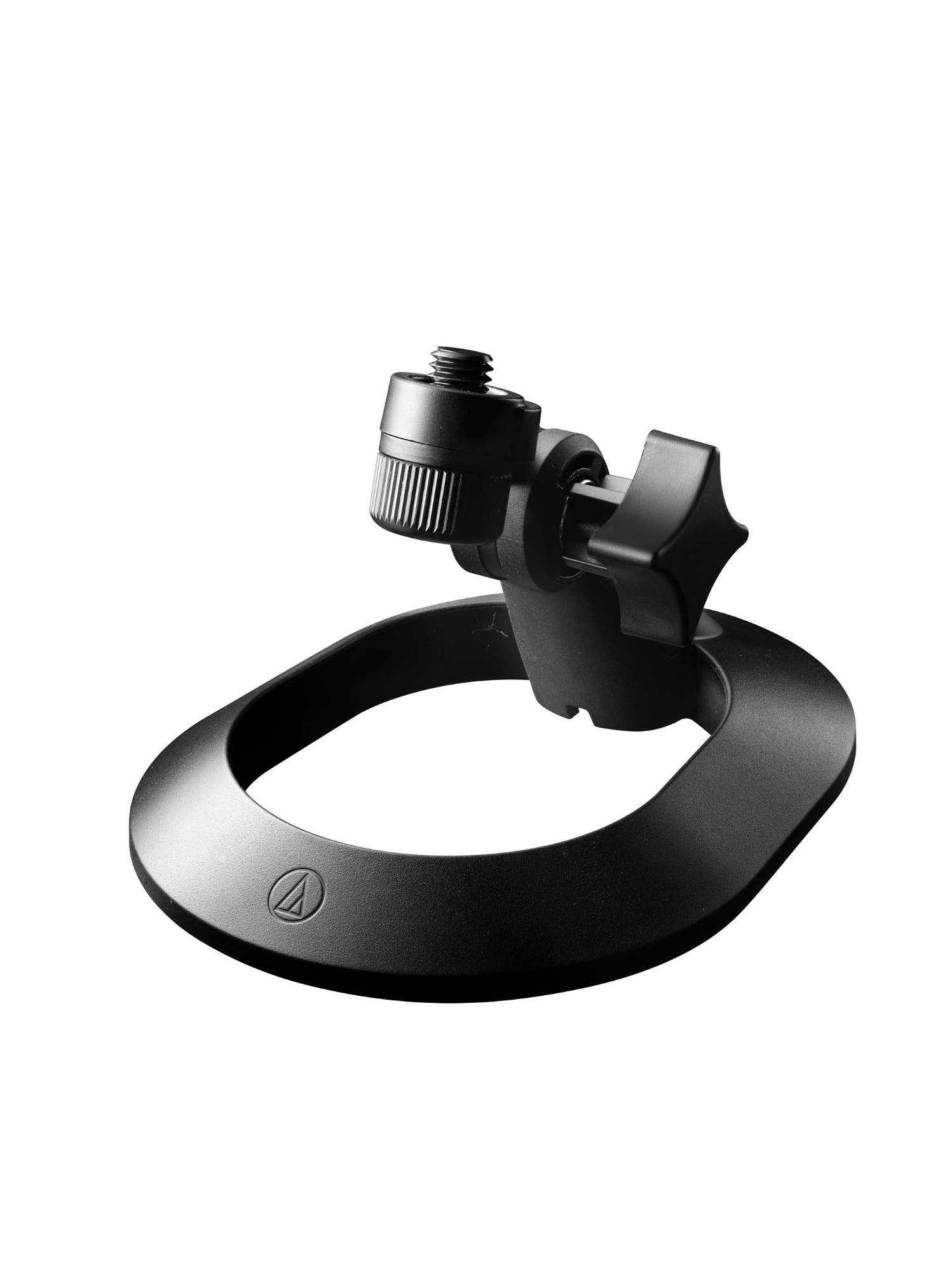

• Stand (AT8702)

• 3/8”-16to5/8”-27 threaded adapter

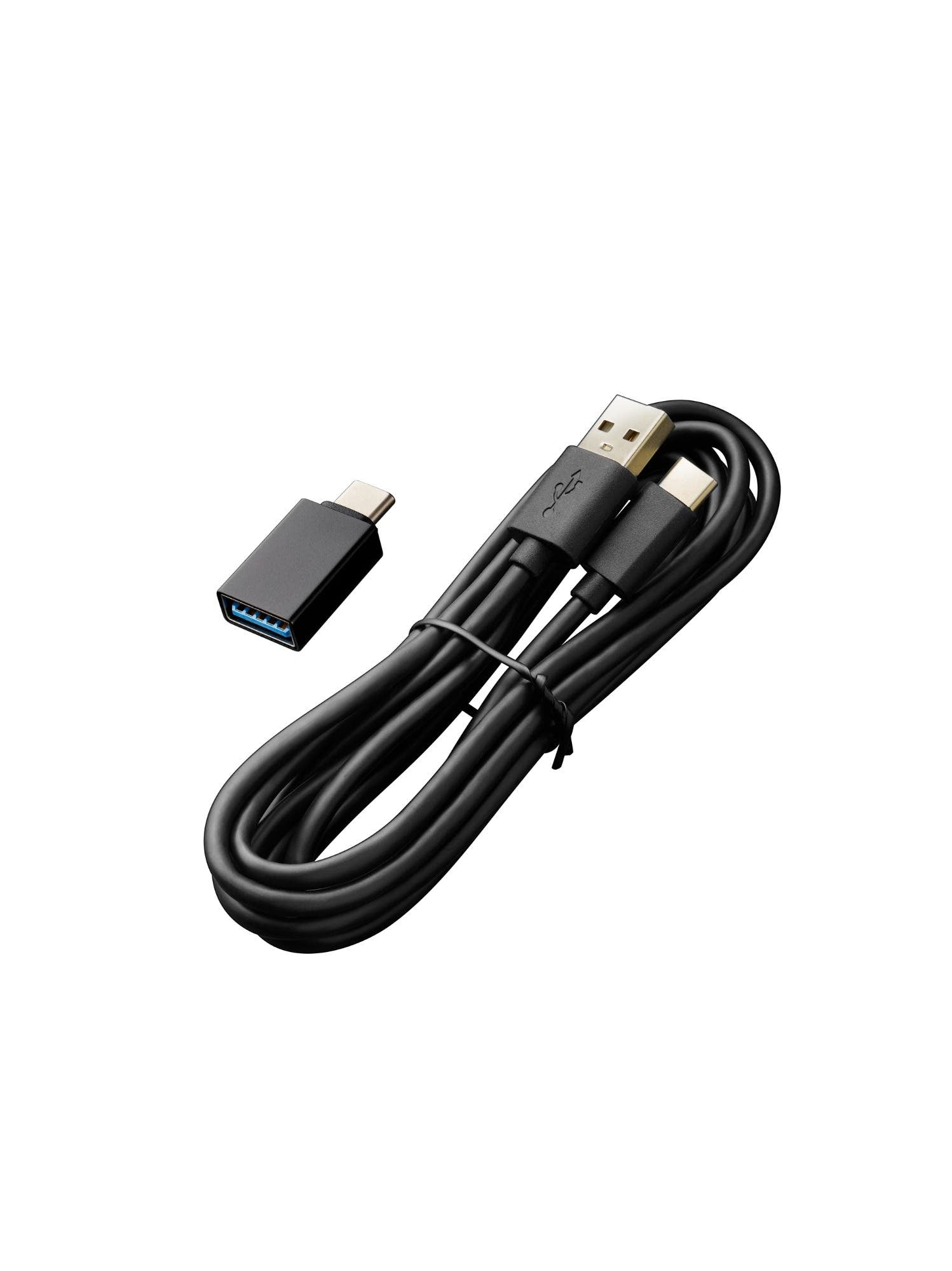

• USB cable (about 2.0 m, USB Type-C to USB Type-A)

• USB conversion adapter (USB-Type-A to USB Type-C)
