Allen & Heath AB168 - 16 XLR Input / 8 XLR Output Portable AudioRack
Audiorack/Stagebox: 16 Xlr In/8 Xlr Out (Qusq)

Audiorack/Stagebox: 16 Xlr In/8 Xlr Out (Qusq)

Product code: AH AB1608
RRP $2,599.00
$2,599.00
Price Match
1 Year Warranty
Delivery
Calculate shipping
In-Store
Loading...
Online
Pre Order
Highlights

  • 16 XLR mic preamps enhance audio input options
  • Features 8 XLR line outputs for versatile connections
  • Runs on Allen & Heath’s dSNAKE protocol
  • Connects via secure dSNAKE EtherCon port
  • Rugged design with rubber bumpers for durability
  • Lightweight and portable at just 4.8kg
  • Includes a sturdy carry handle for easy transport
  • Optional rack mounting kit available for setup
Payment Options

Fees apply

More info

One-time payment of $2599.0

No fees

More info

6 months min.

More info
Apply Now

Accessories

Description

Allen & Heath AB168 - 16 XLR Input / 8 XLR Output Portable AudioRack

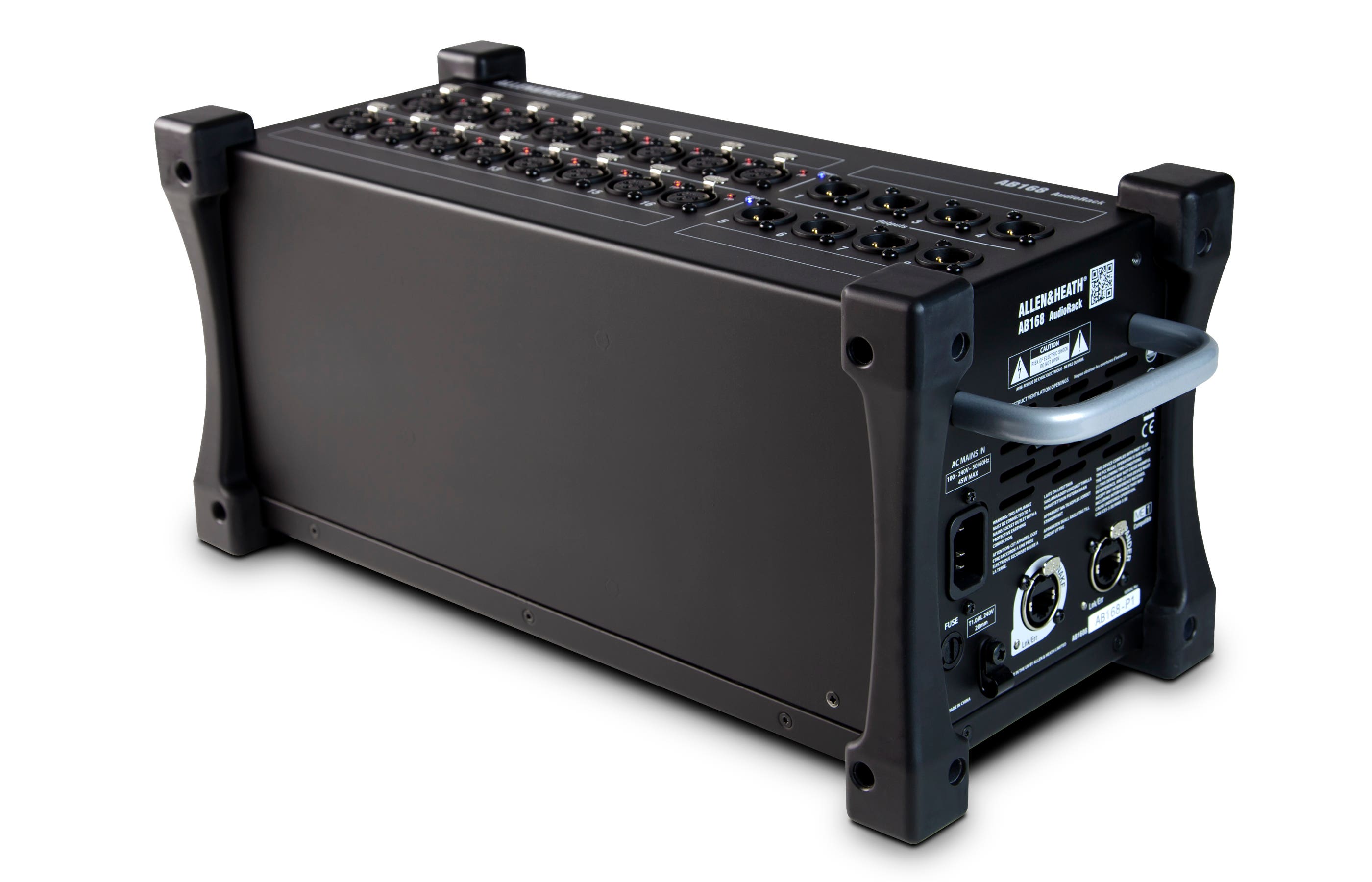

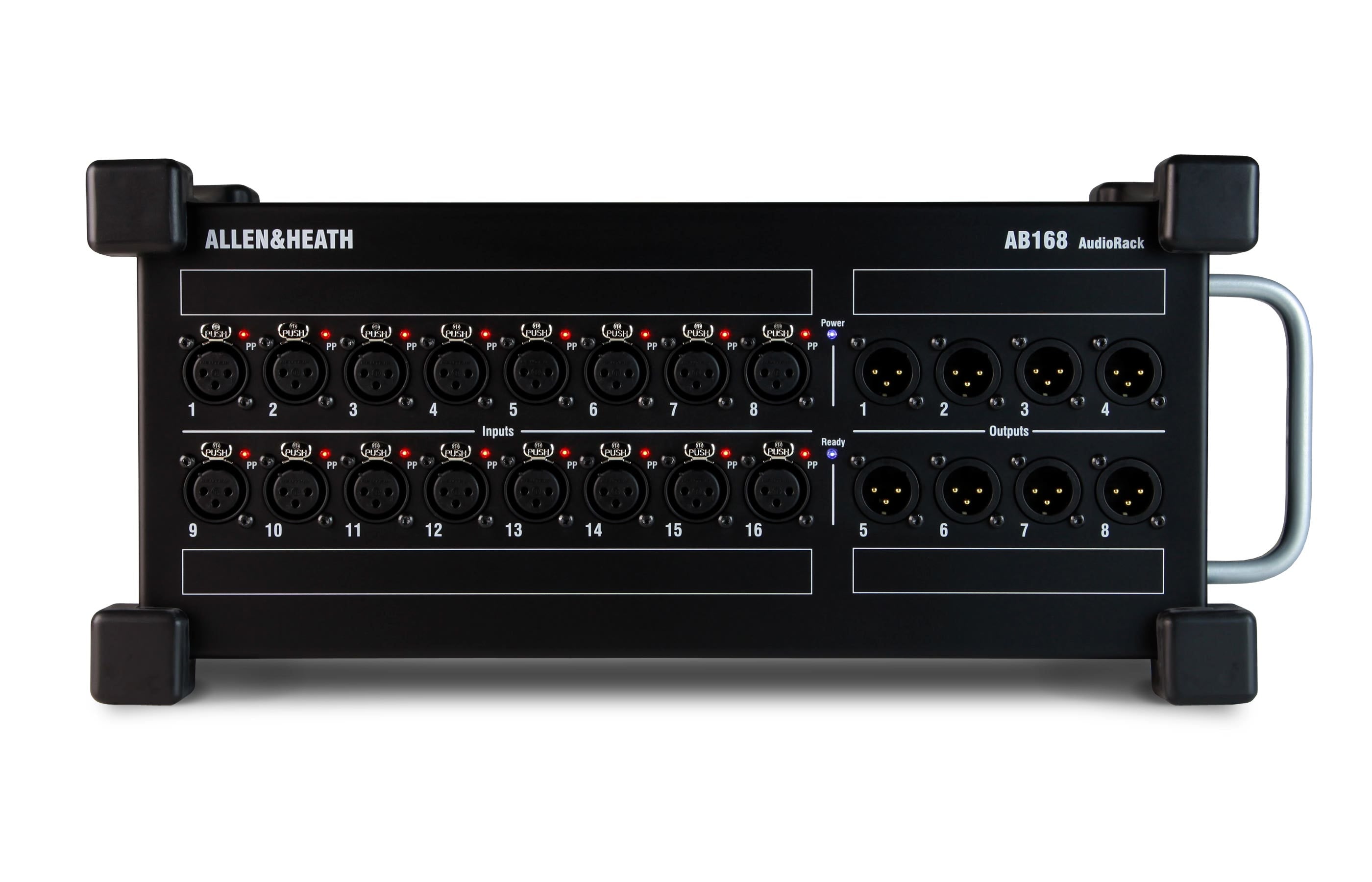

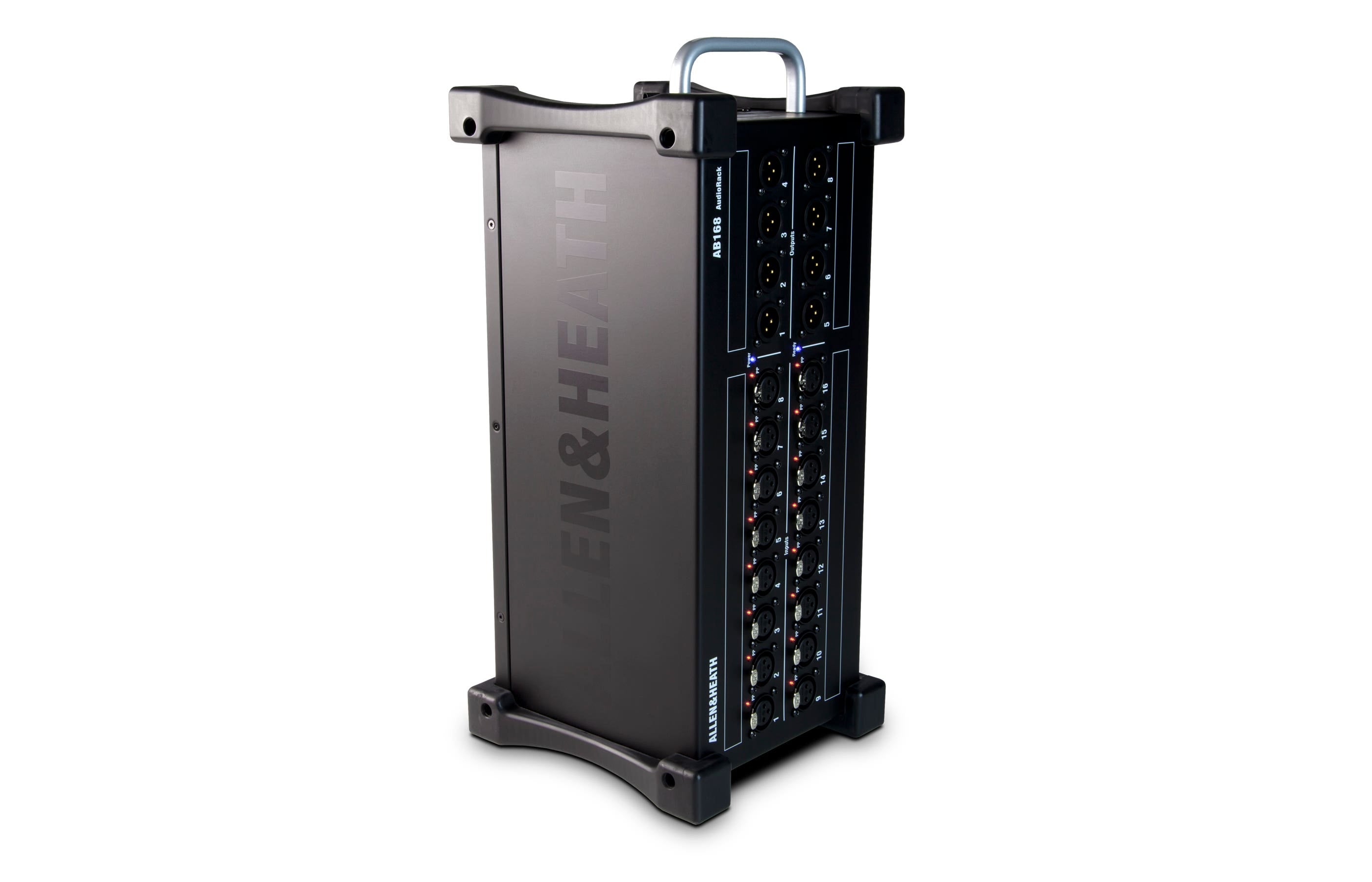

AB168 is a portable AudioRack, providing 16 XLR inputs and 8 XLR outputs when connected to a GLD-80 or GLD-112 mixer, or to an AR2412 AudioRack. Featuring 16 mic preamps with Phantom Power indicators and 8 XLR line outs, AB168 runs on Allen & Heath’s proprietary dSNAKE protocol. The AB168 unit connects over a single Cat5 cable to the GLD mixer or to an AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system. AB168 auto updates its firmware to synchronise with the GLD system.

The rack’s rugged design, including rubber bumpers, renders it highly roadworthy and allows it to be placed on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, AB168 is also designed for maximum convenience and portability. An optional rack mounting kit is also available.

FEATURES

  • 16 Mic Preamps on XLR
  • Phantom Power LED per Input
  • 8 XLR Line Outs
  • dSNAKE Connection with locking Ethercon port
  • Additional locking Ethercon port for daisy chaining / ME personal mixing system
  • Rubber bumpers
  • Carry handle
  • Optional rack mount kit available

Specifications

Brand
Allen and Heath
Warranty
1 Year
Built-in effects
No
Inputs
16
Outputs
8
Mixer type
Analogue
Bluetooth
No
