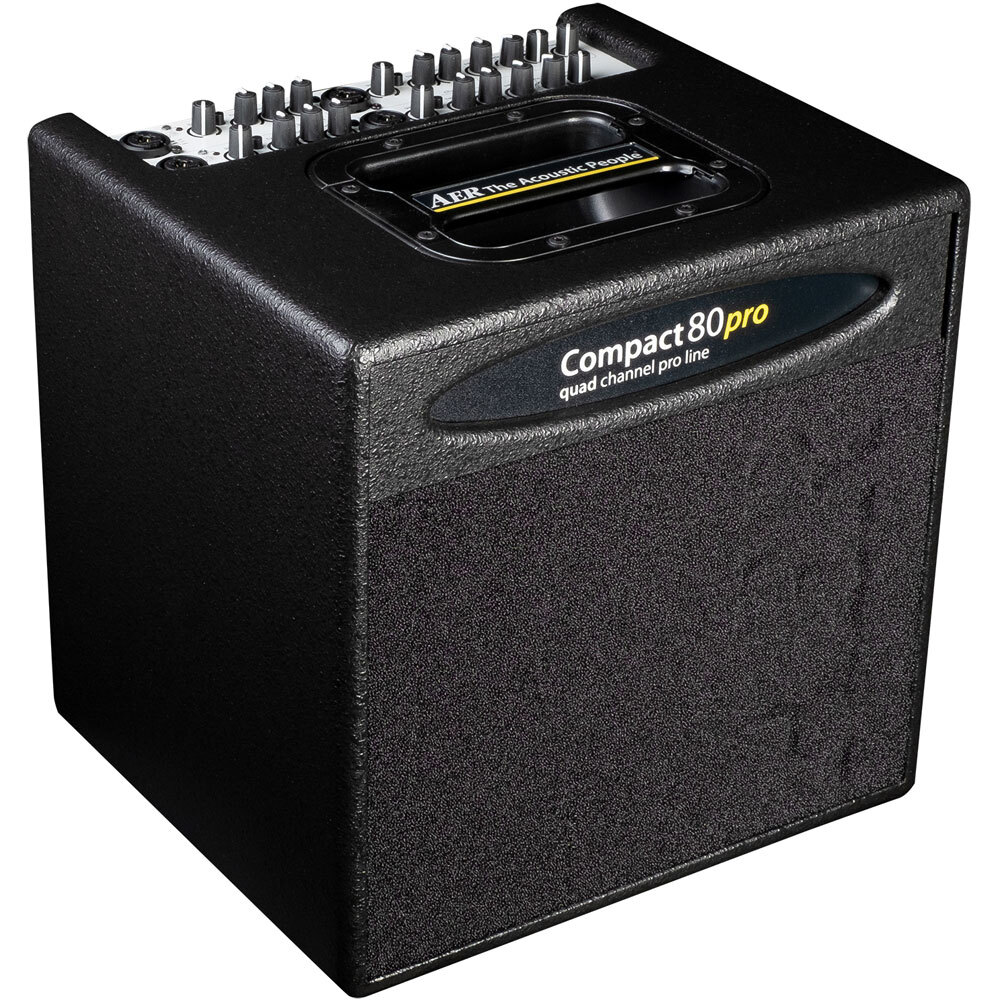

AER Compact 80 Pro Acoustic Instrument Amplifier

The Compact 80 Pro is the new amp in the AER range. More channels, more power, an innovative couple system for optimal cooperation in stage situations. Two DI outs for intuitive processing in FOH systems, all that with the simple and proven operation of all AER Compact systems.

FEATURES:

• Its innovative power amp design offers more headroom for all live requirements.
• Four channels for instruments and high-quality condenser microphones
• 8", 200mm AER Custom Twin Cone ensure additional expansion of the input signals and their implementation
• The adjustable AUX interface ensures safe PlayAlongs via CD or smartphone
• 2 x high-end DI-out to the FOH system
• 2 x 4 onboard effects. The effect portion can be mixed into two channels via the PAN control.
• At 10kg, it is still one of the easily portable amplifiers

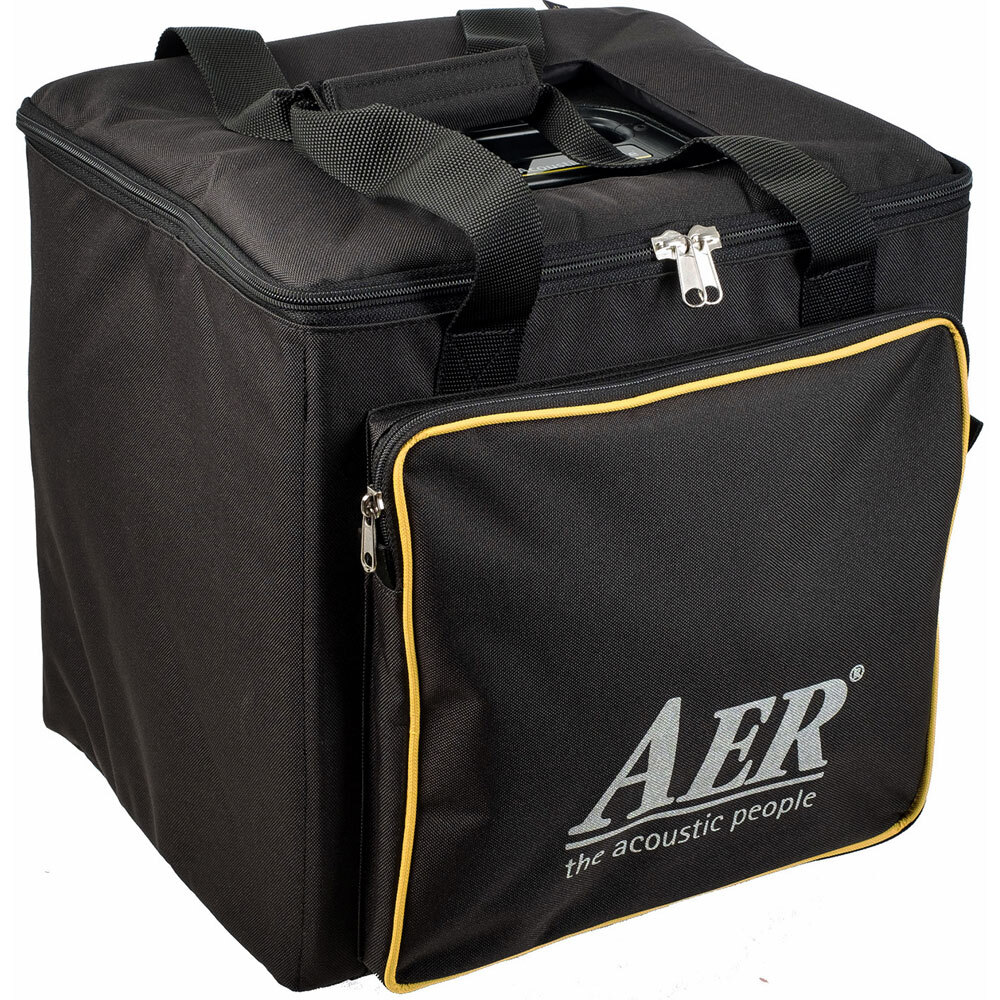

• Comes with a padded gigbag
• 2-3 band EQ (centered)
• Couple function for monitoring a second amp
• Aux interface
• Recommended for: Acoustic guitar, voice, wind instruments, mandolins, oud, traditional Chinese instruments, mouth harp, but also electrical instruments.

SPECIFICATIONS:

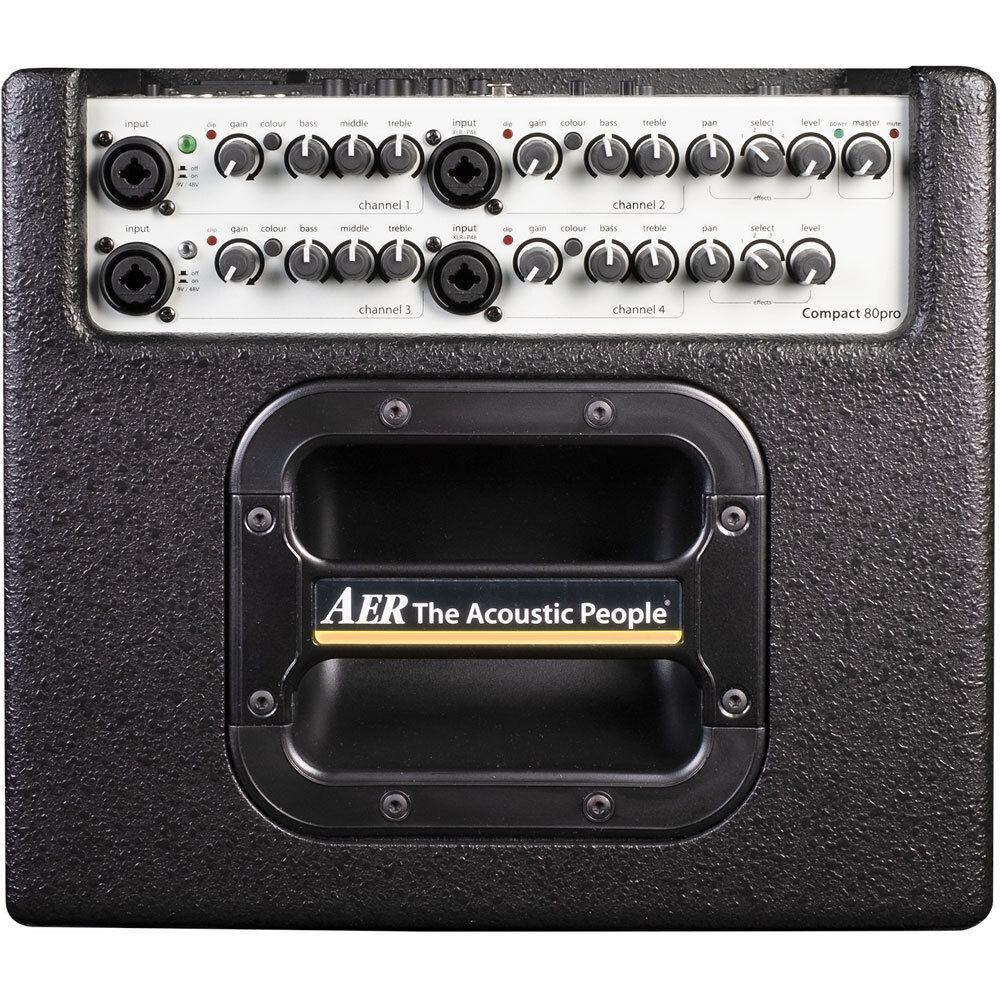

Channel 1
6.3mm (1/4”) jack socket as high-impedance line input with pad (high/low attenuation) and switchable 9V phantom power, gain control
Channel 2
Combined XLR/6.3mm (1/4”) jack socket as high-impedance line or balanced microphone input, 48V phantom power, gain control
Channel 3
6.3mm (1/4”) jack socket as high-impedance line input with pad (high/low attenuation) and switchable 9V phantom power, gain control
Channel 4
Combined XLR/6.3mm (1/4”) jack socket as high-impedance line or balanced microphone input, 48V phantom power, gain control
Equalizer
Three band tone controls for channel 1, 3 and two band tone controls for channel 2, 4
Colour
Mid-cut-treble-boost filter
Effects
Two digital effect processors with 4 presets: 2 x reverb, delay, chorus
Power amp
80W / 8 ohms
Analog signal processing
Subsonic filter, low distortion processing RMS limiter
Speaker system
2-way speaker system, 8” (200mm) polypropylene low-midrange neodymium alloy magnets
Features

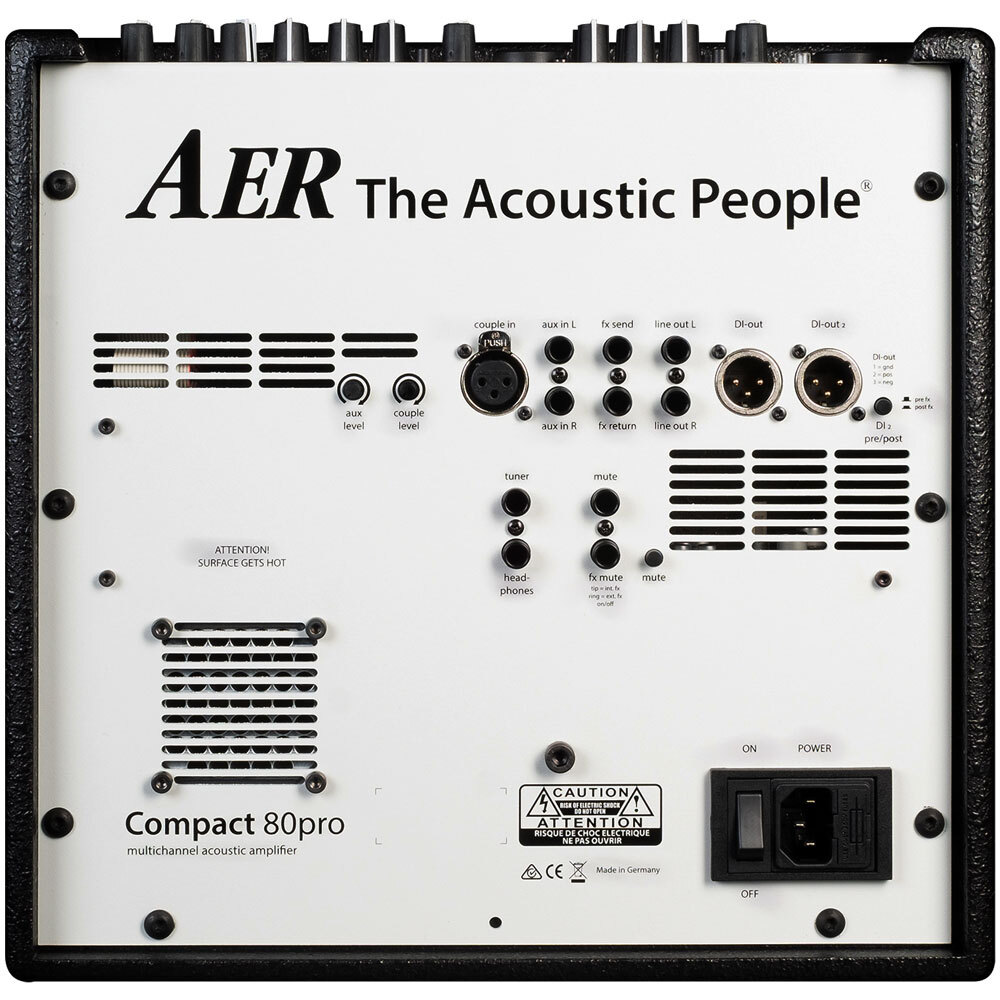

Couple-in, ground lift, switchable 9V phantom power, adjustable aux in, footswitch (effects on/off ), tuner, line out, adjustable DI-out, parallel effect loop, headphones
Dimensions
Height: 320mm (12.6”) Width: 325mm (12.8”) Depth: 285mm (11.22”)
Weight
10kg (22 lbs)
