Thor C2+ Smart Duo Power Protection & Filtration

CLEVER PROTECTION FOR SMART TECHNOLOGY

SmartFilter Duo is the affordable way to protect your most valuable electrical equipment. The space saving design now means you can have surge protection and filtration anywhere.

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.

TECHNICAL SMARTS
Product Dimensions: 162mm(W) x 33mm(H) x 65mm(D)
Supply voltage 240/V AC 50/Hz
Maximum current rating 10amps/2400 W (VA)
Clamping voltage 300VAC
Reaction time less than 1 nanosecond
Maximum energy dissipation 2295 Joules (equivalent to 510 Joules using UL1449 standard)
Protection modes: Active/Neutral, Active/Earth, Neutral/Earth
EMI/RFI noise reduction filter
Total number of protected AC outlets: 2
Earth potential rise protection
Earth leakage range less than 1 milli amp
Earth detection circuit: Yes
Operating conditions: Indoor/AC mains
Operating temperatures: -10C/+60C
Cable length: 1.0m
Model No: C2+

INSIDE THE BRAIN

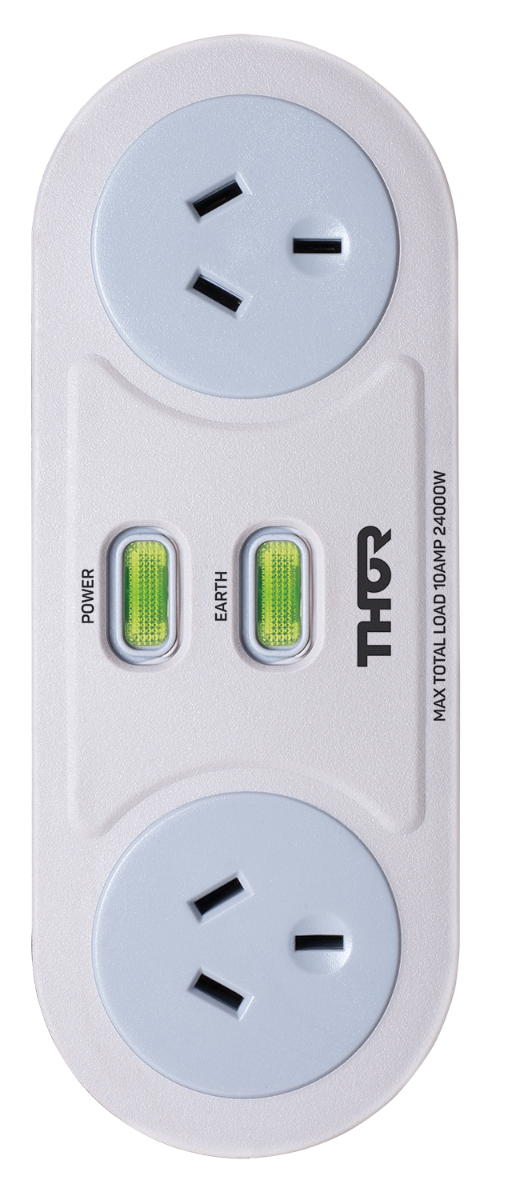

All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. C2 has an earth detection LED for this reason.
SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
