Radial LX-3 Passive Line Splitter

Product code: RA-LX-3
RRP $639.00
$549.00
Price Match
3 Year Warranty
Delivery
Calculate shipping
In-Store
Loading...
Online
Pre Order
Highlights

  • High-performance line splitter for audio signals
  • Premium Jensen transformer ensures sound quality
  • Two isolated outputs eliminate hum and buzz
  • Third direct output with ground lift switches
  • Switchable -12dB input pad prevents distortion
  • Combo jack accepts TRS or XLR sources
  • Balances signals to prevent interference

Payment Options

Fees apply

One-time payment of $549.0

No fees

6 months min.

Accessories

Description

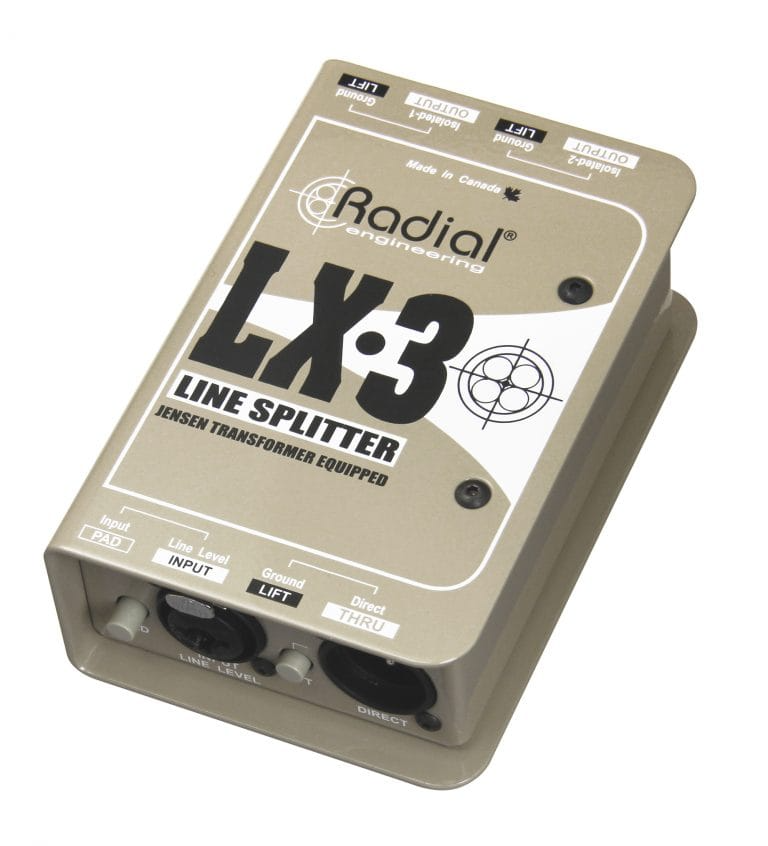

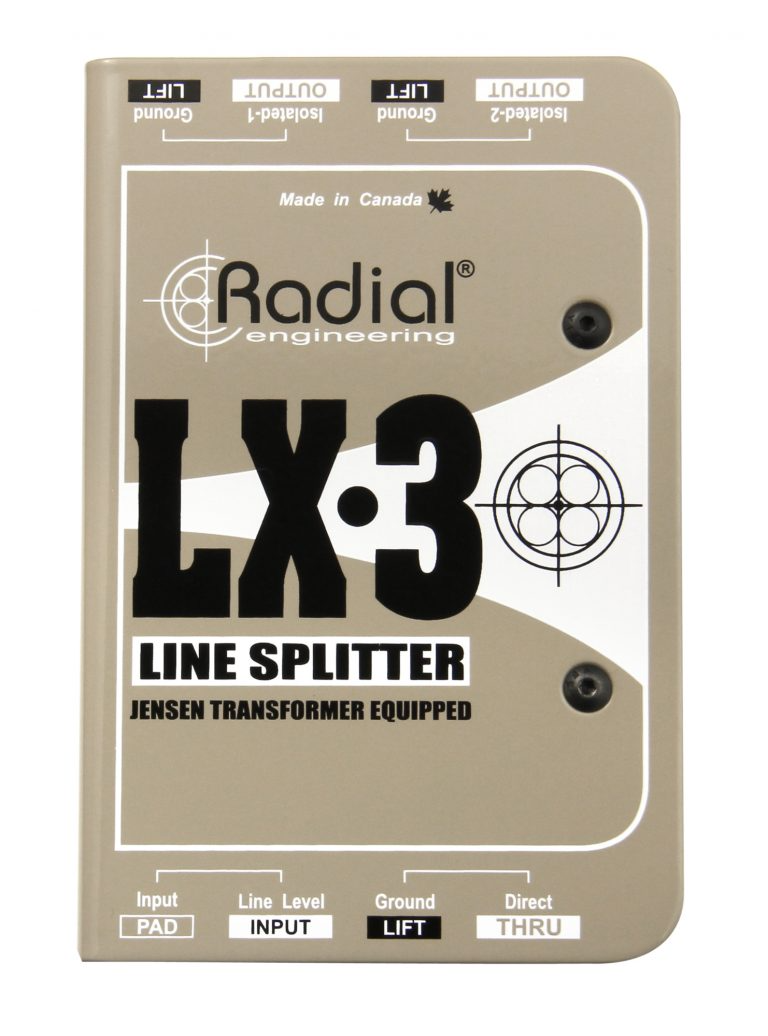

The Radial LX-3 is a high-performance balanced line-level splitter designed to send one audio signal to as many as three destinations at once.

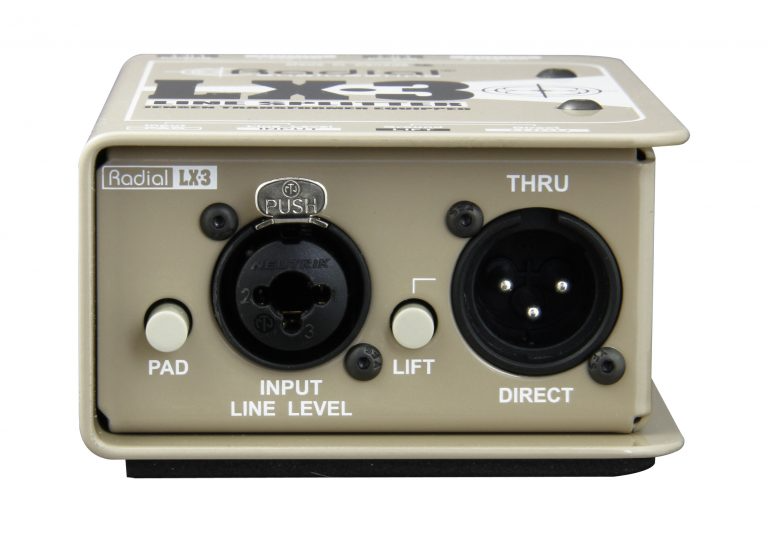

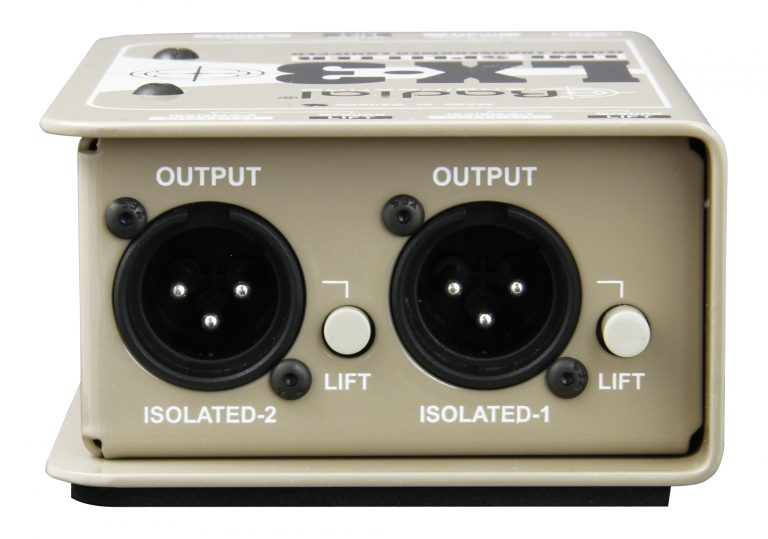

The LX-3 makes use of a premium Jensen transformer to leverage the industry's best combination of frequency response, signal level handling, and low distortion, providing the highest possible signal quality. It features two isolated outputs to eliminate hum and buzz from ground loops, along with a third direct output. All three XLR outputs have ground lift switches for additional noise suppression, and a switchable -12dB input pad allows you to connect even the hottest line outputs without fear of overloading or distortion. The input of the LX-3 is accessed with an XLR/TRS combo jack, which allows you to connect via balanced or unbalanced cables; the LX-3 will automatically balance the signal at the isolated outputs, preventing interference and signal degradation over long cable runs.

  • Send one audio signal to three destinations simultaneously
  • Jensen transformer-equipped for exceptional audio quality
  • Eliminates hum and buzz caused by ground loops
  • Combo jack input for 1/4″ TRS or XLR sources

Specifications

Brand
Radial Engineering
Warranty
3 Year
