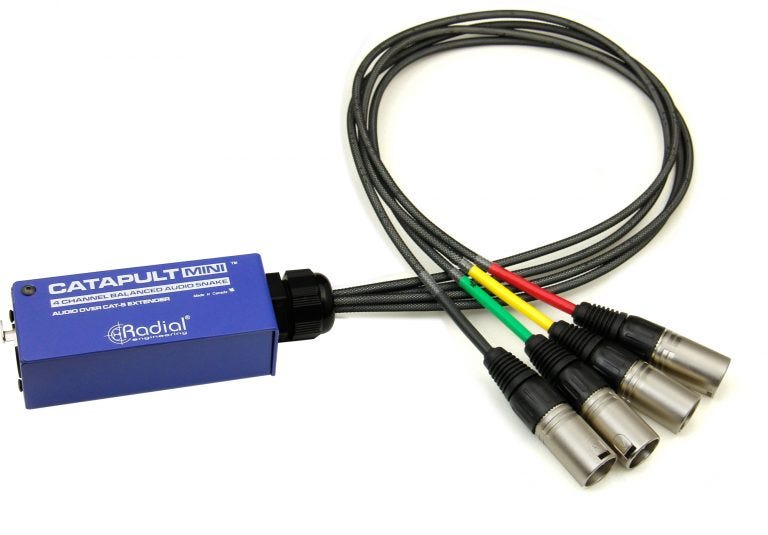

Radial Catapult Mini RX Compact Cat 5 Analog Snake (Male XLRs)

4-Channel Cat 5 Audio Snake

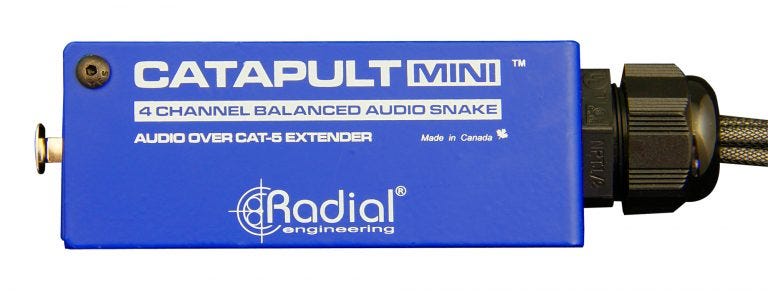

The Catapult Mini is a 4-channel compact audio snake that allows you to send analog audio signals over standard Cat 5 or Cat 6 shielded twisted pair cable.

• Send four channels of analog audio over a single Cat 5/6 cable
• Works with a building’s existing cable infrastructure
• Compact and lightweight, yet durable and rugged
• Economical Cat 5/6 cable replaces bulky multichannel audio snakes

Analog audio over Cat 5 wiring
The Catapult Mini RX and TX act like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Straight-wire passive operation

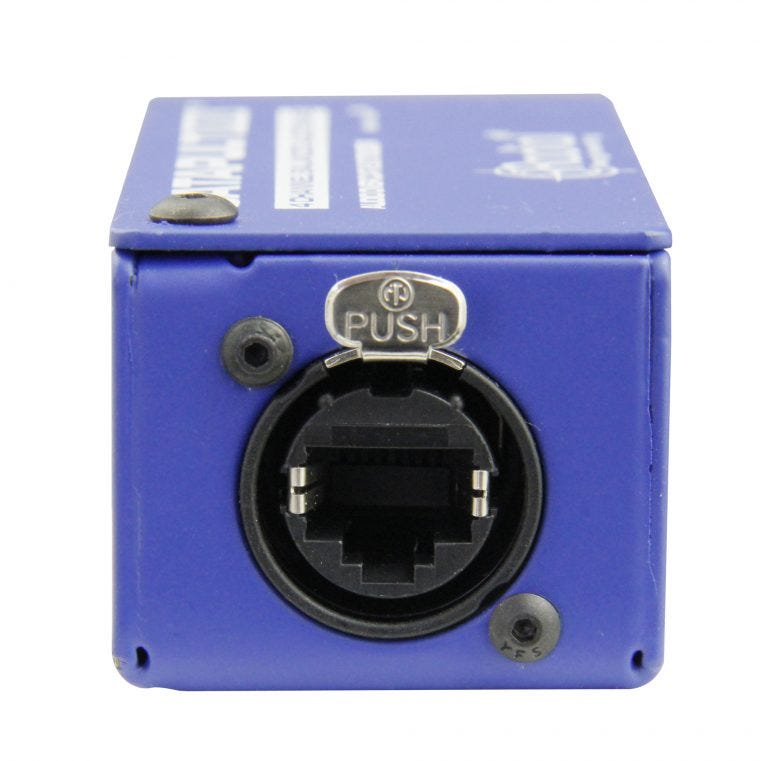

Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat 5 cable ensures that your audio passes through without coloration or distortion.

Utilize pre-existing cable installations
As many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.

Mix & Match
All of the Radial Catapult modules are compatible with each other, and each is sold individually, so you can select whichever combination best suits your needs. The Catapult Mini RX and TX can be used together as a pair, creating a compact 4-channel audio snake. However, if you prefer to have a stage box to plug microphones into, but want a compact breakout cable that fits in the case with the mixer, combine the Catapult TX4 with the Catapult Mini RX. A variety of modules allow you to customize your transmit and receive devices to complement any application.
