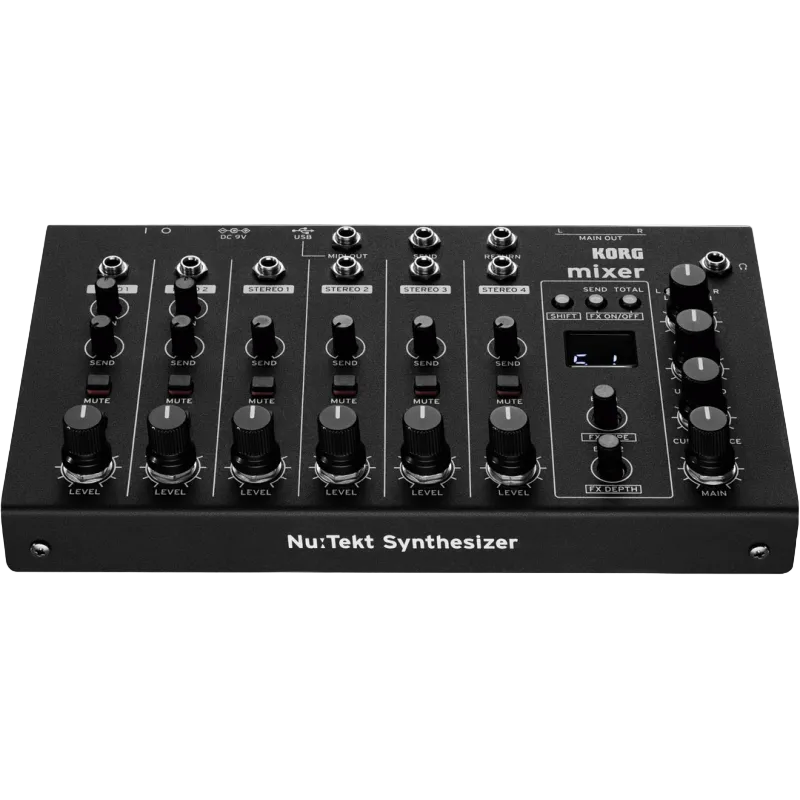

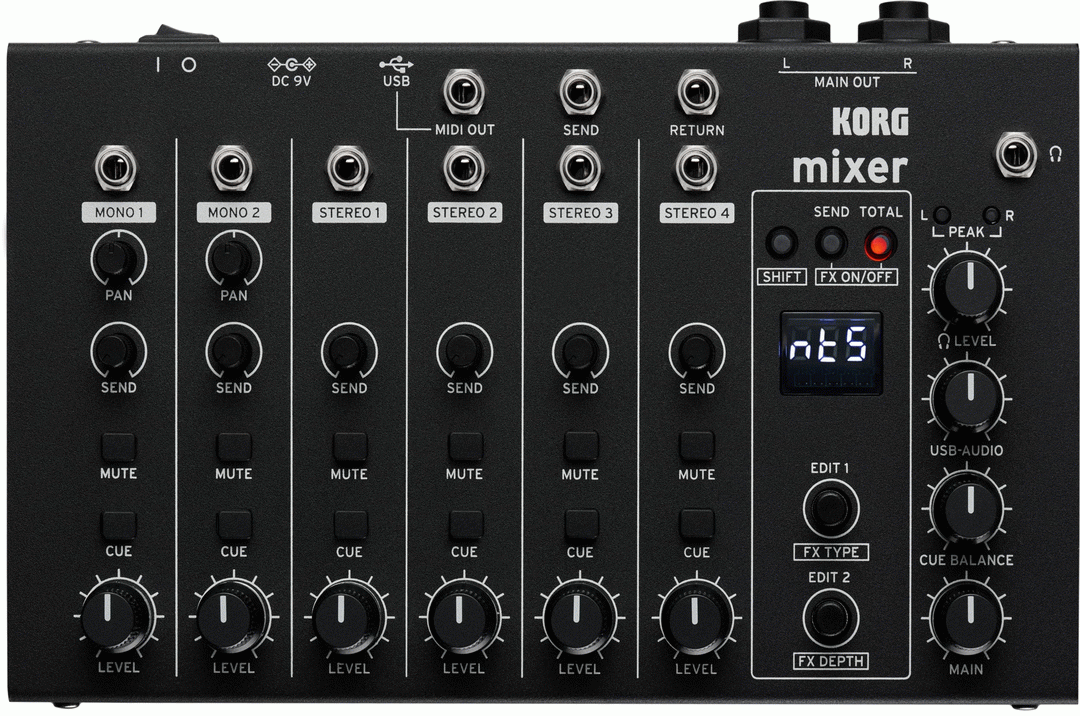

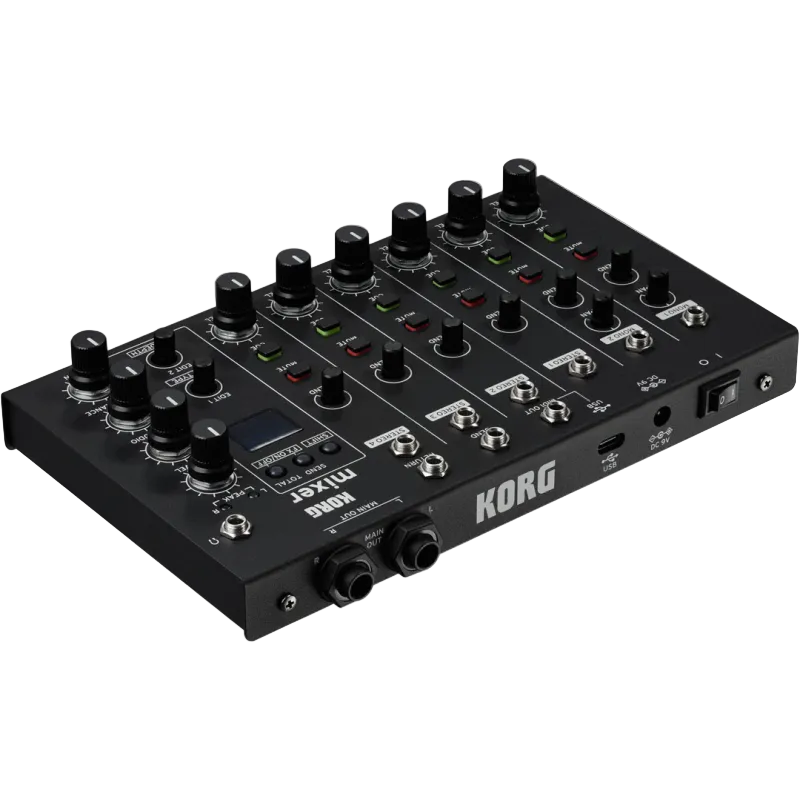

Korg NTS-4 Performance Mixer Kit

• 10‑channel analog mixer with 2 mono and 4 stereo input channels
• Compact DIY kit design, comparable in size to a volca and easy to assemble
• Advanced CUE monitoring system for headphone preview before main output
• Mini‑jack (3.5mm) inputs optimized for gadget instruments, with Eurorack‑level support
• Built‑in SEND effects, including delay, ping‑pong delay, hall & spring reverbs, and chorus
• Master effects section with filters, isolator, modulation, distortion, compression, and limiting
• USB‑C audio interface functionality with 24‑bit / 48kHz, 2‑in / 2‑out operation
• AUX send & return for external effects or devices such as the NTS‑1
• Versatile I/O, including 6.35mm main outputs, 3.5mm headphone out, MIDI out, and USB MIDI
• Ideal for live performance, DAWless setups, and mobile production, powered via USB‑C or DC 9V

The NTS-4 brings the flexibility of the Nu:Tekt series into a powerful performance mixer. With six channels, integrated effects, and USB audio/MIDI connectivity, it’s designed to connect, mix, and perform with volca units, NTS instruments, modular gear, and desktop synths in one streamlined setup.

Plug instruments into a single performance rig, supporting up to 10 total audio signals. Each channel includes level control, mute, CUE monitoring, and FX send for flexible mixing and performance control. All inputs use compact 3.5 mm mini-jacks, ideal for volca units, NTS instruments, and other desktop gear.

The mono inputs support both line-level and modular-level signals via a switchable attenuator, allowing seamless integration with Eurorack systems. Dedicated SEND and RETURN connections make it easy to expand your setup with external effects.

Two independent stereo effects engines provide per-channel SEND FX for spatial processing, while a master TOTAL FX section shapes the entire mix. Add delay, reverb, modulation, drive, and compression to bring depth, movement, and cohesion to your sound. Hands-on control for live performance. Each channel includes dedicated CUE and MUTE controls. Preview sounds through headphones before bringing them into the mix, or create instant drops and transitions with responsive muting.

USB-C provides 24-bit audio and MIDI connectivity for recording, streaming, and DAW integration. Mix hardware and software together, or record directly to your computer or mobile device. MIDI received over USB can be routed through the dedicated MIDI OUT to control external hardware. Standard 1/4" outputs provide reliable connection to studio and live systems. Compact, stable, and built to last. The steel body provides a solid foundation that stays in place even in fully patched setups. Despite its small footprint, the NTS-4 is built to handle real-world performance and studio use. Build it. Make it yours. As part of the Nu:Tekt series, the NTS-4 is a simple DIY kit that is easy to assemble. Once built, it becomes a durable, high-quality performance mixer ready for long-term use. Designed for compact performance rigs. The NTS-4 is built to sit at the centre of small hardware setups, reducing cable clutter and simplifying routing so you can focus on performance.
