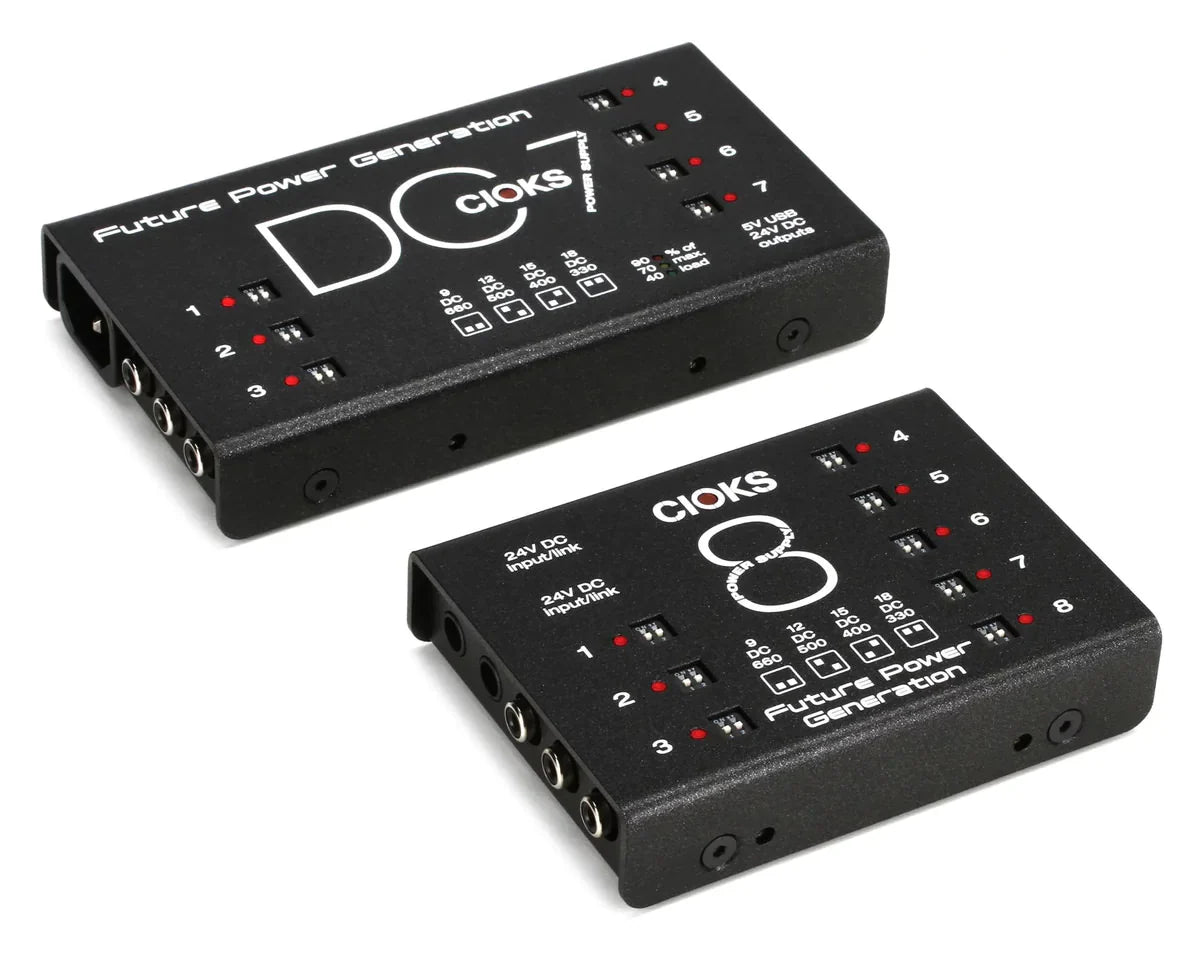

Cioks Superpower DC7 v2 + C8E Pedal Power Supply Bundle (CI-SP-BUNDLE)

When you are building the ultimate pedalboard you need the ultimate in flexible, powerful and reliable power supply and the combination of the CIOKS DC7 v2 and the CIOKS 8 Expander is just ideal.

With this combo you get fifteen isolated outlets in total with four switchable voltages on each outlet and a USB-C outlet for your smartphone or tablet via DC7 v2.
In order to make the options for where to place the DC7 v2 and the CIOKS 8 on your board as flexible as possible, the Superpower Bundle includes two DC Link cables in different lengths so you can connect and mount both units on the same board or place the DC7 v2 on one board and the CIOKS 8 Expander on a separate board if you use two.

CIOKS DC7 v2 Features
• Groundbreaking 1-inch profile (25,4mm)
• 2-stage switch-mode power supply topology
• Ultra-low noise achieved by multistage filtering
• 7 isolated DC outlets, 6W each
• 660mA at 9V DC on each outlet
• 4 selectable voltages on each outlet (9, 12, 15 & 18V)
• 5V USB-C outlet with max. 3A
• 24V DC auxiliary outlet with max. 2A
• Individual power limit LED on all outputs
• Built-in true power meter showing the total load
• Global overload status LED
• Universal mains input voltage 100 to 240V AC
• Total maximum output power 48W
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards
• 12 Flex cables included
• Expandable with CIOKS 4 Expander, CIOKS 8 Expander, CIOKS Crux and other compatible units with 24V input voltage for additional isolated outputs
• Weight 1.1 lbs. (500 grams)
• Designed in Denmark, assembled in Poland
• 5-year worldwide warranty

CIOKS C8E Features

• CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7

• Ultra-low noise achieved by multistage filtering

• 8 isolated DC-outlets, 6W each

• 660mA at 9V DC on each outlet

• 4 selectable voltages on each outlet

• Global overload status LED

• Total maximum output power 48W

• Mounting hardware for Pedaltrain and Templeaudio boards included

• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards**

• 12 Flex cables included

• 24V DC Link cable included

• Designed in Denmark, assembled in Poland

• 5-year worldwide warranty

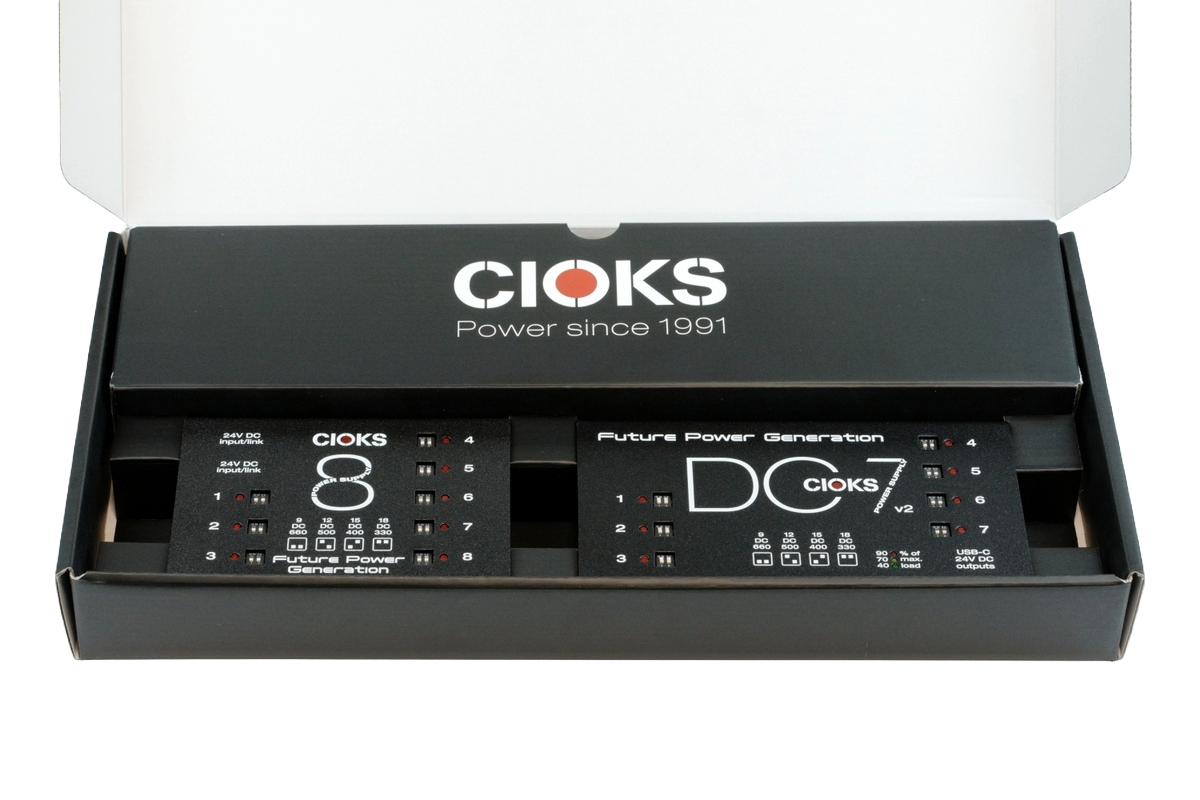

What’s in the box?

• CIOKS DC7 and CIOKS 8 Expander power supplies
• Mains power cord
• 24 Flex cables & 2 DC Link cables
• Mounting hardware (4 screws and a hex-key)
• 2x manual
• 2x product sheet (drill guide)
• Flex guide
