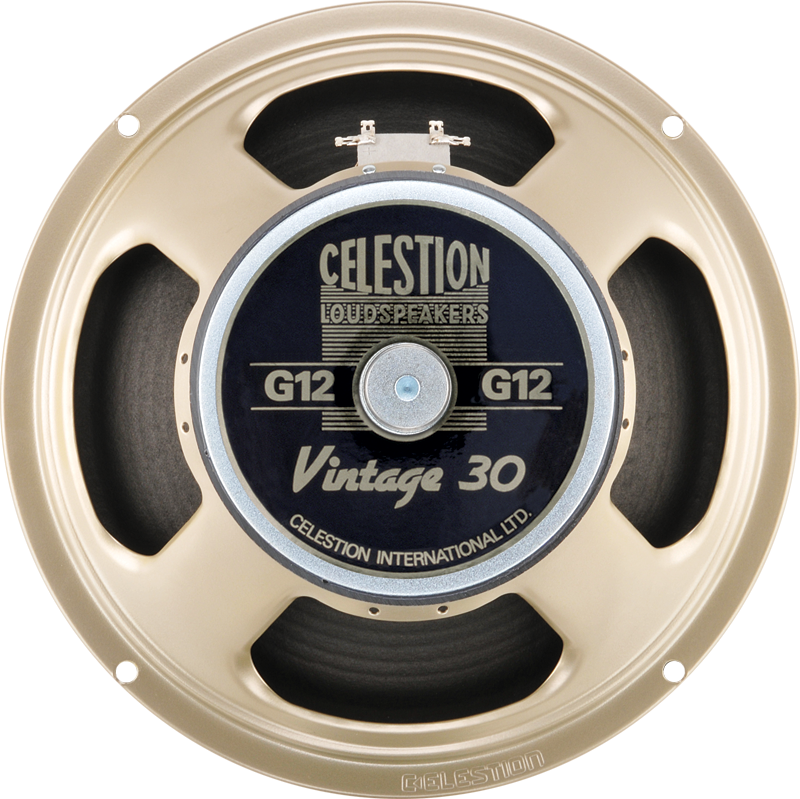

Celestion Classic Vintage 30 12" 60W Speaker 8OHM

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly 'hot-rodded' amplifiers, we set out to develop a modern speaker, capable of handling much more power and overdrive. To achieve this, we coupled our 'H' magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.

Our most revealing speaker, the Vintage 30 features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens and Peter Frampton.

General Specifications

• Nominal diameter 12", 305mm
• Power rating 60Wrms
• Nominal impedance Available 8Ω or 16Ω
• Sensitivity 100dB
• Chassis type Pressed steel
• Voice coil diameter 1.75", 44.5mm
• Voice coil material Round copper
• Magnet type Ceramic
• Magnet weight 50oz, 1.42kg
• Frequency range 70-5000Hz
• Resonance frequency, Fs 75Hz
• DC resistance, Re Available 7.3Ω or 12.9Ω

Mounting Information

• Cut-out diameter 11.1", 283mm
• Diameter 12.2", 309mm
• Magnet structure diameter 6.1", 156mm
• Mounting slot dimensions 0.31", 7.9mm Ø
• Mounting slot PCD 11.7", 297mm
• Number of mounting slots 4
• Overall depth 5.3", 135mm
• Unit weight 10.4lb, 4.7kg
