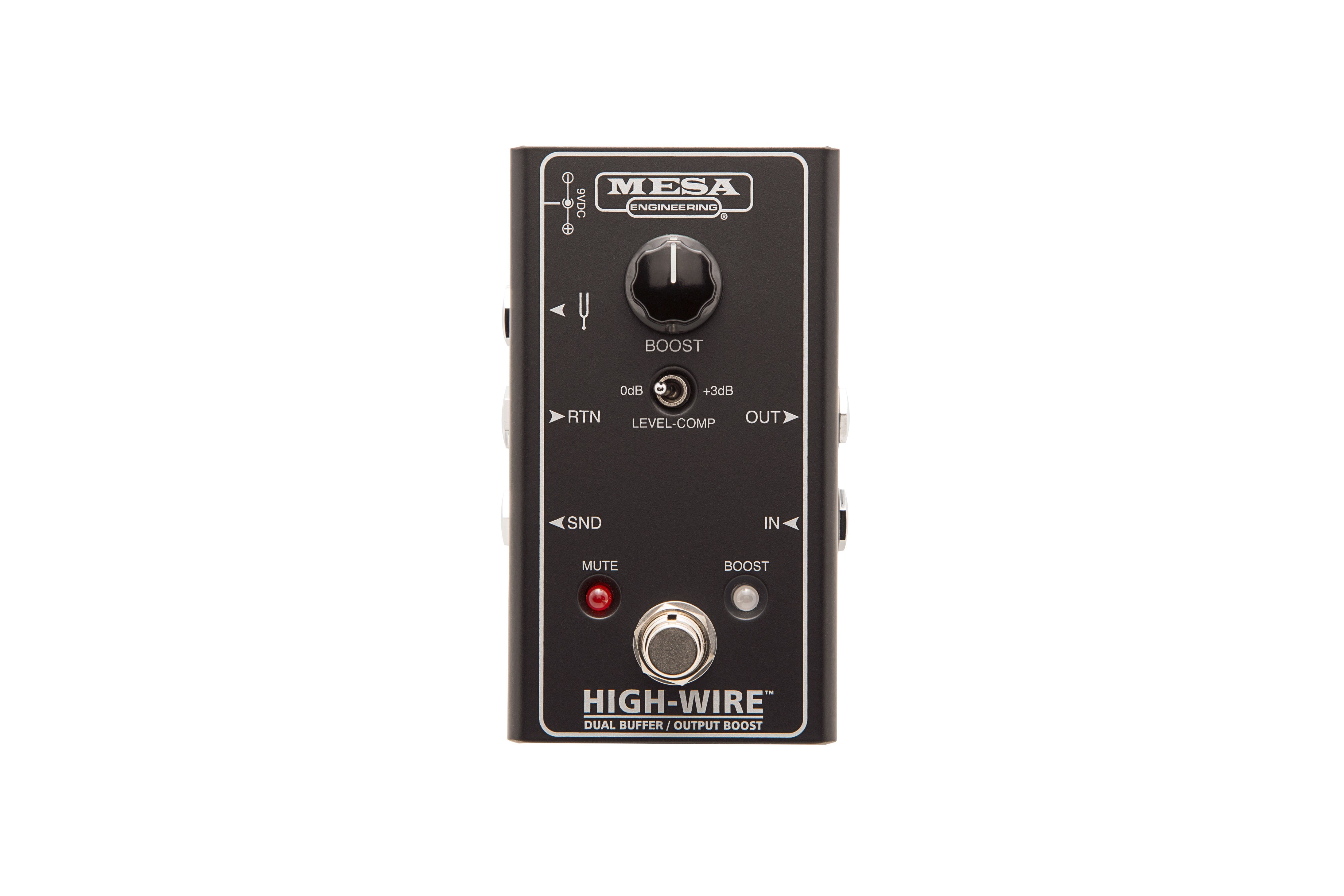

Mesa Boogie High-Wire Dual Buffer and Output Boost

The HIGH-WIRE™ is our Dual Buffer and Line Driver in a one-stop solution that addresses both Input and Output challenges in the same space saving chassis. Between Instrument and pedals, it provides a stable, consistent load for your guitar’s pickups, ensuring your signal arrives at the first pedal intact and full of Tone. From Pedal Board to the amplifier, it not only buffers the signal, ensuring optimum impedance loading and performance, but also allows for increased signal levels for extra long cable runs via the built-in Line Driver (Footswitchable Boost) feature. As with the Stowaway, all buffer circuitry is 100% discrete Class-A. The HIGH-WIRE also incorporates a fixed +3dB BOOST on a top mounted mini-toggle. The Footswitch is Dual Function and allows both the variable BOOST when hit once and a MUTE when held for a second. The HIGH-WIRE is the ultimate all-in-one Pedal Board signal loss remedy and will remove your tightrope Tone walk once and for all.

SPECIFICATIONS
Input Impedance: 1M Ohm
Output Impedance: 150 Ohm
Input Buffer Design: Discrete Class-A (MESA Stowaway™)
Output Buffer Design: High-Speed, Low Noise Op-Amp (MESA Clearlink™)
Nominal Operating Voltage: 9VDC
Maximum Operating Voltage: 12VDC
Typical Current Draw: 55mA @ 9VDC
DC Adapter (not included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm Barrel Plug
Weight: 0.743 lbs (337g)
Dimensions (W x D x H): 2.48 x 4.48 x 2.06 inch (63 x 114 x 52 mm)
NOTE: Due to efforts for continual improvement, all specifications are subject to change without notice.
