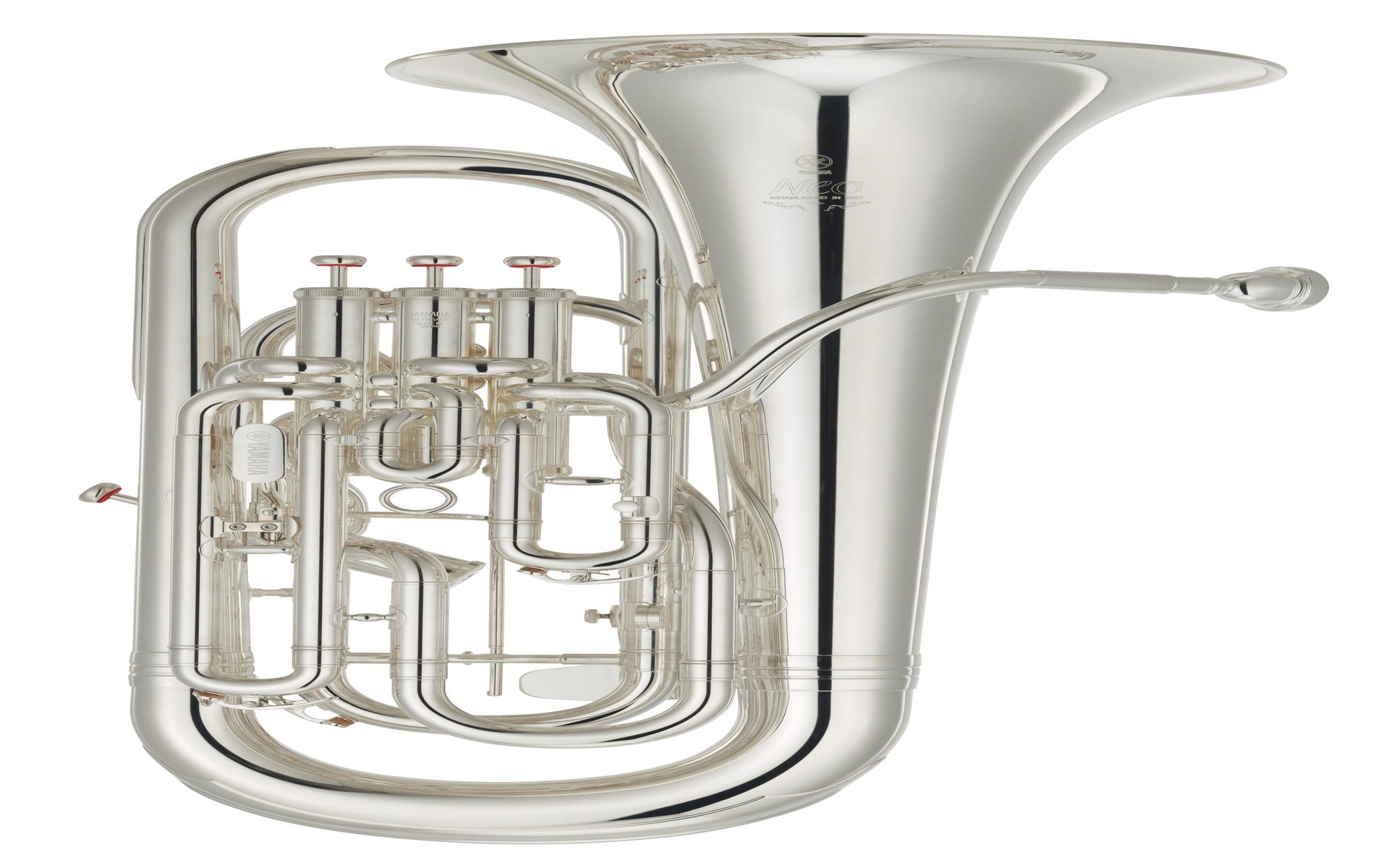

Working together with world-renowned brass band conductor Bill Millar, our technical staff started with a clean slate creating numerous euphonium prototypes, redesigning each part and component until all agreed that the ideal brass band sound that we were seeking had been attained. This new euphonium delivers a tone that blends well with baritone and tenor horns. Powerful with excellent projection, it produces the tone color that soloists require in an instrument.
Main Tube Trigger System
A main-tube trigger system offers precise pitch control as well as solid tone. The lever plate can be pressed during a performance to shift the main tube tuning slide downward, lowering pitch by a precisely controlled amount. Release the lever plate and the tuning slide returns to its original position. To tune the instrument prior to a performance, loosen the rod base screw so that the main tube tuning slide can be positioned as required. The screw can then be tightened to set the trigger rod to the desired position.
* A hex wrench (for lever plate vertical position and angle adjustment) and operation manual for the trigger system are supplied.
Adjustable Trigger System
The position, angle, and stroke of the lever plate can be adjusted to optimize trigger system operation and comfort individual needs.
1. Lever plate vertical position and angle adjustment
The supplied hex wrench can be used to loosen the lever plate screws, allowing the vertical position and angle of the lever plate to be adjusted for maximum operation comfort and ease.
2. Lever plate stroke adjustment
Use a standard “minus” screwdriver to rotate the lever plate stroke screw and adjust as required.
Dedicated Main Tube Trigger Slide
The main tube tuning slides of euphoniums designed for trigger mechanisms have a rod base to which the trigger rod attaches. Additionally, the diameter of the main tube tuning slide inner tube is smaller than normal to ensure smooth trigger operation.
Dedicated Main Tube Tuning Slide Trigger Cover
A special metal cover prevents the main tube tuning slide from coming into to direct contact with and possibly transferring oil to the player’s clothing. Loosen the attachment screw to adjust the position of the cover as required.
