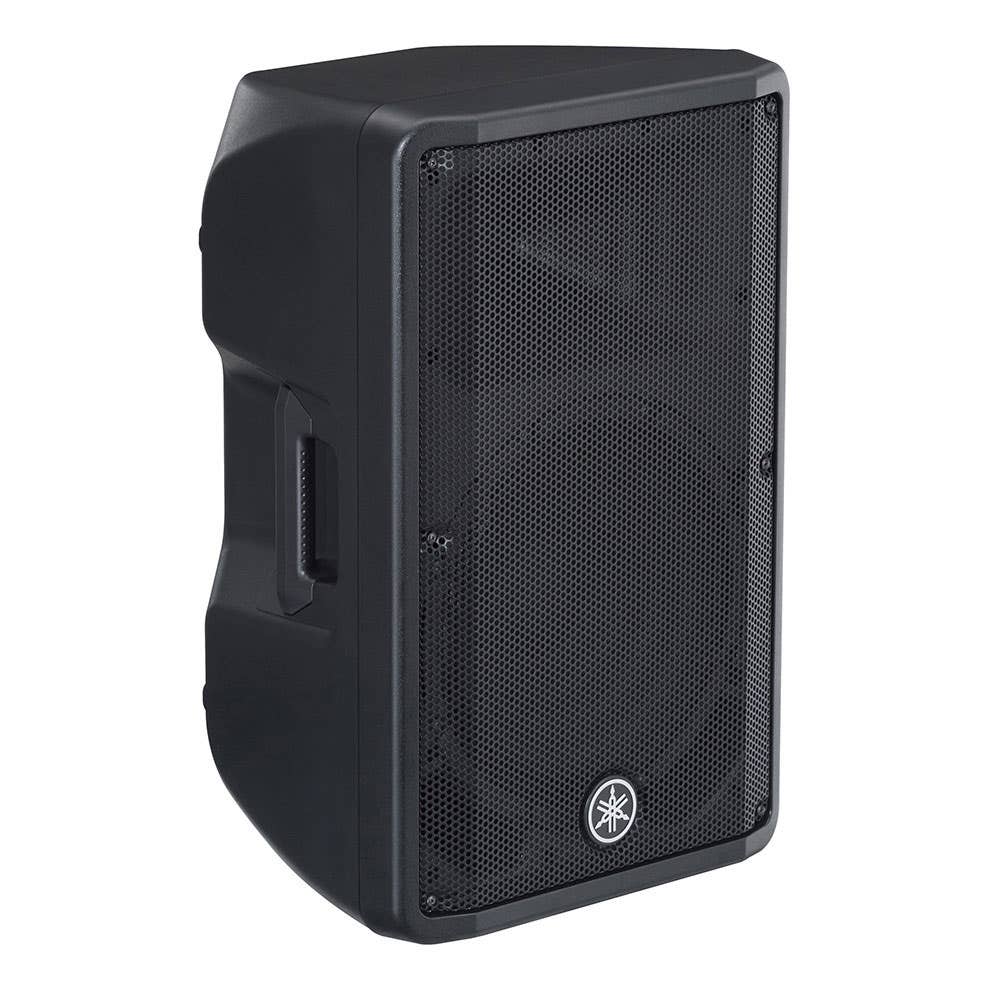

  • Yamaha CBR12 12" Passive Loudspeaker (CBR-12)

The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design

and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.
Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovative
approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly
portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
- Rugged, Highly Portable Enclosure Design
- Simple Connectivity
- Versatility for a Variety of Applications

General specifications

Speaker type 2-way Speaker, Bass-reflex Type
Frequency range (-10dB) 48 Hz - 20 kHz
Nominal coverageH 90°
V 60°
ComponentsLF 12" Cone, 2" Voice Coil (Ferrite Magnet)
HF 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover 2.1 kHz
Power ratingNOISE 175W
PGM 350W
PEAK 700W
Nominal impedance
SPLSensitivity (1W; 1m on axis) 96dB SPL
Peak (Calculated) 125 dB SPL
I/O connectors 1/4" Phone x 1, speakON NL4MP x 1
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket Φ35 mm Bottom x 1
DimensionsW 376mm (14.8")
H 601mm (23.7")
D 348mm (13.7")
Net weight 13.9 kg (30.6 lbs)
READ MORE...

Yamaha CBR12 12" Passive Loudspeaker (CBR-12)

Code CBR12 RRP $549.99
$429.00
In Stock
Online: Yes
In-store: None
- +
Checkout with: PayPal Mastercard Visa American Express Direct Debit Zip
