Source Audio Atlas Compressor Pedal

Name: Source Audio Atlas Compressor Pedal
Brand: Source Audio
SKU: 930011019365
Price: 399.00 AUD
Availability: InStock

SA-ATLAS - RRP $499.00

free

shipping!*

year warranty

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Asked Questions

What are the shipping rates?

We offer free shipping on orders $100+ and under 32kg to metro areas in ACT, NSW, VIC, and QLD. If you are in a regional area we will subsidise your delivery rates. You can calculate shipping in the checkout and on product pages with your postcode.
All orders under $100 are charged at minimum $10 shipping.

Basic vs Standard vs Express Shipping

Express 1-5 days.
Standard 2-10 days.
Basic 4-10 days.
Our shipping platform will automatically determine and display the Express or Standard shipping options that are available to you.
Delivery times are determined by how far you are away from our store in Canberra.
If Express is not displaying, you're either located too far away from our store in Canberra, or the Standard shipping option will get it to you just as fast for the same price.

What payment methods do you offer?

We offer secure checkout options like Visa, Mastercard, PayPal, Zip Pay and Bank Deposit.
American Express payments are also accepted, although most AmEx transactions will require manual authorization after payment (Someone from the team will contact you to confirm the transaction after checkout)

Can I cancel my order?

If you need to cancel your order it is best to give our online team a call on (02) 6282 3199
On weekends our online team may not be operating. Either give us a call Monday morning or reply to your order email and we will get back to you asap.

Need Assistance?

Feel free to contact us by phone, email or chat

(02) 6282 3199
sales@bettermusic.com.au
Talk to our experts on live chat
18 Salamander Court, Phillip 2606, ACT
Map

The Atlas Compressor offers a comprehensive collection of compression circuits that perfectly capture the tone and feel of the industry’s most sought-after compressors. Straight out of the box, Atlas delivers six different styles of compression, ranging from classic stompbox compressors like the now-discontinued Diamond Optical Compressor to high-end rack units such as the snappy 1176 compressor and the smooth and gentle LA2A optical compressor. Atlas also features advanced dual-band compression, which provides an independent set of controls for both the high and low frequencies. Each compression engine has onboard controls for Threshold, Ratio, Attack, Release, Output, Tone, and Blend, allowing for fine-tuned control over the compact One Series hardware.

A History Lesson in Compression
The Atlas is packed with so many different types of compression that it could serve as a tour guide through the history of compressor equipment. First stop: classic stompbox squashers such as the legendary the Dan Armstrong Orange Squeezer and the excellent (but discontinued) Diamond Compressor. Next stop: universal and ubiquitous studio rack gear like the smooth and gentle LA2A optical compressor and the ultra-responsive 1176 FET compressor. Finally, we’re taking you to all-out nerd territory with Peak, RMS, VCA, and Dual compression, and an onboard Expander circuit… the Atlas has it all and does it well.

OPTICAL RACK
The Optical Rack compressor engine is based on the legendary LA2A studio opto compressors from the early 60s. Optical compression controls its output level with light. Increasing the incoming audio level in the original units caused an electro luminescent panel to shine brighter. A photo resistor monitors that light panel and decreased the audio output level, as the panel got brighter. The result is a very smooth and gentle attack that imparts a full-bodied and natural sound on guitar, bass, or vocal. This compressor sounds great with clean strummed or arpeggiated guitar lines as well as acoustic guitars.

STUDIO 76
The Studio 76 compressor is based on the 1176 studio rack compressors of the late 60s and early 70s. This solid state FET compressor is known for its full body and super-fast attack. All of the attack times in 1176 compressors clock in at less than a millisecond. Studio 76 is a great compressor for fast and aggressive country pickin’ (think Johnny Hiland), slap bass, slide guitar and much more.

CUBIC ZIRCONIA
The Cubic Zirconia was inspired by opto compressors that use an LED in place of the LA2A’s electro luminescent panel. This technology is usually what you find inside effects pedals. Using an LED as an optical compressor’s light source creates faster attack and release times, which generate artifacts that tend to make the compression sound a bit dirtier. This is a great sound for playing tight and funky riffs on the guitar.

STUDIO SNAP
A very aggressive and modern sounding compressor. It's based on hard-knee, VCA feed forward type compressor. It uses two compressors in parallel to handle both RMS level controls (“Root Mean Square” compression means that the compressor will react according to the “average loudness”) AND the peaks. The combination of these two compression approaches gives STUDIO SNAP its character.

DUAL BAND
The Atlas has two independent compressors that can be routed in a number of different ways. They can run in Series Mode (one running into another). They can also run in Parallel Mode and be mixed together with a Crossfade control. The Dual Band compressor runs in Band Split Mode, which is a version of parallel routing where one compressor controls only the higher frequencies (everything above 333Hz) and the other controls the lower frequencies (everything below 333Hz). With the Dual Band Compressor the high frequencies release faster than the lower frequencies, so as you sustain a chord the low frequencies remain compressed while the second compressor releases the high frequencies. The result is a beautiful blooming effect that accentuates high harmonics. This is a great compressor for slow ringing chords or lead lines with long sustained notes.

Elite engineering cannot be rushed...
"Offering up a deep library of compression options in a pedal is a landmark technical achievement. We started working on compression in 2007. At the time we developed some straightforward, high-end studio stuff that made it into the original Multiwave a year later. The research project to branch out and cover more simple classic pedal sounds and create a dedicated compression pedal was delayed, because the intricacies of how transistors behave in compression circuits was especially elusive. After ten years of additional research, new thinking, and more experience, we are finally ready to launch a landmark pedal: The Atlas Compressor. From classic rack studio units, to classic pedals of many flavors, and even to the experience of high-end computer plug-ins, Atlas covers all the bases with attention to detail that is the hallmark of our development team. Bob Chidlaw, Jesse Remignanti, and Christopher Venter worked long and hard on this one and I'm excited to finally share it with the rest of the world."

Features

6 Types of Compression: The Atlas offers many different styles of compression with sounds inspired by studio rack gear and classic effects pedals.
LA2A Optical Compression: A faithful recreation of an electro luminescent panel combined with a photo resistor and the resulting warm and smooth compression that has been the standard in studios since the 1950s.
1176 Feedback FET Compression: Based on the solid state FET compressor known for its full body and super-fast attack.
LED Optical Compressor: Inspired by pedals that work on a similar concept as the LA2A, but swap the electro luminescent panel for an LED and a quicker, dirtier response.
Dual Compressors: Use Atlas’ dual compressors in a variety of ways: in Series, Parallel, or Band Split mode, which provides a separate set of controls for both high and low frequencies.
Studio Level Compression Controls: Access all the essential compression parameters including Feedback, Ratio, Attack, Release, Makeup Gain, Mix, and Tone, either with the pedal’s knobs or the Neuro Editor.

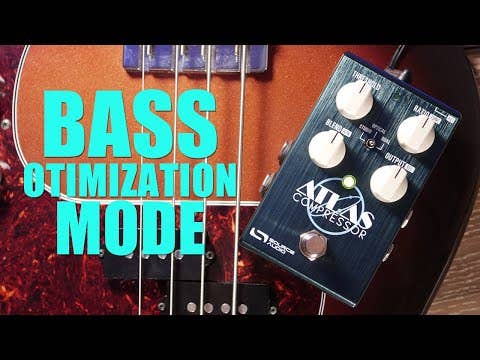

Special Bass Mode: With the push of a button, quickly convert Atlas to a special Bass Mode with compressor engines specifically optimized for bass.
Auto Makeup Gain: Dial in sounds quickly. Atlas automatically increases or decreases the Makeup Gain depending on the amount of compression.

More Information

Brand

Source Audio

Effect Category

Compressor

Model / Manufacturer ID

ATLAS

Analog / Digital

Digital

Power included?

None

Power usage (V/mA)

9v DC

Mini Size?
