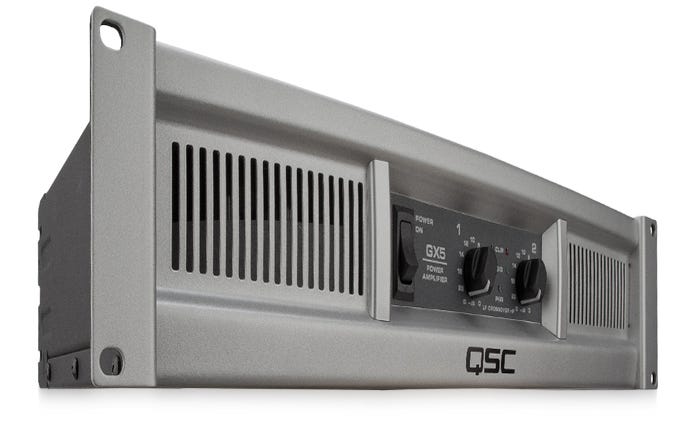

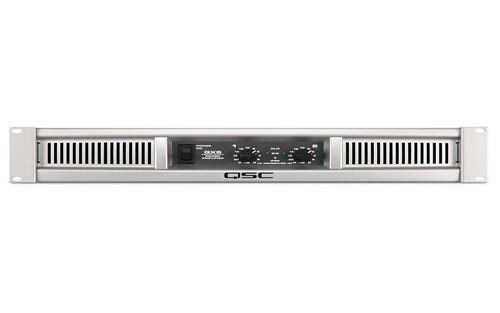

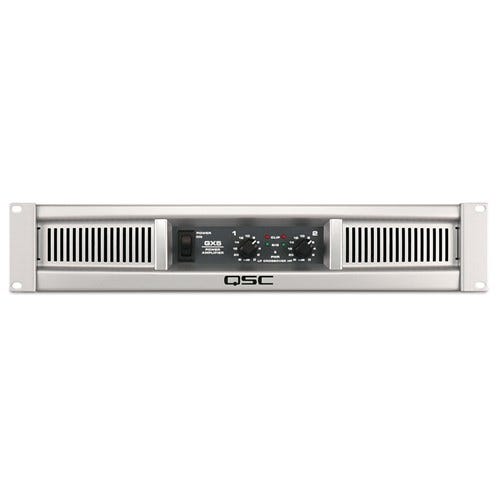

QSC GX5 GX Series Power Amplifier

QA GX5 - RRP $1,449.00
In store: None
Online: Yes
Online
$1,149.00
  • MasterCard
  • VISA
  • American Express
  • PayPal
  • Zip
  • Apple Pay

free

shipping!*
1

year warranty

Frequently Asked Questions

What are the shipping rates?

We offer free shipping on orders $100+ and under 32kg to metro areas in ACT, NSW, VIC, and QLD. If you are in a regional area we will subsidise your delivery rates. You can calculate shipping in the checkout and on product pages with your postcode.
All orders under $100 are charged at minimum $10 shipping.

Basic vs Standard vs Express Shipping

Express 1-5 days.
Standard 2-10 days.
Basic 4-10 days.
Our shipping platform will automatically determine and display the Express or Standard shipping options that are available to you.
Delivery times are determined by how far you are away from our store in Canberra.
If Express is not displaying, you're either located too far away from our store in Canberra, or the Standard shipping option will get it to you just as fast for the same price.

What payment methods do you offer?

We offer secure checkout options like Visa, Mastercard, PayPal, Zip Pay and Bank Deposit.
American Express payments are also accepted, although most AmEx transactions will require manual authorization after payment (Someone from the team will contact you to confirm the transaction after checkout)

Can I cancel my order?

If you need to cancel your order it is best to give our online team a call on (02) 6282 3199
On weekends our online team may not be operating. Either give us a call Monday morning or reply to your order email and we will get back to you asap.

Need Assistance?

Feel free to contact us by phone, email or chat

  • (02) 6282 3199
  • Talk to our experts on live chat
  • 18 Salamander Court, Phillip 2606, ACT
  • Map
  • Premium toroidal power transformers ensure reliability
  • Variable-speed fan maintains optimal cooling
  • GuardRail protection prevents overload and distortion
  • Subwoofer crossover switch enhances audio performance
  • Inputs: XLR, 1/4'' TRS, phono for compatibility
  • Outputs: Speakon, 1/4'', binding posts for flexibility
  • Lightweight design fits compact effects racks
  • Front panel LEDs monitor power, signal, and clipping

Both amplifiers use premium toroidal power transformers for reliable "mid-weight" performance. A variable-speed fan moves air crosswise through the amplifier, drawing cool air in over the power transformer, through the fan, and then over the heat sink. This keeps the transformer cool and allows a full size heat sink to fit in a down-sized chassis.

GX amplifiers deliver just the right amount of power to the most popular speakers used by entertainers. Typically, loudspeaker manufacturers recommend an amplifier with power output equal to the speaker's Program (Music) Power rating or two times (2 x) the Continuous (RMS) Power rating.

GuardRail protection delivers full peak power while preventing detrimental overloads. During excessive clipping, or extreme overheating, GuardRail reduces gain just enough to preserve the integrity of the music, protect the speakers and keep the audience excited, without unprofessional distortion levels or shutdowns.

A subwoofer reduces strain on the full-range speaker, allowing it to play louder, or letting a smaller speaker do the same job. The GX Series supports this mode with a Crossover switch that splits the full-range input entering Ch 1, sending 20 Hz -100 Hz to the sub (Ch 1) and 100 Hz - 20 kHz to the top box (Ch 2). The front panel gain controls balance the sub and top box, while GuardRail optimizes peak power into the sub and top individually, for greater musical impact and dynamic range. GuardRail optimizes peak power into the sub and top individually, for greater musical impact and dynamic range.

Features

  • Power levels matched to the most popular speakers used by entertainers
  • Optimized for maximum real-world headroom into 4 ohm and 8 ohm speaker systems
  • Inputs: XLR, 1/4" TRS and phono input connectors for compatibility with any source
  • Outputs: Speakon® combo accepts, 1/4" (TS) plugs or Speakon 2-pole and 4-pole plugs (connects two poles only). Binding posts support all other speaker wiring systems
  • Minimum depth chassis (10.1" / 257 mm) fits in compact, inexpensive effects racks
  • Lightweight - GX3 and GX5 less than 26 lb (12.5 kg). GX7 only 15.5 lb (7 kg)*
  • Detented gain controls for precise setting and matching of sensitivity
  • GuardRail™ automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
  • Front panel LEDs monitor power, signal and clipping
  • Subwoofer/satellite crossover built-in

SPECIFICATIONS

  • 8 ohms / 1 kHz (both channels driven) 500 W
  • 8 ohms / 1 kHz (single channel driven) 600 W
  • 4 ohms / 1 kHz (both channels driven) 700 W
  • 4 ohms / 1 kHz (single channel driven) 850 W
  • Distortion (1 dB below rated power, 1 kHz) 8 ohms: less than 0.02 4 ohms: less than 0.05%
  • Signal to Noise (20 Hz - 20 kHz) 100 dB
  • Input Sensitivity 1.2 V rms
  • Voltage Gain 34.4 dB
  • Output Circuitry 2-tier Class H
  • Power Requirements (1/8 power, pink noise at 4 ohms, 120V) 6 A
  • Frequency Response 20 Hz–20 kHz, +0, -1 dB
  • Dynamic Headroom (4 ohms) 2 dB
  • Input Impedance Greater than 20 kΩ (balanced)
  • Maximum Input Level +24 dBu (16 V rms)

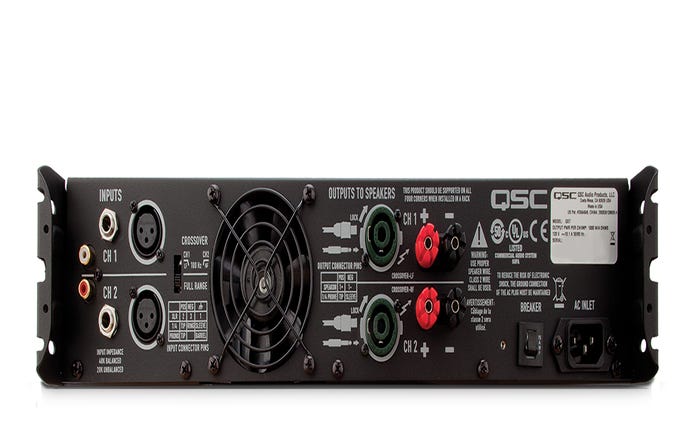

  • Input Connectors (each channel) 3-pin XLR and 1/4" TRS, balanced, parallel
  • Phono, unbalanced
  • Output Connectors (each channel) Speakon®, 1/4", Binding posts
  • Amplifier and Load Protection Short circuit, open circuit, thermal, RF protection
  • Load protected against DC faults
  • Front Panel Controls and Indicators Gain controls, 21 detents
  • Red CLIP LEDs, proportional, 0.1% THD threshold
  • Green SIGNAL LEDs, threshold 35 dB below clipping
  • Blue POWER LED, AC on
  • Rear Panel Controls Full Range / Crossover switch
  • 100 Hz, 3rd order LP (sub), 2nd order HP (top)
  • Dimensions Height: 89 mm 2RU
  • Width: 483 mm
  • Depth: 257 mm
  • Weight Net: 12.6 kg
