Mesa Boogie Clearlink Send Line Driver/Buffer

8600162 - RRP $379.00
In store: None
Online: None
Available to Order
$379.00
  • MasterCard
  • VISA
  • American Express
  • PayPal
  • Zip
  • Apple Pay

free

shipping!*
1

year warranty

Frequently Asked Questions

What are the shipping rates?

We offer free shipping on orders $100+ and under 32kg to metro areas in ACT, NSW, VIC, and QLD. If you are in a regional area we will subsidise your delivery rates. You can calculate shipping in the checkout and on product pages with your postcode.
All orders under $100 are charged at minimum $10 shipping.

Basic vs Standard vs Express Shipping

Express 1-5 days.
Standard 2-10 days.
Basic 4-10 days.
Our shipping platform will automatically determine and display the Express or Standard shipping options that are available to you.
Delivery times are determined by how far you are away from our store in Canberra.
If Express is not displaying, you're either located too far away from our store in Canberra, or the Standard shipping option will get it to you just as fast for the same price.

What payment methods do you offer?

We offer secure checkout options like Visa, Mastercard, PayPal, Zip Pay and Bank Deposit.
American Express payments are also accepted, although most AmEx transactions will require manual authorization after payment (Someone from the team will contact you to confirm the transaction after checkout)

Can I cancel my order?

If you need to cancel your order it is best to give our online team a call on (02) 6282 3199
On weekends our online team may not be operating. Either give us a call Monday morning or reply to your order email and we will get back to you asap.

Need Assistance?

Feel free to contact us by phone, email or chat

  • (02) 6282 3199
  • Talk to our experts on live chat
  • 18 Salamander Court, Phillip 2606, ACT
  • Map
  1. Analog / Digital: Analog
  2. Power included?: None
  3. Power usage (V/mA): 9v DC, 10mA
  • Compensates tone loss in long cable runs
  • High-quality buffer with +12dB output gain
  • Drives cable runs up to 100m without degradation
  • Supports both balanced and unbalanced signals
  • Features standard 3-pin XLR or ¼” TRS output
  • Analog design for pure signal integrity
  • Compact size at 98 x 63 x 44 mm, 193 g

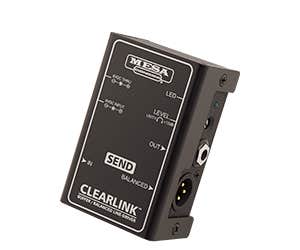

The CLEARLINK™ (SEND) LINE DRIVER is designed to compensate for losses in Tone due to increased capacitance in long cable runs. With a high quality buffer and +12dB of available output gain, it has the ability to drive cable runs of up to 330 Ft./100M before noticeable degradation, when added in-line on the feed from Pedal Board to Amplifier. When combined with a STOWAWAY™ INPUT BUFFER on the Instrument, the CLEARLINK SEND forms an “Effects Loop” for the Instrument-Pedal Board-Amp signal chain that will reclaim the integrity of your sound through boosted levels and buffering or impedance matching. Whether used by itself, or with the STOWAWAY as a comprehensive “Front End” solution, it will provide the needed “stable impedance source” to ensure the pieces in your rig “communicate” well. It can be used for balanced signals via two different output jacks; standard 3-pin XLR or ¼” TRS. It also supports unbalanced signals via the standard ¼” mono jack. If you’re going to send your signal on a marathon, make sure you have a clear link to communicate… because you don’t want your Tone lost in translation.

SPECIFICATIONS
Input Impedance: 1M Ohm
Output Impedance: 150 Ohm Unbalanced / 300 Ohm Balanced
Output Buffer Design: High-Speed, Low Noise Op-Amp
Nominal Operating Voltage: 9VDC
Maximum Operating Voltage: 12VDC
Typical Current Draw: 10mA @ 9VDC
DC Adapter (not included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm Barrel Plug
Weight: 0.425 lbs (193 g)
Dimensions (W x D x H): 3.86 x 2.48 x 1.71 inch (98 x 63 x 44 mm)
NOTE: Due to efforts for continual improvement, all specifications are subject to change without notice.

More Information
Country of Manufacture United States
Brand Mesa Boogie
Effect Category Buffer
Model / Manufacturer ID Clearlink
Analog / Digital Analog
Power included? None
Power usage (V/mA) 9v DC, 10mA
Mini Size? No
