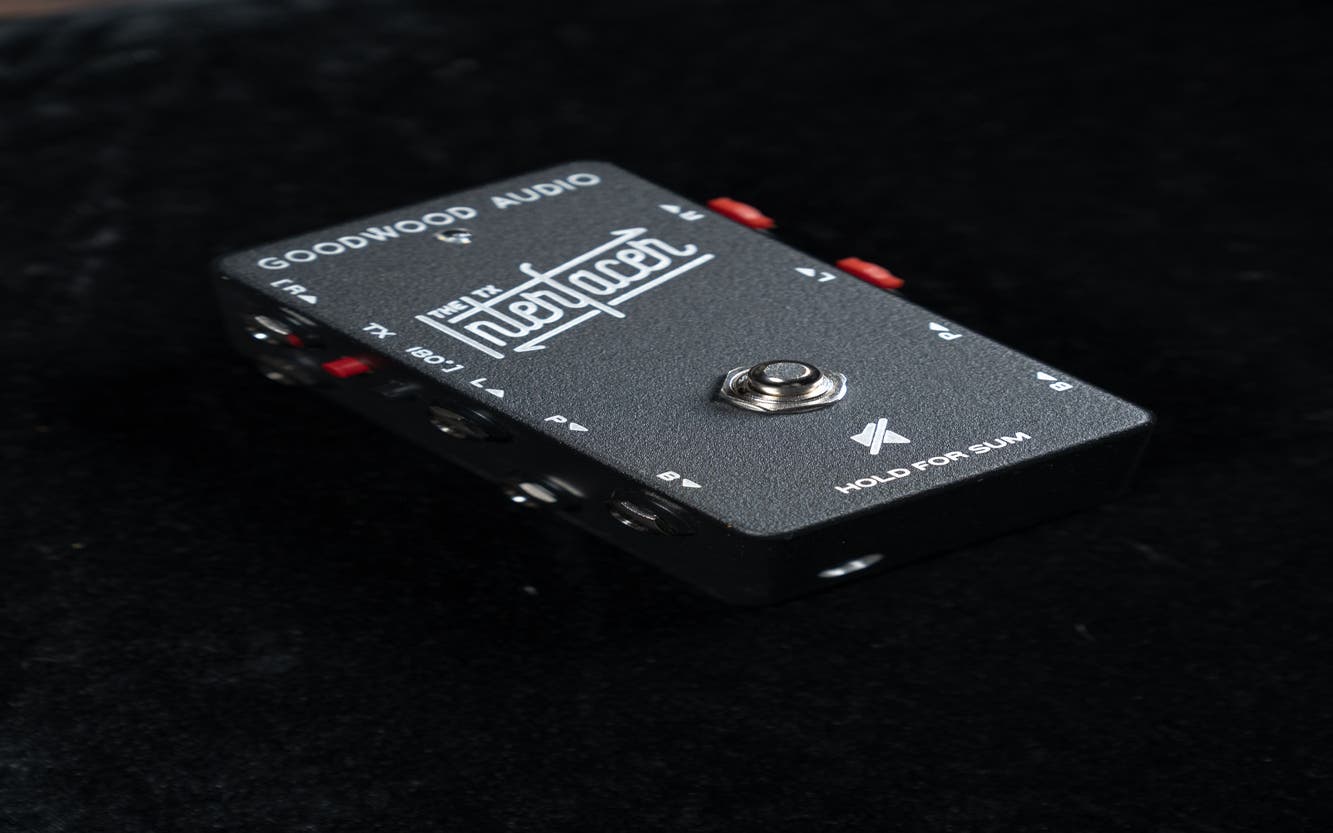

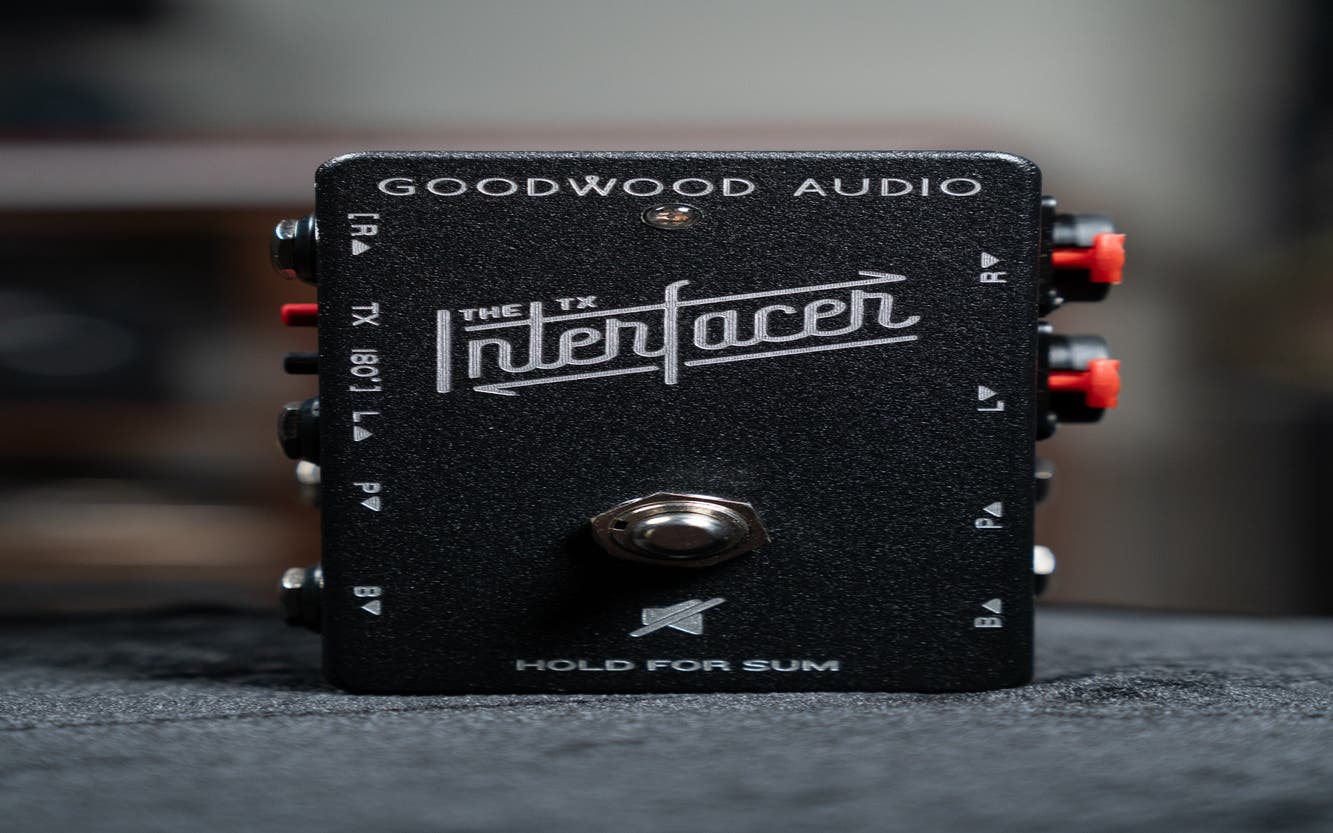

Goodwood Audio TX Interfacer Pedal

TXINTERFACER - RRP $425.00
In store: 5+
Online: Yes
In-Store
Special Price $299.00 Regular Price $349.00
  • MasterCard
  • VISA
  • American Express
  • PayPal
  • Zip
  • Apple Pay

free

shipping!*
1

year warranty

Frequently Asked Questions

What are the shipping rates?

We offer free shipping on most items to metro areas in ACT, NSW, VIC, and QLD. If you are in a regional area we do offer great shipping rates, though it is often too expensive for us to offer free shipping. You can calculate shipping costs in the checkout and on item pages with your postcode.
Orders under $50 incur a minimum order fee to cover shipping.

Standard vs Express Shipping

Our shipping platform will automatically determine and display the Express or Standard shipping options that are available to you. If Express is not displaying, you're either located too far away from our store in Canberra, or the Standard shipping option will get it to you just as fast for the same price. Express shipping is 1-5 days, Standard 2-10 days depending on how far you are away from our store in Canberra.

What payment methods do you offer?

We offer secure checkout options like Visa, Mastercard, PayPal, Zip Pay and Bank Deposit.
American Express payments are also accepted, although most AmEx transactions will require manual authorization after payment (Someone from the team will contact you to confirm the transaction after checkout)

What payment methods do you offer?

We offer secure checkout options like Visa, Mastercard, PayPal, Zip Pay and Bank Deposit.
American Express payments are also accepted, although most AmEx transactions will require manual authorization after payment (Someone from the team will contact you to confirm the transaction after checkout)

Can I cancel my order?

If you need to cancel your order it is best to give our online team a call on (02) 6282 3199
On weekends our online team may not be operating. Either give us a call monday morning or reply to your order email and we will endeavour to stop goods leaving the store.

Need Assistance?

Feel free to contact us by phone, email or chat

  • (02) 6282 3199
  • Talk to our experts on live chat
  • 18 Salamander Court, Phillip 2606, ACT
  • Map
  1. Analog / Digital: Analog
  2. Power included?: None
  3. Power usage (V/mA): 9vDC 100mA

Input and output buffers | Two types of summing | Master mute | Tuner send

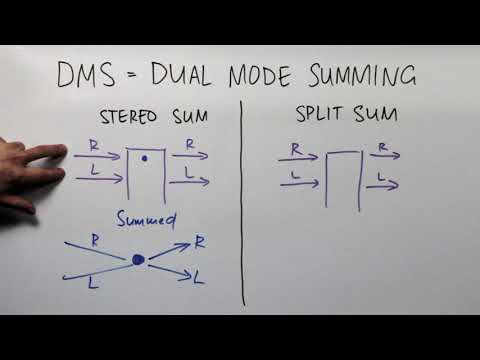

Summing

The TX Interfacer has two types of summing: Stereo Sum and Split Sum. To access these two modes, use the internal DIP switch to select which mode is best for you.

  • Stereo Sum – This is the default mode The TX Interfacer ships with. In this mode use stereo effects as normal. When summed, the left and right inputs are merged and the exact same signal is sent to the left and right outputs.
  • Split sum – Still use stereo effects as normal. When summed, the right input is ignored and the left input is split to both left and right outputs.

The TX Interfacer comes with ground lift and phase correction for players that want to run more than one amp.

  • Ground Lift – There are times when two amps are being used that an audible hum/buzz can be heard coming out of your amps. When plugged into one amp only, the hum/buzz is not present. This is commonly referred to as a ground loop. This happens when there is more than one path to earth. To safely fix this common problem, a transformer is needed to isolate your second amp and create one path to ground. Push the red ground lift button to isolate your right amp from your left.
  • Phase Correction – Another common issue when running two amps is phase cancellation. Some amps are in phase in relation to each other and other amps are not. When amps are out of phase with each other they are cancelling each other out. This is most noticeable in the lower frequencies. Normally this would mean you can’t use those amps together. With the black phase correction button you can now put two amps that were out of phase, back in phase and working together. To access this, turn on the transformer (red button) and flip the phase (black button).

Master Mute

Hit the foot switch on The TX Interfacer to mute your signal before it reaches your amps. No matter what craziness is happening on your board, the master mute has the final say on what does or doesn’t get sent to your amp.

Inputs

There are two inputs on The TX Interfacer; a moveable buffered input and a passive input.

  • Passive Input – Best to use if you have effects on your board such as a vintage wah or fuzz that don’t quite sound the same with a buffer before them. After your last fuzz or wah pedal you can then plug into the buffered input of The Interfacer to make use of the buffer and dedicated tuner output. The passive input can also be used for off-board expression pedals and tap tempo. Permanently connect either a TS or TRS cable from the passive send to a pedal that can receive expression or tap control and then patch an expression or tap pedal into the passive input.
  • Moveable Buffered Input – The buffered input can be moved anywhere in your mono signal chain. Simply plug into the passive input, put all the pedals want you want before your buffer here. After the last pre-buffer pedal, plug into the buffered input to make use of the buffer and always on tuner output.

All Interfacers are made with high quality, durable components.

IMPORTANT – Use only 9vDC centre negative plug to power! 100mA
Dimensions including all jacks and switches are: 127mm long x 77mm wide x 73mm high.

More Information
Country of Manufacture Australia
Brand Goodwood Audio
Effect Category Switching
Model / Manufacturer ID TX Interfacer
Analog / Digital Analog
Power included? None
Power usage (V/mA) 9vDC 100mA
Mini Size? No
