Name: Earthquaker Devices Aurelius Tri-Voice Chorus Pedal
Brand: EarthQuaker Devices
SKU: EQD-M00010060
Price: 359.00 AUD
Availability: InStock

Frequently Asked Questions

What are the shipping rates?

We offer free shipping on most items to metro areas in ACT, NSW, VIC, and QLD. If you are in a regional area we do offer great shipping rates, though it is often too expensive for us to offer free shipping. You can calculate shipping costs in the checkout and on item pages with your postcode.
Orders under $50 incur a minimum order fee to cover shipping.

Standard vs Express Shipping

Our shipping platform will automatically determine and display the Express or Standard shipping options that are available to you. If Express is not displaying, you're either located too far away from our store in Canberra, or the Standard shipping option will get it to you just as fast for the same price. Express shipping is 1-5 days, Standard 2-10 days depending on how far you are away from our store in Canberra.

What payment methods do you offer?

We offer secure checkout options like Visa, Mastercard, PayPal, Zip Pay and Bank Deposit.
American Express payments are also accepted, although most AmEx transactions will require manual authorization after payment (Someone from the team will contact you to confirm the transaction after checkout)

What payment methods do you offer?

Can I cancel my order?

If you need to cancel your order it is best to give our online team a call on (02) 6282 3199
On weekends our online team may not be operating. Either give us a call monday morning or reply to your order email and we will endeavour to stop goods leaving the store.

Welcome, fellow frequency chaser! Kudos to you for referring to the official manual of this majestic Device rather than diving into its powers blindly. Or equally likely, traveling down a YouTube pedal demo rabbit hole where you eventually find yourself watching a tutorial on how to make gnocchi from scratch at 3am. We can tell you’re a true tone aficionado, which is why we’re going to be straight with you: you’re about to embark on a magical journey with this mighty Aurelius™ pedal in front of you.

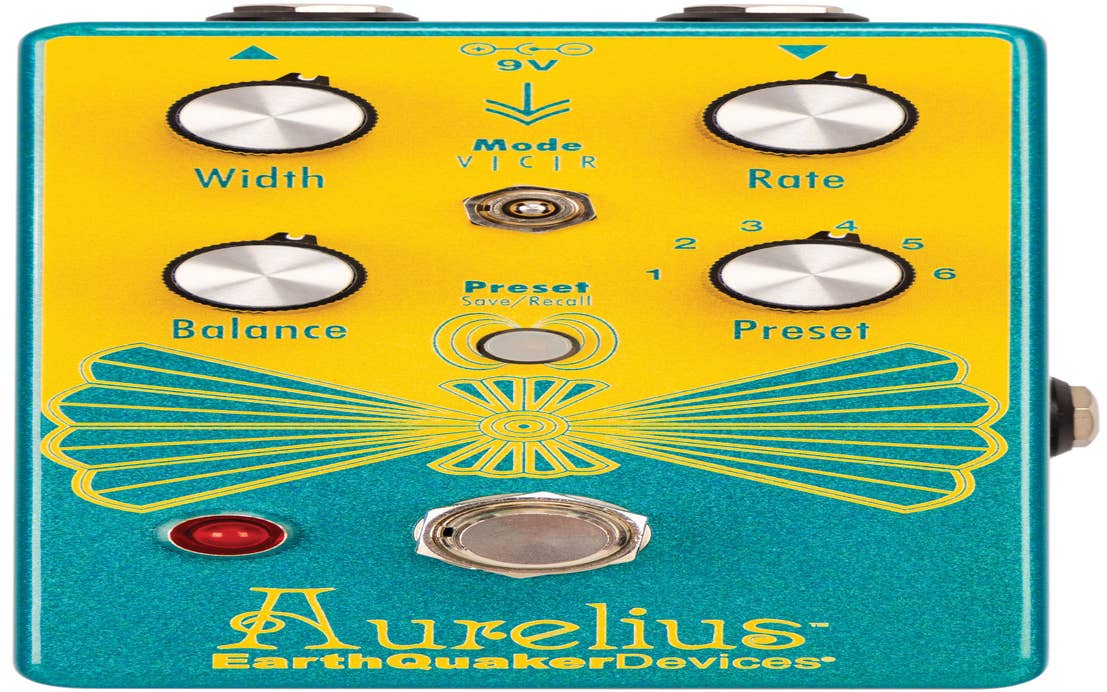

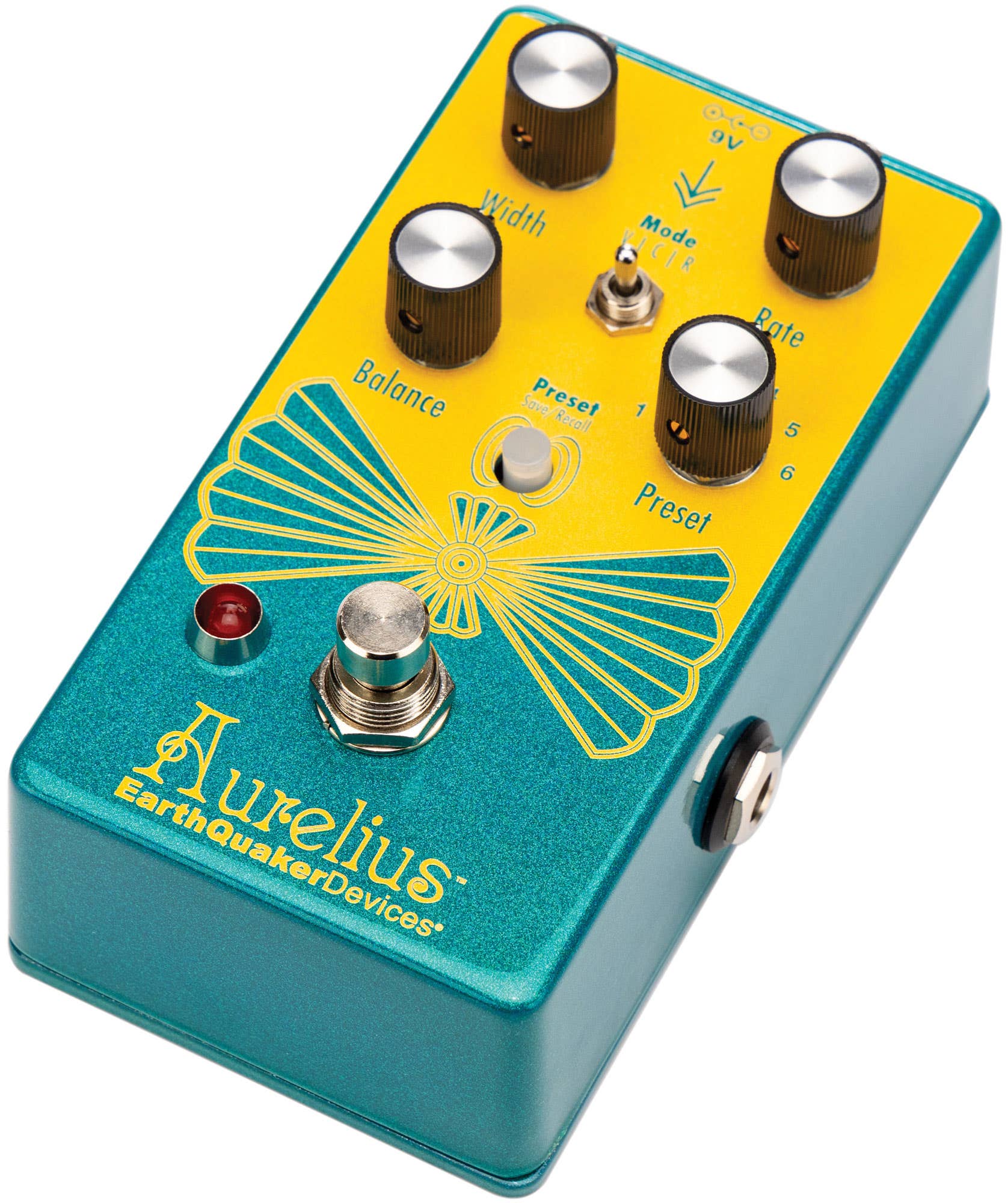

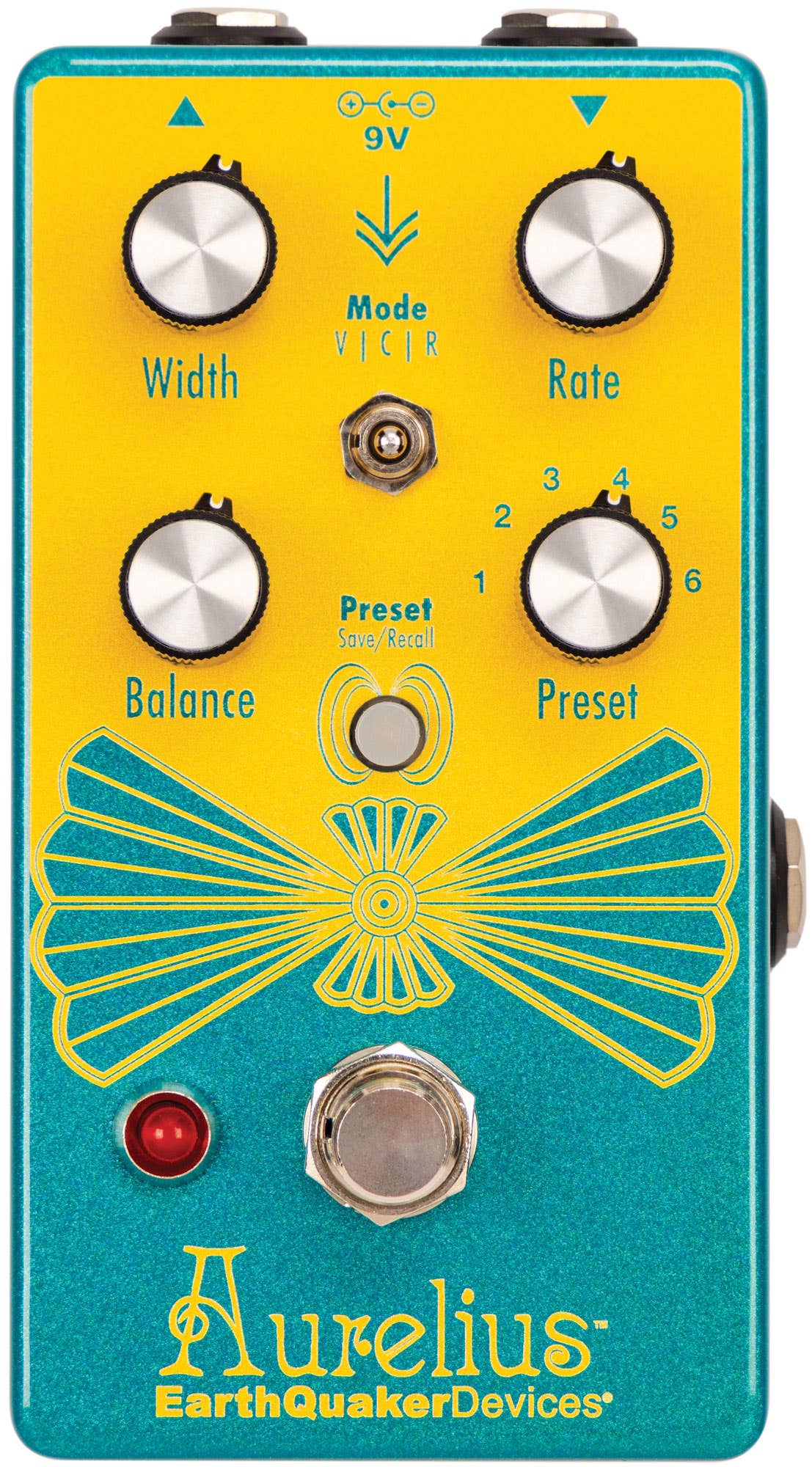

You see, this is not simply your run of the mill chorus pedal. This compact, beautifully cased wonder is a three-mode chorus with six programmable presets and an expression control. Choose from Vibrato (V) Mode, Chorus (C) Mode, and Rotary (R) Mode and manipulate their Width, Rate, and Balance to achieve your ideal sound. Shift seamlessly from one mode to another to cop a blend that is all your own. Just one simple tap of the Preset (“Save/Recall”) switch and you can summon up to six settings of your choosing at will. Feeling pretty powerful now, aren’t you?

Inspired by the 1970s CE-1 Chorus Ensemble pedal, this digital unit has been tirelessly tweaked and fine-tuned to give you an all-encompassing chorus and vibrato experience like nothing else. We even took it way back to the 1940s and the advent of the Leslie speaker to boldly capture the sound of its rotating baffle system for the Rotary mode. We studied the way that the horn and the rotor moved on Leslie speakers and emulated the phasing and speeds of the low frequency oscillator, but we exaggerated the hell out of them to make it sonically suitable for guitar, bass or your instrument of choice.

And by popular demand, like many of our pedals, we’ve equipped this with an expression control so you can use any TRS expression pedal to manipulate the Width, Rate or Balance. Put it in the Vibrato mode and you’ll have a really subtle chorus with a seasick vibrato and alternate quickly between the two seamlessly. And that’s only just one mode. The possibilities are endless. Think about it.

This compact world of chorus in a box will fit on any pedalboard and is so intuitive and easy to use that you most likely won’t have to refer to this manual ever again. So, if we don’t see you back here, it’s been a pleasure and good luck with the gnocchi.

Each and every Aurelius is hand crafted in Akron, Ohio, USA and is inspected by the spirit of speaker innovator Donald Leslie.

Mode V: Chorus/Vibrato

This mode is a familiar traditional chorus type effect that leans towards vibrato with a triangle LFO modulating a short delay line. When the Balance control is turned fully clockwise, the dry signal is removed and the effect becomes a pitch vibrato.

Controls

Width: Controls the amplitude of the LFO and determines how wide the pitch modulation will sweep.

Rate: Adjusts the speed of the LFO.

Balance: In Mode V, the Balance control adjusts the amount of pitch modulation that is blended in with the dry signal. When the Balance control is turned fully clockwise, the dry signal is removed and the effect becomes a pitch vibrato.

Mode C: Chorus/Flanger

Mode C is a blend of chorus and flanger. It has more warmth and slower rates than Mode V and uses a sine wave LFO to modulate the delay line. The Width control plays a major role in this mode and determines which type of modulation is more prominent.

Controls

Width: Controls the amplitude of the LFO and determines how wide the pitch modulation will sweep. Higher Width settings have a more pronounced Flanging effect. When the Width control is turned past the center point, feedback is gradually added and makes the flanging effect more prominent.

Rate: Controls the speed of the LFO.

Balance: In Mode C, the Balance control adjusts the level of the modulated signal. Turn clockwise for a more pronounced effect.

Mode R: Rotary Chorus

Mode R is a rotary chorus effect modeled after the sound of a Leslie speaker cabinet. This effect combines both amplitude and frequency modulation for a doppler effect.

Controls

Width: Controls the amplitude of the LFO and determines how wide the pitch modulation will sweep. Lower settings accentuate the lower “woofer” frequencies and higher settings accentuate the upper “horn” frequencies.

Rate: Controls the speed of the LFO.

Balance: In Mode R, the Balance control adjusts the wet/dry balance of the signal. Turn clockwise for a more pronounced and pulsing sub frequency effect.

Global Features

Aurelius has two operating modes which are indicated by the color of the Save/Recall switch LED.

Green = Live Mode

In Live Mode, the pedal will operate exactly where the controls are set and any changes will

have no effect on the presets unless saved. The Save/Recall switch LED will stay static green.

Red = Preset Mode

In Preset Mode, stored presets are selected using the Preset switch, and the physical settings of the controls will be ignored. The Save/Recall switch LED will stay static red.

Aurelius comes factory set to start up in Live Mode.

Presets

Aurelius has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the Mode switch and the expression jack assignment can be saved and recalled in any of the slots.

Saving a preset:

Turn the Preset rotary switch to the desired location you wish to save your preset.

Dial in the settings you want to save. Remember; expression pedal assignment and the selected Mode can also be saved!

Hold the Save/Recall switch down until the LED flashes between green and red and then release.

Your preset is now saved!

Recalling a preset:

Select the desired preset you wish to use with the Preset selector switch and do one of the two following actions:

When the pedal is activated and the effect is in use, hold down the foot switch for at least 0.75 seconds, and it will switch from Live Mode to Preset Mode. You can switch between Live and Preset mode on the fly!
Or:

Tap the lighted Save/Recall switch. The switch LED will turn from green to red, indicating you are now in preset mode. Tap again and the switch LED will turn from red to green indicating you are in live mode.

Editing/Overwriting a preset:

Once in Preset Mode (the lighted Save/Recall switch LED will be red), make the desired changes to any of the controls in the selected preset. The Save/Recall switch LED will begin to flash red, indicating a change has been made to the stored preset. Any controls that are not changed will remain as previously saved.

Hold the Save/Recall switch down until the LED flashes between green and red and then release.

The Save/Recall switch LED will return to static red and the previous preset has been overwritten.

Helpful preset tips:

· Different EXP assignments can be saved in each preset!

· Presets can be stored and overwritten when Aurelius is in Live or Preset Mode.

· To make changes to an existing preset, you must first be in Preset Mode before making the desired changes.

· There is no undo for preset saving, so make sure you are not overwriting your favorite sound, especially when you are saving presets from Live Mode!

Expression control

Use any TRS expression pedal to take control over the Width, Rate or Balance! Aurelius ships with the EXP jack mapped to the Rate. Follow these steps to reassign the EXP functionality:

1. Insert the expression pedal TRS plug into the EXP jack.

2. Place the expression pedal in the toe down position.

3. Turn the panel control on the Aurelius that you wish to put under control of the expression pedal. It doesn’t matter how far or which direction you turn the control.

4. Put the expression pedal in the heel down position.

5. This control is now assigned to the EXP jack and can be used with an expression pedal!

Helpful Expression assignment tips:

· If you turn the panel control that is assigned to the EXP jack while the expression pedal is plugged in, the panel control will override the expression pedal setting. The expression pedal will reassume control the next time it is used.

· Different EXP assignments can be saved in each preset.

· You can also use Control Voltage with the EXP Jack! The CV range is 0 to 3.3v.

TRS expression pedal wiring:

Tip: Wiper
Ring: +3.3V

Sleeve: Ground

Flexi-Switch® Technology

This device features Flexi-Switch Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching-style switching.

· For standard latching operation: Tap the footswitch once to activate the effect and then tap again to bypass.

· For momentary operation: With the effect off, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch, the effect will be bypassed.

Note: holding the bypass switch down while Aurelius is activated will switch into the selected Preset Mode!

Since the switching is relay-based, it requires power to pass signal.

Power Requirements

Current Draw: 75 mA

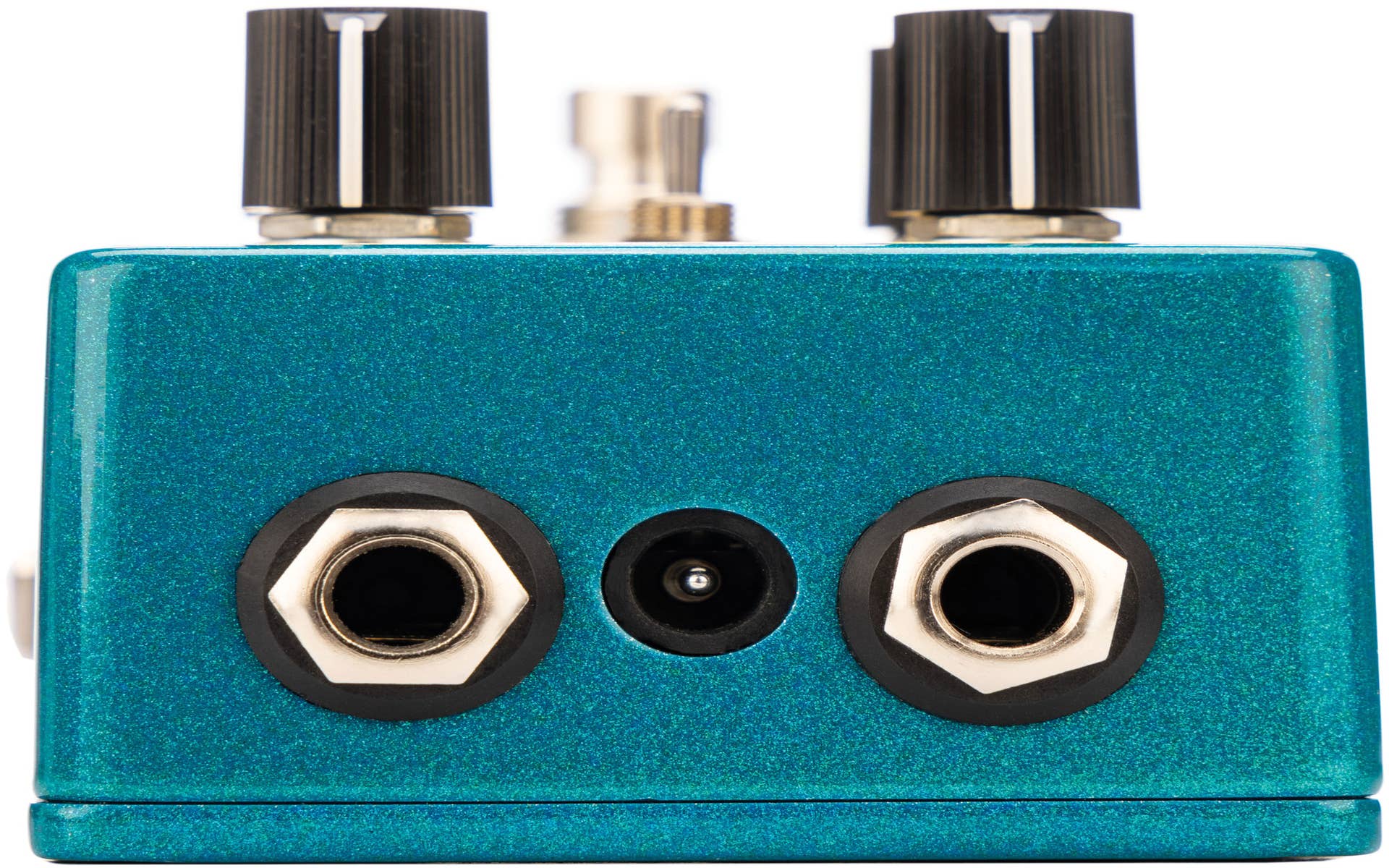

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We recommend using a pedal-specific, transformer-isolated, wall-wart power supply or a power supply with multiple isolated-outputs. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not always filter dirty power and may result in unwanted noise.

DO NOT RUN AT HIGHER VOLTAGES! You have been warned.

Tech Specs

Input Impedance: 500 kΩ

Output Impedance: 100 Ω

More Information

Country of Manufacture

United States

Brand

EarthQuaker Devices

Effect Category

Chorus

Model / Manufacturer ID

Aurelius

Analog / Digital

Digital

Power included?

None

Power usage (V/mA)

9v DC

Mini Size?
