Roland FC-300 MIDI Foot Controller (FC300)
Roland FC-300 MIDI Foot Controller (FC300)

Roland FC-300 MIDI Foot Controller (FC300)

Product code: FC300
RRP $939.00
$849.00
Add to list
Price Match
2 Year Warranty
Delivery
Calculate shipping
In-Store
Loading...
Online
Backorder
Highlights

  • Bi-directional MIDI data flow with RRC2 protocol
  • Twin expression pedals for versatile control
  • Stores up to 100 MIDI setups in Patch Mode
  • Advanced connectivity with LAN and RRC2
  • Programmable switch-jacks for amp control
  • Rock-solid metal construction for stage use
  • High contrast LCD for easy readability on stage
Payment Options

Fees apply

More info

4 payments of $212.25

No fees

More info

6 months min.

More info
Apply Now

Accessories

Description

 A new standard of power, versatility and innovation for MIDI foot control including bi-directional MIDI data flow to VG-99, patch memory recall, twin expression and control pedals and more.

Features

The FC-300 sets a new standard of power, versatility and innovation for MIDI foot control. With features such as bi-directional MIDI data flow to the Roland VG-99 via newly adopted RRC2, patch memory recall, twin expression and control pedals and more, this advanced control station is a perfect companion for Roland’s new VG-99 V-Guitar System or any other performance-based MIDI instrument or device.

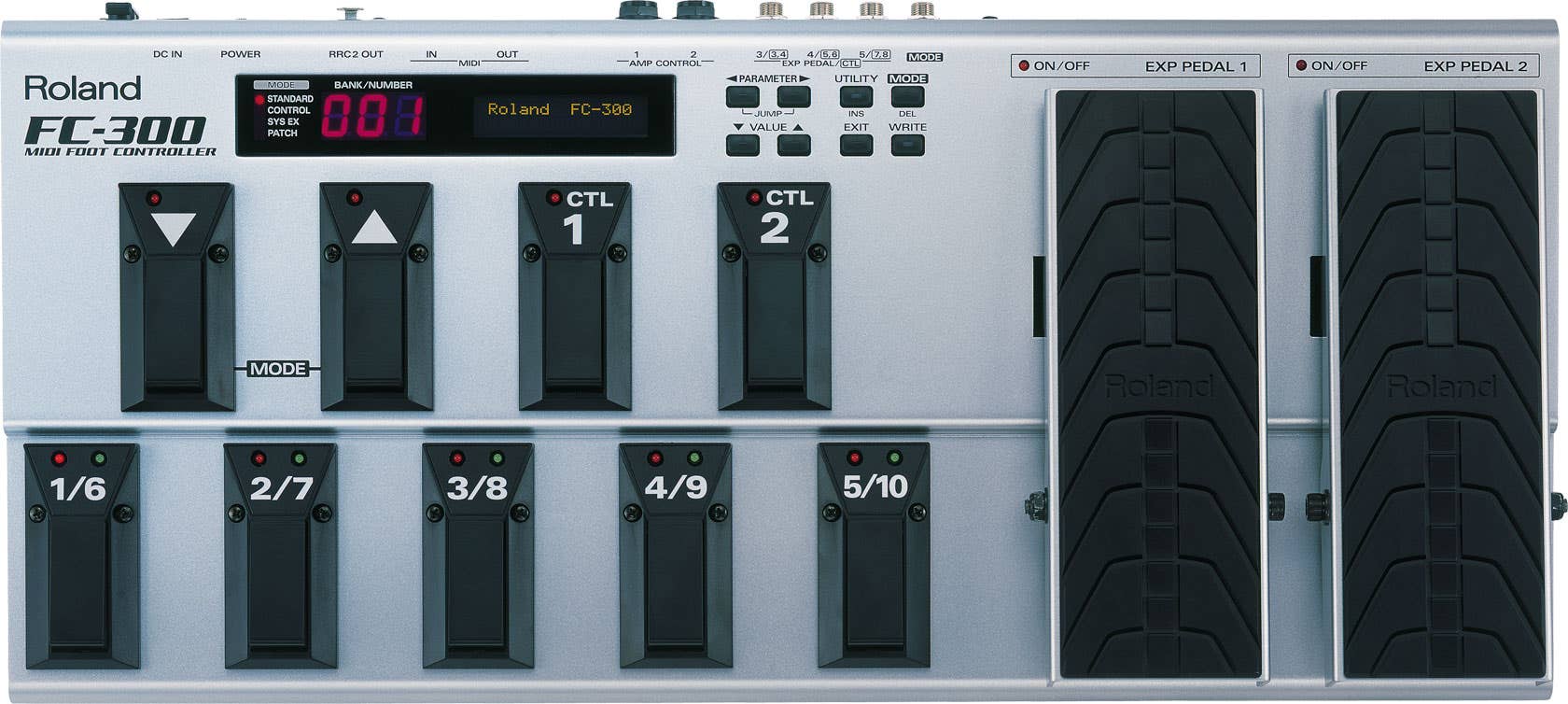

  • Advanced MIDI foot controller with two assignable expression pedals, two control pedals, nine footswitches and expandability
  • New Patch Mode stores up to 100 MIDI setups
  • In addition to standard MIDI connection, newly developed RRC2 protocol adapted for bidirectional data flow between FC-300 and Roland RRC2-equipped products
  • 3-way power supply and rock-solid metal construction for stage use
  • Two Amp Control switches for controlling amp channels or effects
  • Perfect companion for the new VG-99

Control & Expression
The FC-300 is outfitted with nine industrial-grade footswitches and two programmable expression pedals for fast, easy control and expanded performance capabilities. The backlit LCD offers a high contrast view of patch names (when used with VG-99) and other important data, even in the darkest stage environments.

Power Patches
Up to 100 sets of MIDI messages/parameters can be stored simultaneously in the FC-300 as patches. Complex MIDI transmission is made simple thanks to the FC-300’s ability to package chunks of data together in a single patch, and then transmit each data-burst via footswitch.

Advanced Connectivity
Using commercially available LAN (Ethernet, CAT5) cable and the newly-adapted RRC2 protocol, the FC-300 provides both bidirectional MIDI transmission and electrical power supply with one simple connection between VG-99 and FC-300.

Programmable Switching
Two multipurpose switch-jacks are built into the FC-300. These programmable outputs are an ideal feature for guitarists, as they allow amp channels to be switched from clean to lead, for example, in sync with patch changes on the FC-300.

Specs

Controls Number Pedal x 5 (1/6, 2/7, 3/8, 4/9, 5/10)
DOWN/UP Pedals
Control Pedal x 2 (1, 2)
Expression Pedal x 2 (1, 2)
PARAMTER Button x 2
VALUE Button x 2
UTILITY Button
MODE Button
EXIT Button
WRITE Button
POWER Switch Display 7 segments, 3 characters (LED)
16 characters, 2 lines (backlit LCD) Indicators MODE Indicator (STANDARD/CONTROL/SYS EX/PATCH)
UTILITY Indicator
WRITE Indicator
Number Indicator x 10 (1--10)
DOWN/UP Indicators
Control Indicator x 2 (1, 2)

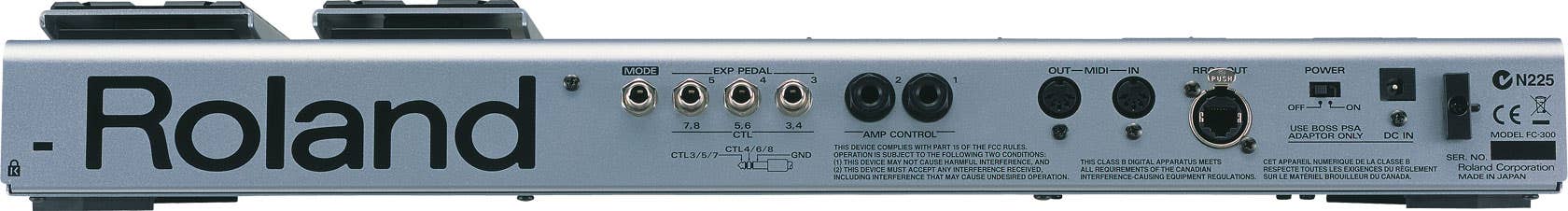

Expression Pedal ON/OFF Indicator x 2 (1, 2) Connectors/Jacks DC IN Jack
MIDI Connectors (IN, OUT)
RRC2 OUT Connector
AMP CONTROL 1 Jack
AMP CONTROL 2 Jack
EXP PEDAL 3 / CTL 3, 4 Jack
EXP PEDAL 4 / CTL 5, 6 Jack
EXP PEDAL 5 / CTL 7, 8 Jack
MODE Jack Number of PATCH (PATCH Mode) 100 Power Supply DC 9 V: AC Adaptor
Dry Batteries AA type x 6
RRC2 Current Draw 94 mA (ECONOMY MODE OFF)
61 mA (ECONOMY MODE ON)
Expected batery life under continuous use Carbon:
6.5 hours or longer (ECONOMY MODE OFF)
12 hours or longer (ECONOMY MODE ON)
* These figures will vary depending on the actual conditions of use. Accessories Owner's Manual
Dry Batteries R6 (AA) type (carbon) x 6
Roland Service Options AC Adaptor PSA serise (BOSS)
Foot Switch: FS-5U (BOSS) , FS-6 (BOSS)
Expression Pedal: EV-5, FV-500H/500L (BOSS) Size and Weight ( Dimensions ) Width 550 mm 21-11/16 inches Depth 250 mm 9-7/8 inches Height 76 mm 3 inches Weight 5.3 kg 11 lbs. 11 oz. excluding AC adaptor and including batteries *The specifications are subject to change without notice.

Assets

    Support
  • FC-300 TurboStart (PDF)
  • FC-300 Manual (PDF)
  • FC-300 Brochure (PDF)
    Downloads
  • Please read this document before you proceed with your Update." >Upgrading Your Firmware Guide
  • FC-300 System Update Version 1.02

Specifications

Brand
Roland
Country of origin
Malaysia
Warranty
2 Year
Analog/Digital
Analog
Mini
No
Effect model
FC-300
Power
None
Power usage
9v DC
Effect type
Switching
